SXWASPXXX10002 Schneider SpaceLogic AS-P-NL Advanced Building Automation Server Dual Ethernet RS-485 BACnet/IP EBO Core Controller
SXWASPXXX10002 Schneider SpaceLogic AS-P-NL Advanced Building Automation Server Dual Ethernet RS-485 BACnet/IP EBO Core Controller
SXWASPXXX10002 Schneider SpaceLogic AS-P-NL Advanced Building Automation Server Dual Ethernet RS-485 BACnet/IP EBO Core Controller
SXWASPXXX10002 Schneider SpaceLogic AS-P-NL Advanced Building Automation Server Dual Ethernet RS-485 BACnet/IP EBO Core Controller
SXWASPXXX10002 Schneider SpaceLogic AS-P-NL Advanced Building Automation Server Dual Ethernet RS-485 BACnet/IP EBO Core Controller
SXWASPXXX10002 Schneider SpaceLogic AS-P-NL Advanced Building Automation Server Dual Ethernet RS-485 BACnet/IP EBO Core Controller
Specifications
MOQ :
5
Actuatortype :
Hybrid
Payment Terms :
T/T
Type :
Actuator
Model Number :
SXWASPXXX10002
Device Type :
Hybrid Switch Actuator
Delivery Time :
7 Days
Operating Mode :
Manual KNX bus system
Packaging Details :
Carton
Certification :
CE RoHS
Statusindication :
LED indicators
Place of Origin :
EU
Rated Load :
12 channels * 250V AC / 10A
Brand Name :
Schneider
Dimensions :
90mm x 70mm x 60mm
Description

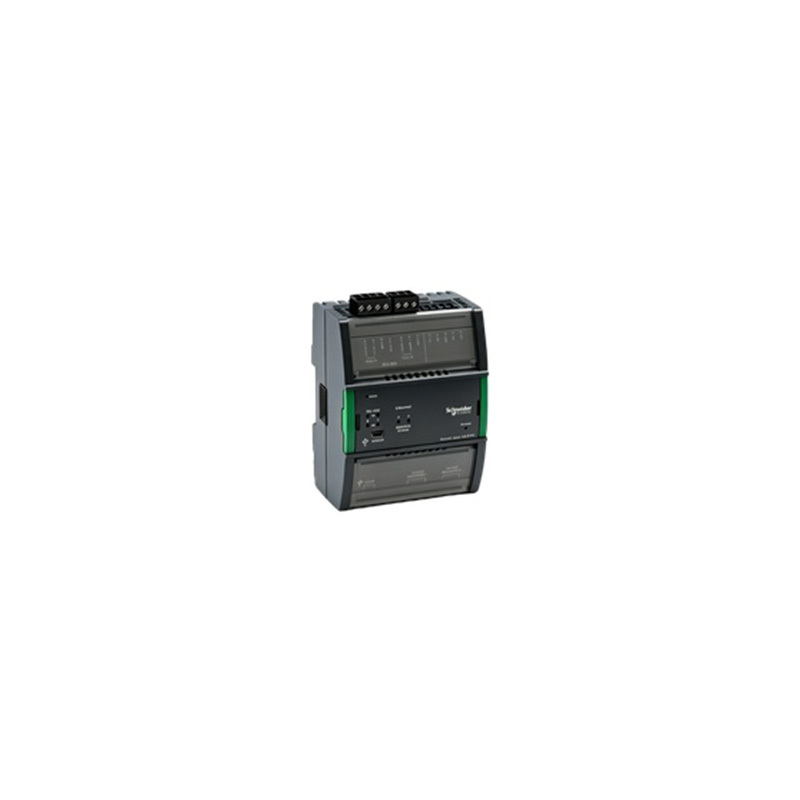

Schneider SpaceLogic AS-P-NL Advanced Building Automation Server
The Schneider Electric SXWASPXXX10002 SpaceLogic AS-P-NL is a high-performance building automation server and controller designed as the core management platform for EcoStruxure Building Operation (EBO). This enterprise-grade server provides centralized monitoring, control, and optimization of HVAC, lighting, energy management, and security systems across large commercial and institutional buildings.
Technical Specifications
Processor Multi-core ARM Cortex-A series processor
Memory 2GB RAM, 16GB eMMC Flash storage
Network 2x 10/100/1000 Mbps Ethernet (RJ45)
Serial 2x RS-485 isolated ports (BACnet MS/TP, Modbus RTU)
USB 2x USB 3.0 host ports
Protocols BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, SNMP, SMTP, NTP, HTTP/HTTPS
BACnet Profile B-OWS capable
BACnet Objects Up to 5000
Power 24VAC/DC +/-15%, 30VA
Operating Temperature 0°C to 50°C
Certifications CE, UL, FCC, BTL listed
Cybersecurity TLS 1.2/1.3, certificate management
Key Features
  • Dual Ethernet ports for network redundancy
  • RS-485 isolated serial ports for field device connectivity
  • Enterprise-grade building automation server
  • EcoStruxure Building Operation core controller
  • Advanced cybersecurity protocols
Application Scenarios
This server is ideal for:
  • Large commercial office towers and shopping malls
  • Hospitals and healthcare facilities
  • University campuses and educational institutions
  • Airports and transportation hubs
  • Data centers and critical infrastructure
  • Central hub for EBO managing hundreds of field devices
  • HVAC scheduling and energy metering systems
  • Alarm management and trend logging
  • IT system integration
