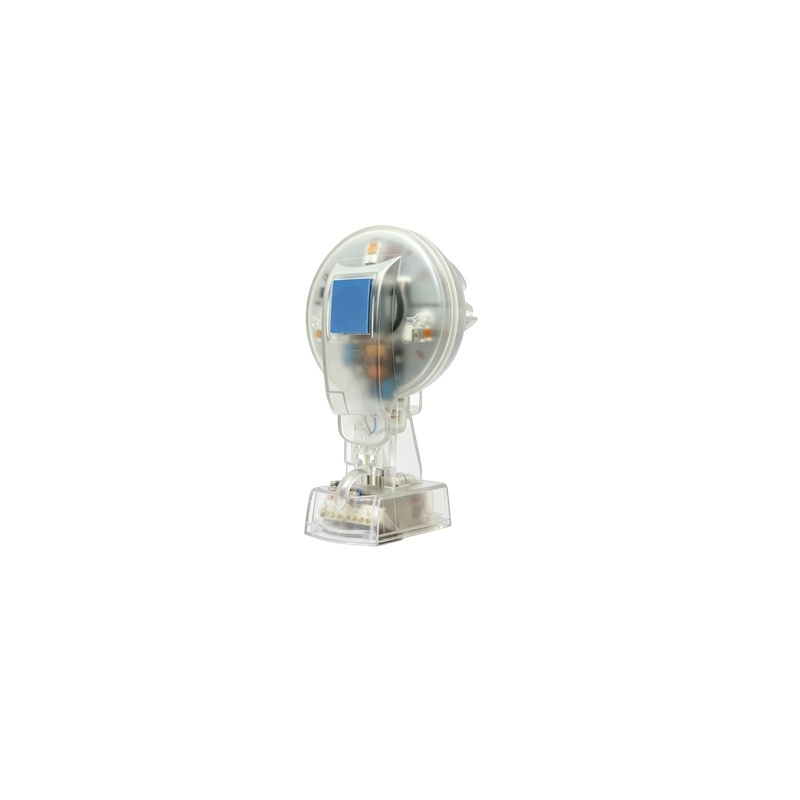

MTN6904-0001 Schneider KNX Mini Weather Station Temperature Humidity Wind Rain Light IP65 Outdoor
MTN6904-0001 Schneider KNX Mini Weather Station Temperature Humidity Wind Rain Light IP65 Outdoor
MTN6904-0001 Schneider KNX Mini Weather Station Temperature Humidity Wind Rain Light IP65 Outdoor
MTN6904-0001 Schneider KNX Mini Weather Station Temperature Humidity Wind Rain Light IP65 Outdoor
MTN6904-0001 Schneider KNX Mini Weather Station Temperature Humidity Wind Rain Light IP65 Outdoor
MTN6904-0001 Schneider KNX Mini Weather Station Temperature Humidity Wind Rain Light IP65 Outdoor
Specifications
Data Transmission Range :
Up to 30 meters indoors
Payment Terms :
T/T
Powersource :
Battery / USB powered
Delivery Time :
7 Days
Channel Configuration :
16 independent control channels
Certification :
CE RoHS
Type :
Electrical Switch Actuator
Packaging Details :
Carton
Rated Load Specification :
4 channels * 250V AC / 20A
Place of Origin :
EU
Response Time :
Less than 30 seconds
MOQ :
5
Model Number :
MTN6904-0001
Power Source :
Battery / USB Powered
Brand Name :
Schneider
Description
MTN6904-0001 Schneider KNX Mini Weather Station Temperature Humidity Wind Rain Light IP65 Outdoor
Product Overview

The Schneider Electric MTN6904-0001 KNX Mini Weather Station is designed for intelligent building control and weather-responsive automation. This compact outdoor station measures temperature, humidity, wind speed, rainfall, and light intensity with high precision.

Technical Specifications
Parameter Specification
Temperature Range -40°C to +80°C, ±0.5°C accuracy
Humidity Range 0-100% RH, ±3% accuracy
Wind Speed 0-50 m/s ultrasonic, ±5% accuracy
Rain Detection Optical detection (no moving parts)
Light Intensity 0-100,000 lux, ±10% accuracy
KNX Interface TP bus, 50 objects
Data Types DPT 9.001/9.007/9.005/1.001
Power Supply 24VDC ±10%, <3W consumption
Bus Current <10mA
Housing Material UV-resistant ASA
Protection Rating IP65
Mounting Options Pole or wall bracket
Operating Temperature -40°C to +70°C
Rain Sensor Optical with heating element
Certifications CE, KNX, IP65
Cable Length 10m standard
Application Scenarios

This weather station enables weather-responsive KNX automation for various applications:

  • HVAC compensation and optimization
  • Automated shading and blind control
  • Skylight and rain protection systems
  • Smart villa and residential automation
  • Commercial building management
  • Greenhouse environmental control

Key Feature: All-weather outdoor operation with IP65 protection and comprehensive environmental monitoring capabilities for seamless KNX integration.
