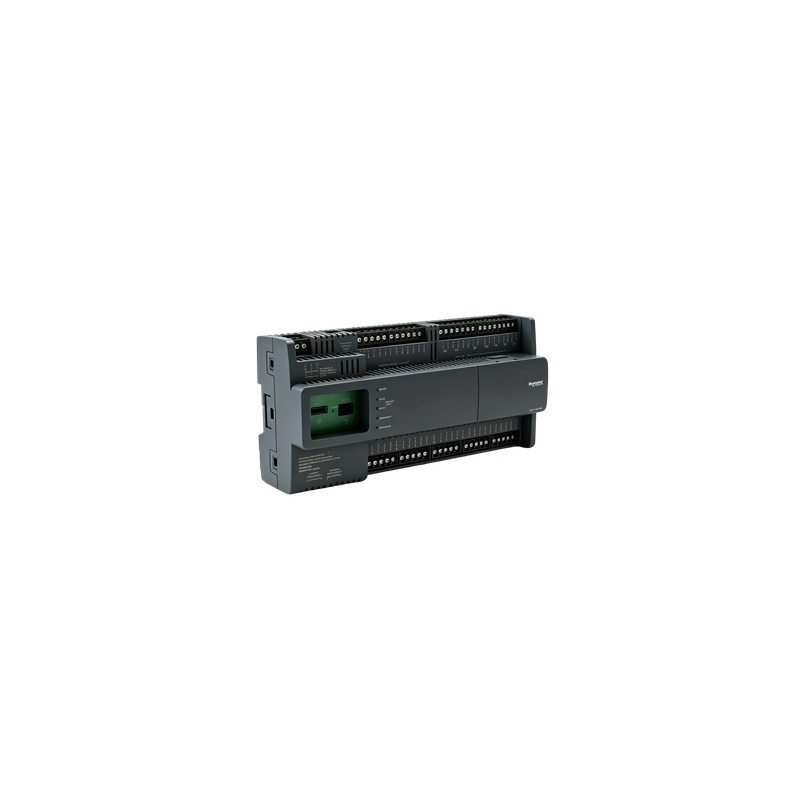

SXWMPC36A10001 Schneider SpaceLogic MP-C-36A Multi-Purpose BACnet/IP Controller 36-Point I/O AHU Chiller Plant Building Automation
SXWMPC36A10001 Schneider SpaceLogic MP-C-36A Multi-Purpose BACnet/IP Controller 36-Point I/O AHU Chiller Plant Building Automation
SXWMPC36A10001 Schneider SpaceLogic MP-C-36A Multi-Purpose BACnet/IP Controller 36-Point I/O AHU Chiller Plant Building Automation
SXWMPC36A10001 Schneider SpaceLogic MP-C-36A Multi-Purpose BACnet/IP Controller 36-Point I/O AHU Chiller Plant Building Automation
SXWMPC36A10001 Schneider SpaceLogic MP-C-36A Multi-Purpose BACnet/IP Controller 36-Point I/O AHU Chiller Plant Building Automation
SXWMPC36A10001 Schneider SpaceLogic MP-C-36A Multi-Purpose BACnet/IP Controller 36-Point I/O AHU Chiller Plant Building Automation
Specifications
Model Number :
SXWMPC36A10001
Device Type :
Hybrid Switch Actuator
Delivery Time :
7 Days
Product Type :
Hybrid Switch Actuator
MOQ :
5
Material :
Flame-retardant plastic
Payment Terms :
T/T
Installation :
TH35 DIN rail mounting
Packaging Details :
Carton
Brand Name :
Schneider
Contacttype :
Normally Open (NO)
Certification :
CE RoHS
Operatingspeed :
0.1 seconds per operation
Place of Origin :
EU
Special Feature :
Manual Override / Local Operation
Description
SXWMPC36A10001 Schneider SpaceLogic MP-C-36A Multi-Purpose BACnet/IP Controller
Product Overview

The Schneider Electric SXWMPC36A10001 SpaceLogic MP-C-36A is a versatile multi-purpose BACnet/IP controller with 36 configurable I/O points, designed for AHU, chiller plant, and building automation applications.

Technical Specifications
Protocol BACnet/IP (Ethernet), BACnet MS/TP (RS-485)
Profile B-BC (Building Controller)
I/O Points 36 points total
Universal Inputs (Type A) 8 points (0-10V/4-20mA/10k NTC/dry contact)
Relay Outputs 8 points (Form C, 5A @ 250VAC)
Universal I/O (Type B) 20 points (0-10V configurable)
Processor ARM Cortex-M7 with FPU
Memory 2MB Flash, 512KB RAM
Ethernet 10/100 Mbps RJ45
Serial RS-485 isolated
BACnet Objects Up to 1000
Power 24VAC/DC +/-15%, 40VA
Operating Temperature -20°C to +55°C
Mounting DIN-rail 35mm, 12 modules
Certifications BTL, CE, UL, FCC
Application Scenarios
  • Controls AHU, chiller plants, boiler systems, and multi-zone VAV
  • Integrates with EcoStruxure Building Operation
  • Ideal for commercial buildings, hospitals, hotels, and universities
