5WG1568-1AB81 24-Channel Room Actuator KNX Relay Switch Output Lighting Heating Valve Scene Control DIN Rail Mount
5WG1568-1AB81 24-Channel Room Actuator KNX Relay Switch Output Lighting Heating Valve Scene Control DIN Rail Mount
5WG1568-1AB81 24-Channel Room Actuator KNX Relay Switch Output Lighting Heating Valve Scene Control DIN Rail Mount
5WG1568-1AB81 24-Channel Room Actuator KNX Relay Switch Output Lighting Heating Valve Scene Control DIN Rail Mount
5WG1568-1AB81 24-Channel Room Actuator KNX Relay Switch Output Lighting Heating Valve Scene Control DIN Rail Mount
5WG1568-1AB81 24-Channel Room Actuator KNX Relay Switch Output Lighting Heating Valve Scene Control DIN Rail Mount
Specifications
Certification :
CE RoHS
Series :
Schneider SpaceLogic
Packaging Details :
Carton
Control Modes :
Automatic KNX sensor linkage
Payment Terms :
T/T
Controlmethod :
Electrical and Manual Override
Delivery Time :
7 Days
Power Supply Mode :
KNX bus power supply (DC 24V)
Place of Origin :
EU
Compatibility :
Works with various smart home systems
MOQ :
5
Statusindication :
LED indicators
Model Number :
5WG1568-1AB81
Rated Operating Voltage :
230V AC, 50-60Hz
Description

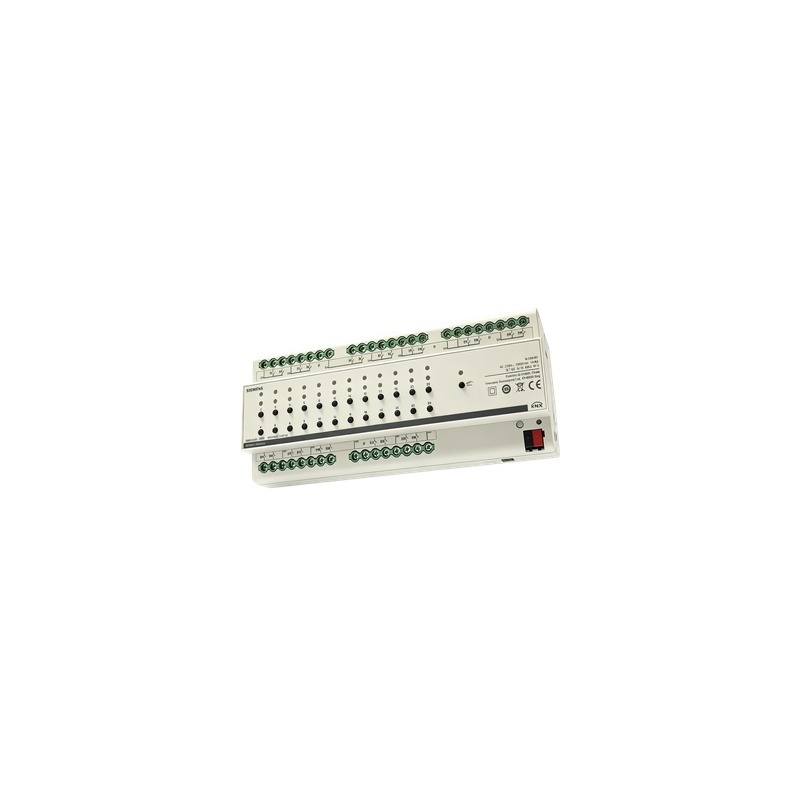

5WG1568-1AB81 24-Channel Room Actuator KNX Relay Switch Output Lighting Heating Valve Scene Control DIN Rail Mount
Product Overview

The WG1568-1AB81 is a high-performance 24-channel room actuator designed for KNX building automation systems. This DIN-rail mounted actuator provides 24 independent relay switch outputs for controlling various electrical loads including lighting circuits, power outlets, heating valves, and ventilation equipment. The actuator supports advanced logic functions such as scene control, staircase lighting timer, delayed switching, and priority-based load management, making it ideal for comprehensive room automation in commercial and residential buildings.

Technical Specifications
Feature Specification
Protocol KNX TP (Twisted Pair) compliant with EN 50090
Output Channels 24 independent relay outputs
Relay Type Bistable relays for energy-efficient operation
Switching Capacity 10A @ 250VAC per channel (cos phi = 0.6)
Total Load Maximum 20A per group (4 groups of 6 channels)
Contact Configuration Single-pole changeover (SPDT)
Switching Cycles >100,000 mechanical operations
Bus Current <10mA from KNX bus
Power Supply AC 230V, 50/60Hz
Power Consumption <2W standby
Operating Temperature -5°C to +45°C
Storage Temperature -25°C to +55°C
Humidity 5% to 93% RH (non-condensing)
Mounting DIN-rail EN 60715 (35mm)
Dimensions 8 modules wide (144mm)
Protection IP20
Certifications CE, KNX certified, IEC 60669-1
Logic Functions Scene (8 per channel), staircase timer, delay on/off, priority control
Application Scenarios

The WG1568-1AB81 is widely used in commercial office buildings, hotels, hospitals, and residential complexes for centralized room lighting and load control. It is particularly suitable for hotel guest rooms where multiple lighting zones, curtain motors, and heating valves need to be controlled from a single location.

The actuator supports KNX scene control, allowing users to activate preset lighting combinations for different activities such as meeting mode, presentation mode, or cleaning mode. In residential applications, it provides centralized control for living room, bedroom, and kitchen lighting circuits with staircase timer functionality for corridor and stairwell lighting automation.
