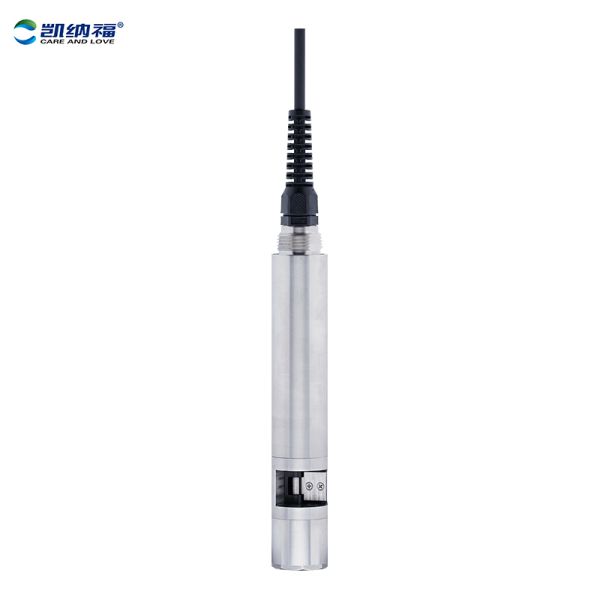

Digital Color Sensor – True Color Monitor for Drinking Water & Wastewater, RS485 Modbus
Digital Color Sensor – True Color Monitor for Drinking Water & Wastewater, RS485 Modbus
Specifications
Brand Name :
KaiNaFu
Model Number :
KNF-1019Pro
Place of Origin :
Shenzhen
MOQ :
1 pieces
Payment Terms :
T/T
Supply Ability :
500 pieces+One month
Delivery Time :
5-10 Working day
Packaging Details :
Eco-friendly paper box
Working principle :
Optical absorption method
Measurement range :
(0-500)Hazen，(0-500)NTU
Resolution :
0.5Hazen
accuracy :
±2%
Description

Digital Color Sensor – True Color Monitor for Drinking Water & Wastewater, RS485 Modbus


1. Product Introduction
The KNF-1019Pro color intelligent electrode adopts the RS485 communication interface and the standard Modbus protocol. It is equipped with a cleaning brush and can measure the absorbance of water at 470nm and 546nm, converting it into color values. It can quickly respond to changes in water quality. A data analysis software is randomly provided, featuring calibration, recording, analysis, and diagnosis functions. It can be applied to small water stations, surface water, river sections, lakes and reservoirs, municipal sewage, and seawater monitoring, etc.

Digital Color Sensor – True Color Monitor for Drinking Water & Wastewater, RS485 Modbus

2. Usage environment
Working voltage: 12/24V Temperature: (0-60) ℃ Pressure: (0-3) bar;

Digital Color Sensor – True Color Monitor for Drinking Water & Wastewater, RS485 Modbus


3.Technical indicators

Working principle

Optical absorption method

Measurement of wavelength

470nm,546nm

Measurement range

(0-500)Hazen,(0-500)NTU

Measurement accuracy

±2%

Resolution

0.5Hazen

Communication interface

RS485,Standard Modbus Protocol

Size specification

D32mm,L175mm,Cable 3 meters (customizable),490g

Operating environment

(5-35)℃ ,(0-3)bar

Working voltage

12V/24V DC,0.3W

Material

Titanium alloy

Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.


▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪ Wechat Official Account/Mini Program

Digital Color Sensor – True Color Monitor for Drinking Water & Wastewater, RS485 Modbus

Digital Color Sensor – True Color Monitor for Drinking Water & Wastewater, RS485 Modbus
