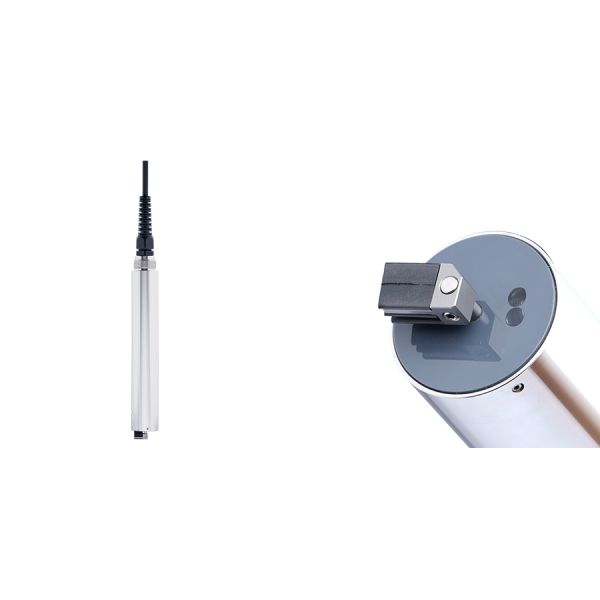

Optical Turbidity Sensor Self-cleaning Brush With RS485 Output Is Put Into Use
Optical Turbidity Sensor Self-cleaning Brush With RS485 Output Is Put Into Use
Optical Turbidity Sensor Self-cleaning Brush With RS485 Output Is Put Into Use
Optical Turbidity Sensor Self-cleaning Brush With RS485 Output Is Put Into Use
Specifications
Brand Name :
KaiNaFu
Model Number :
KNF-1004Pro
Place of Origin :
Shenzhen
MOQ :
1 pieces
Payment Terms :
T/T
Supply Ability :
500 pieces+One month
Delivery Time :
5-10 Working day
Packaging Details :
Eco-friendly paper box
Detection method :
90° light scattering method (laser light source)
Light source :
660nm Laser
Range :
0 - 1NTU / 0 - 20NTU(Default) / 0- 100NTU / 0-2000NTU
Resolution :
0.0001 NTU( <1NTU)，0.001NTU ( ≥1NTU)
Detection limit :
0.005NTU
Zero drift :
≤ 1.5%
Description

Optical Turbidity Sensor Self-cleaning Brush With RS485 Output Is Put Into Use


1. Product Introduction
The KNF-1004Pro turbidity intelligent sensor adopts an RS485 communication interface and the standard Modbus protocol. It comes with a built-in cleaning brush and uses an infrared light source, which is not affected by the color of water samples. It employs a 90° scattering method and complies with the ISO 7027 international standard and the USEPA 180.1 environmental protection standard of the United States. Data analysis software is randomly included, featuring functions such as calibration, recording, analysis, and diagnosis. It can be applied in fields such as surface water, municipal sewage, industrial wastewater, sewage treatment, waterworks, and process control.

Optical Turbidity Sensor Self-cleaning Brush With RS485 Output Is Put Into Use

2. Usage environment
Working voltage: 12/24V Temperature: (0-60) ℃ Pressure: (0-3) bar;


3.Technical indicators

Working principle

Light scattering method

Measurement range

(0-1000)NTU or (0-4000)NTU

Resolution rate

0.01NTU

Measurement accuracy

±3% or 3NTU

Reproducibility

<2% or 2NTU

Drift

±2%

Detection limit

5NTU

Reproducibility

±5%

Linear error

<5%

Communication interface

RS485, standard Modbus-RTU protocol

Size specification

D30mm,L175mm,Cable 3 meters (customizable),490g

Working environment


(0-60)℃ ,(0-3)bar

Working voltage

12V/24V DC,0.6W

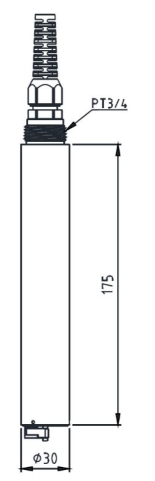

Optical Turbidity Sensor Self-cleaning Brush With RS485 Output Is Put Into UseUnit: mm


Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.


▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪ Wechat Official Account/Mini Program

Optical Turbidity Sensor Self-cleaning Brush With RS485 Output Is Put Into Use

Optical Turbidity Sensor Self-cleaning Brush With RS485 Output Is Put Into Use
