Digital Sodium Ion Sensor – Na⁺ Probe For Power, Water, Pharma & Industry, RS485 Modbus
Digital Sodium Ion Sensor – Na⁺ Probe For Power, Water, Pharma & Industry, RS485 Modbus
Specifications
Brand Name :
KaiNaFu
Model Number :
KNF-1016Pro
Place of Origin :
Shenzhen
MOQ :
1 pieces
Payment Terms :
T/T
Supply Ability :
500 pieces+One month
Delivery Time :
10-15 work days
Packaging Details :
Eco-friendly paper box
Working principle :
Ion-selective electrode
range :
（0-1000）mg/L
Detection limit :
0.3mg/L
accuracy :
5% or ±0.2mg/L
Description

Digital Sodium Ion Sensor – Na⁺ Probe For Power, Water, Pharma & Industry, RS485 Modbus


1. Product Introduction
The KNF-1016Pro sodium ion intelligent electrode adopts the RS485 communication interface and the standard Modbus protocol. It is equipped with a PT1000 temperature sensor and has temperature and pH compensation functions. It can also be extended for potassium ion compensation. A data analysis software is randomly provided, which has functions such as calibration, recording, analysis, and diagnosis. It can be applied to surface water monitoring, as well as monitoring of domestic sewage, agricultural sewage, and municipal sewage. It is convenient for integrated applications such as monitoring buoys, monitoring floats, and monitoring ships.

Digital Sodium Ion Sensor – Na⁺ Probe For Power, Water, Pharma & Industry, RS485 Modbus

2.使用环境

Working voltage: 12/24V Temperature: (0-60) ℃ Pressure: (0-3) bar;


3.Technical indicators


Working principle

Ion-selective electrode

Measurement range

(0-1000)mg/L

Detection limit

0.3mg/L

Measurement accuracy

5% or ±0.2mg/L

Communication interface

RS485,Standard Modbus Protocol

Size specification

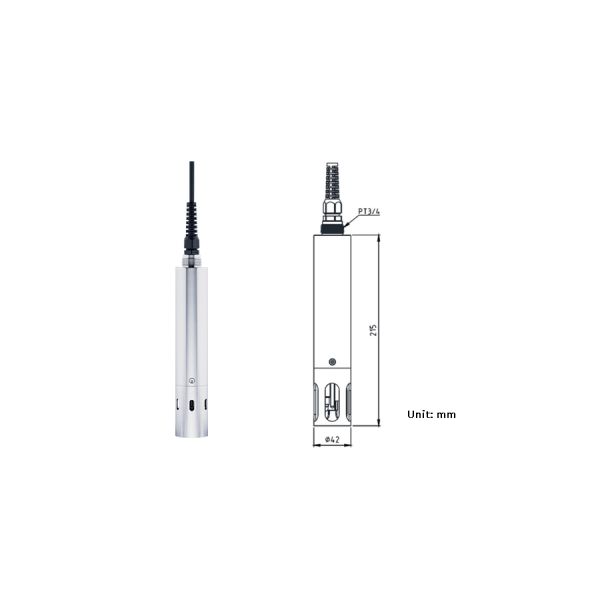

D42mm,L215mm,Cable 3 meters (customizable),860g

Work environment

(0-60)℃ ,(0-3)bar

Working voltage

12V/24V DC,0.3W


Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.


▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪ Wechat Official Account/Mini Program
