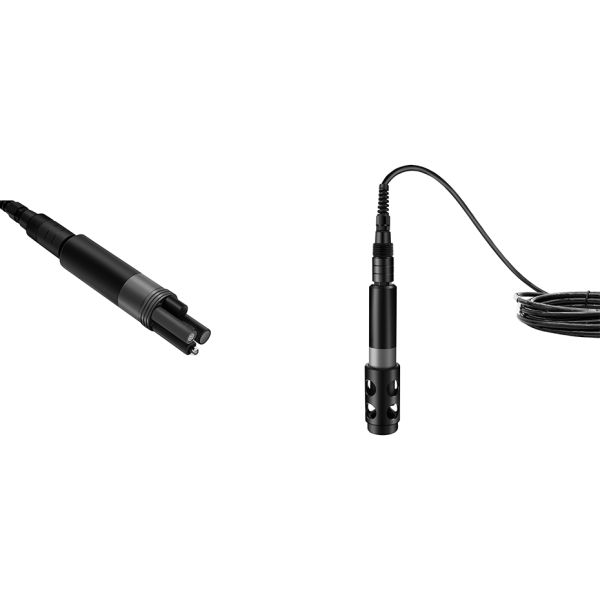

Automatic Industrial Ammonia Nitrogen NH4 Sensor PH Electrode For Water Pollution
Automatic Industrial Ammonia Nitrogen NH4 Sensor PH Electrode For Water Pollution
Automatic Industrial Ammonia Nitrogen NH4 Sensor PH Electrode For Water Pollution
Automatic Industrial Ammonia Nitrogen NH4 Sensor PH Electrode For Water Pollution
Automatic Industrial Ammonia Nitrogen NH4 Sensor PH Electrode For Water Pollution
Automatic Industrial Ammonia Nitrogen NH4 Sensor PH Electrode For Water Pollution
Automatic Industrial Ammonia Nitrogen NH4 Sensor PH Electrode For Water Pollution
Automatic Industrial Ammonia Nitrogen NH4 Sensor PH Electrode For Water Pollution
Specifications
Brand Name :
KaiNaFu
Model Number :
KNF-107A+
Place of Origin :
Shenzhen
MOQ :
1 pieces
Payment Terms :
T/T
Supply Ability :
500 pieces+One month
Delivery Time :
5-10 Working day
Packaging Details :
Eco-friendly paper box
Ammonia nitrogen: :
0.5-1000ppm, resolution: 0.01ppm
PH :
0-14 pH, resolution: 0.01ph
ORP :
-999~+999mV, resolution: 1mV (optional)
Potassiumion :
0.5-1000ppm,resolution: 0.01ppm (optional)
measuring principle :
PVC membrane ion selective electrode, glass bulb pH, ORP platinum, KCL reference
data output :
RS485, Modbus RTU
Description

Industrial Ammonia Nitrogen Sensor Can Be Equipped With A Reference Electrode, PH Electrode, NH4+ Electrode, ORP Or K+ (choose One Of The Two), And The Electrode Is Automatically Temperature-compe

1.Introduction to the New KNF-107A+ Ammonia Nitrogen Sensor
KNF-107A+ Ammonia Nitrogen Sensor Up to four electrochemical electrodes can be installed, namely a reference electrode, a pH measurement electrode, an NH4+ electrode, and an ORP or K+ (choose one) electrode. All electrodes are supported for on-site replacement by users. They can automatically compensate for NH4+, pH and temperature, and calculate the ammonia nitrogen (NH4-N) value.

Automatic Industrial Ammonia Nitrogen NH4 Sensor PH Electrode For Water Pollution

2.Advantages and Features of the KNF-107A+ New Ammonia Nitrogen Sensor
1. The samples do not require pretreatment and are suitable for continuous online monitoring
2. The NH4+ ion electrode and the polyester liquid contact reference electrode (unconventional porous liquid contact) have a longer service life and less drift.
3. RS485 output, supporting Modbus RTU protocol.
4. Built-in isolator, with better anti-interference ability.
5. Support water leakage alarm.
6. Waterproof rating IP68
Note: Ion electrodes are only suitable for freshwater applications and are not applicable to seawater or Marine aquaculture.

3. Technical indicators

measuring principle

PVC membrane ion selective electrode, glass bulb pH, ORP platinum, KCL reference

measuring range

Ammonia nitrogen: 0.5-1000ppm, resolution: 0.01ppm

PH: 0-14 pH, resolution: 0.01ph

ORP: -999~+999mV, resolution: 1mV (optional)

Potassiumion: 0.5-1000ppm,resolution: 0.01ppm (optional)

accuracy

Ammonia nitrogen: 5% FS pH: ± 0.2pH ORP: ± 20mV

Potassium ion: 5% FS (in freshwater, conductivity<1500uS/cm)

detection limit

Ammonia nitrogen: 0.05ppm Potassium ion: 0.05ppm

Flow rate requirements

<3m/s

response time

Max 45s T90

work environment

5~45℃

storage temperature

-10~50℃

Waterproof grade

IP68, 10m Max

data output

RS485, Modbus RTU

power

DC 5V ±5%, 0.5W

material quality

Body POM and titanium alloy, electrode POM and PVC

size

186mm long, 35.5mm diameter (protective cover can be installed)

Length

Standard configuration of 5 meters, customizable

4. Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)

All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.

▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
Wechat Official Account/Mini Program
