Super Compact Waterproof IP65 Industrial Plastic Keyboard with 88 Keys and Mini Trackball for Harsh Environments
Super Compact Waterproof IP65 Industrial Plastic Keyboard with 88 Keys and Mini Trackball for Harsh Environments
Super Compact Waterproof IP65 Industrial Plastic Keyboard with 88 Keys and Mini Trackball for Harsh Environments
Super Compact Waterproof IP65 Industrial Plastic Keyboard with 88 Keys and Mini Trackball for Harsh Environments
Super Compact Waterproof IP65 Industrial Plastic Keyboard with 88 Keys and Mini Trackball for Harsh Environments
Super Compact Waterproof IP65 Industrial Plastic Keyboard with 88 Keys and Mini Trackball for Harsh Environments
Specifications
Payment Terms :
T/T,Paypal,Western Union,D/A,D/P
Weight :
0.38kgs
Model Number :
PKB-88-TB-1
Number of Keys :
88 Keys
MOQ :
1pcs
Delivery Time :
20days
Diameter of Trackball :
15mm
Brand Name :
Neutral or Custom
Material :
Industrial-grade ABS/PC
Packaging Details :
1pcs/box, 10pcs/ctns
Place of Origin :
China
Key Travel :
1.5 +/-0.3mm
Price :
US$35-45/pc Exworks
Cable Length :
1.2m or 1.5m with Ferrite
Supply Ability :
5000pcs/month
Certification :
CE,FCC,RoHS
Interface :
USB or PS/2
Description
Compact Waterproof IP65 Industrial Plastic Keyboard with 88 Keys and Mini Trackball for Harsh Environments

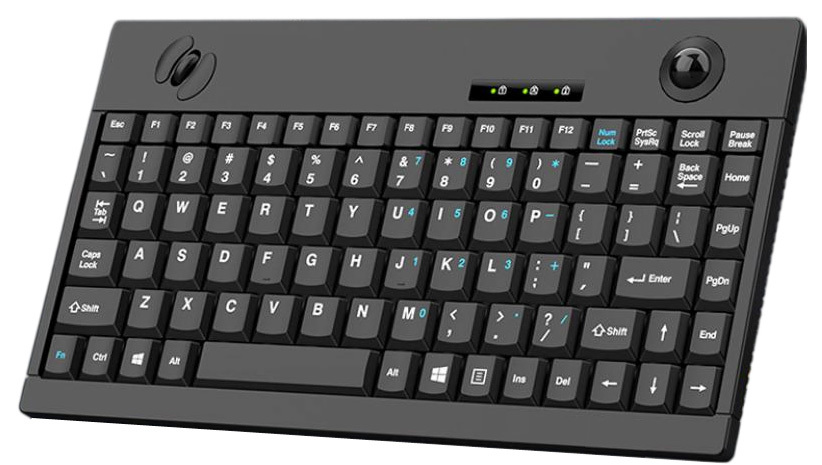

The Kingleader PKB-88-TB-1 is a compact 88-key industrial keyboard with an integrated mini trackball, delivering efficient and convenient operation. Adopting a notebook-style keyboard structure, it offers a comfortable typing experience and remains easy to use even during long hours of input.

Constructed from industrial-grade ABS material, this keyboard ensures sturdiness and durability with excellent impact resistance and wear resistance. Its unique structural design enables stable and reliable performance even in harsh environments, making it widely suitable for industrial scenarios such as manufacturing and mining.

Whether under complex working conditions or high-intensity operations, the PKB-88-TB-1 provides stable input and precise control, making it an ideal choice for industrial applications.

Key Features
  • This compact keyboard is built with laptop-style key technology, embracing both the typing comfort of laptop keyboards and the ruggedness of industrial keyboards
  • Small foot-print thus save space
  • 88 keys
  • Integrated with mini trackball(15mm)
  • 3 buttons(L&R,Scroll) for the trackball
  • LED Indicators:Num Lock,Caps Lock,Scroll
  • Interface:USB or PS/2
  • Silkscreen-print key legend
  • Resistant against splashed liquid
  • Cable:1.2 or 1.5M long with ferrite

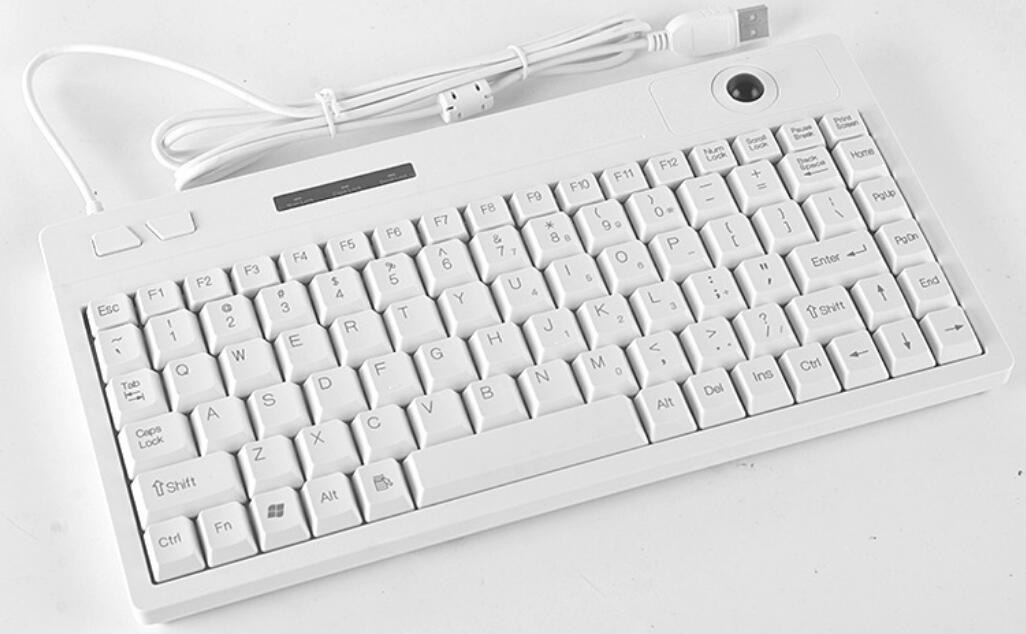

  • Color available:Black and white
  • Application: Industrial workplaces like manufacturing, mining, etc.
Technical Specifications
Material -PC/ABS for the case and keys
Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: <=100 mA
- Interface: USB or PS2
- EMC Emission:EN55022(B)

- Resolution of trackball:1000dpi
Environmental Characteristics Operating temperature: -20°C to +60°C
Storage temperature: -40°C to +80°C
Saline mist: 96 hours, IEC 60512-6
Damp heat test at +40°C: 21 days, IEC 60512-6
Dry heat test at +85°C: 10 days, IEC 60512-6
Mechanical Data Actuation force: 50 ±10g
Key travel: 1.5mm ±0.3mm
Lifetime: Min 10,000,000 actuations
Sealing protection: IP65/NEMA4X from the front
Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Compatible Operating Systems PS2: Win NT4, 98SE, 98ME, 2000, XP
USB: Win 98SE, 98ME, 2000, XP, Mac OS9/OSX, Win7/8.1/10/11, Linux
Reliability MTBF: >20,000 hours
MTTR: <30 minutes

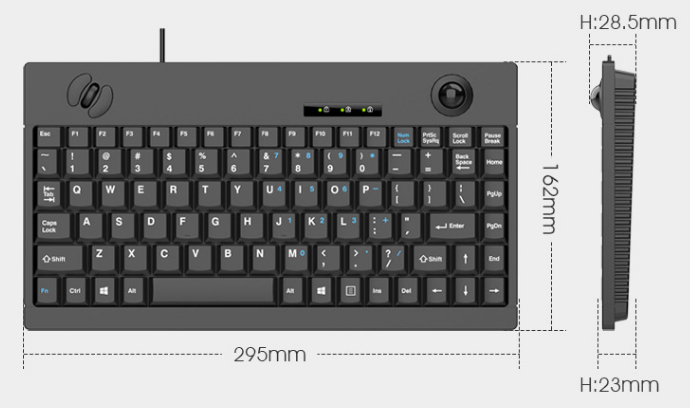

Dimensions -295.00 x 162.00 x 28.50mm(including the trackball)(L x W x T)
Weight

0.38 kg
