Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys
Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys
Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys
Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys
Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys
Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys
Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys
Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys
Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys
Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys
Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys
Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys
Specifications
Brand Name :
KINGLEADER
Model Number :
PKB-68-TB
Certification :
CE,FCC
Place of Origin :
China
MOQ :
1pcs
Price :
US$30-50
Payment Terms :
T/T,Paypal, L/C, D/A, D/P, T/T, Western Union, MoneyGram,Credit card
Supply Ability :
5000pcs/month
Delivery Time :
20days
Packaging Details :
1pcs/box, 10pcs/ctns
Style :
Panelmount
Number of Keys :
68
Material :
Plastic-PC/ABS
Type of mouse :
Trackball
Layout :
Standard US layout or Customization Available
Interface :
USB or PS/2
Key Travel :
2.2mm ±0.5mm
Color :
Black
Description

Kingleader’s PKB-68-TB is a low-cost yet rugged panelmount plastic keyboard,embracing both panelmount capability and the excellent typing feel of office keyboards,which makes it possible to integrate the keyboard with other machines or workstations.

Moreover an integral optical trackball eliminates the hassle of an additional wired mouse.

Due to its unique design and build,it is widely used in industrial workplaces such as factory workshop,weighing station,warehousing,logistics,material handling and so on.

Items

 Specifications
Key Features

- 68 full-travel keys including 12 numeric/function keys

- Panelmount from the rear side

- Integrated with optical trackball(14mm dia)

- Silk-printing key legend

- Cable length:1.8m

- Interface:USB or PS/2

- Color:black

- Layout:US,UK,DE,FR,ESP,JP or custom
Material - PC/ABS for the case and keys
Electrical Data - Power supply voltage: DC 5 V ± 5%
- Current rating: <=30 mA
- Interface: USB or PS2
- EMC Emission:EN55022(B)
Environmental Characteristics - Operating temperature:0º C to + 55º C
- Storage temperature: - 10º C to +60º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data

- Actuation force: 70 ±10g
- Key travel: 2.5mm ±0.5mm
- Lifetime (cycles) of keys: Min 10 millions actuations

- Diameter of trackball:14mm
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10/11
IP Rating -IP55
Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

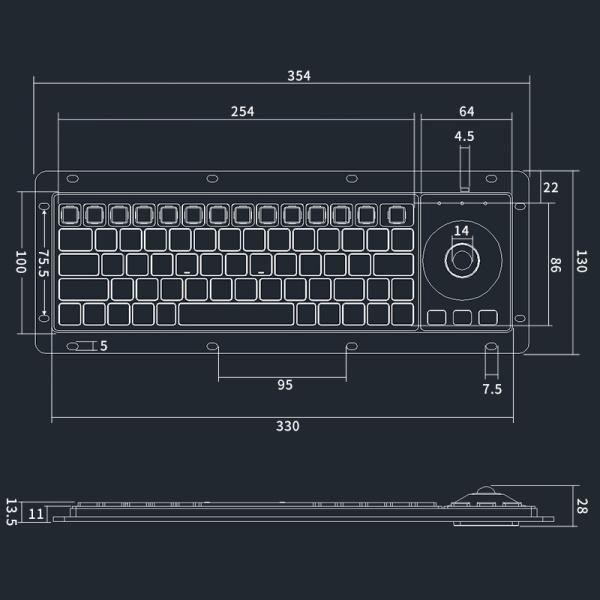

Dimension

-330.00 x 100.00(L x W)(Front plate)

-354.00 x 130.00(L x W)(Back plate)

-Thickness:28.00mm(to the tallest point)

see below drawing
Weight 0.45 kgs

Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 KeysLow-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys

Low-cost Rugged Panelmount Plastic Keyboard With Tiny Trackball and 68 Keys

Company Information:

KINGLEADER is an ISO9001:2015 and ISO13485 certified manufacturer,we are engaged in R&D,production,sale and service of rugged keyboard,rugged keypad,rugged trackball,rugged touchpad and touchscreen kiosk etc.

Moreover, OEM and ODM manufacturing,plastic mold building and plastic injection is a major part of our business.

Why us?

1,ISO9001:2015 and ISO13485 certification

2,Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS

3,Reasonable price and fast response

4,Over 20 years of experience in rugged input device and touchscreen kiosk

5,OEM and ODM capability

6,Flexibility in customization and size of order

7,Trusted suppliers of many world-class famous brands in the industry
