1.2GHz 1W Long Range FPV Video Transmitter Module with 10–20km Wireless Image Transmission
1.2GHz 1W Long Range FPV Video Transmitter Module with 10–20km Wireless Image Transmission
1.2GHz 1W Long Range FPV Video Transmitter Module with 10–20km Wireless Image Transmission
1.2GHz 1W Long Range FPV Video Transmitter Module with 10–20km Wireless Image Transmission
1.2GHz 1W Long Range FPV Video Transmitter Module with 10–20km Wireless Image Transmission
1.2GHz 1W Long Range FPV Video Transmitter Module with 10–20km Wireless Image Transmission
Specifications
Brand Name :
Kimpok
Model Number :
KP-12VTX1000M
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T,Paypal
Supply Ability :
4,000 pieces per month
Delivery Time :
5-7 work days
Packaging Details :
International Standard Packing
Frequency :
1080MHz ~ 1360MHz
RF Power :
1W
Voltage :
DC 7V~36V
Channel :
8 Channel
Distance :
10~20km
Size :
45.5*35.6*11.5 mm
Description
1.2GHz 1W Long Range Video Transmitter Module, 8CH Wireless Image Transmission (10–20km)
High-performance 1.2GHz 1W FPV video transmitter module designed for long-range drone applications, providing reliable wireless image transmission over distances of 10 to 20 kilometers.
Key Features
Frequency Range: 1.2GHz (1080MHz to 1360MHz)
Transmission Channels: 8 Channels
Transmission Range: 10-20km
Output Power: 1W
Receiver Sensitivity: -95dBm
Technical Specifications
Power Input: 7-36V DC
Regulator Output: 5V 2A (input 6-30V)
Current Consumption: 0.3A @5V
Video Format: NTSC or PAL
Video Output Impedance: 75Ω
Antenna Impedance: 50Ω
RF Connector: SMA
Audio Subcarrier: 6.5MHz & 6.0MHz
Band-pass Filter: 950MHz-1450MHz
Weight: 14g (without antenna)
Dimensions: 45.5*35.6*11.5mm (30.5*30.5mm mounting)
Control & Interface

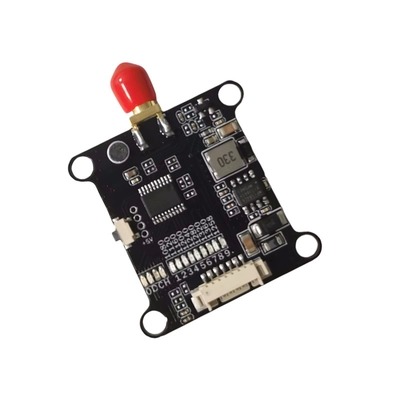

Features intuitive button control with LED indicators for easy operation and status monitoring. On-board voltage regulator provides stable power for connected devices.
