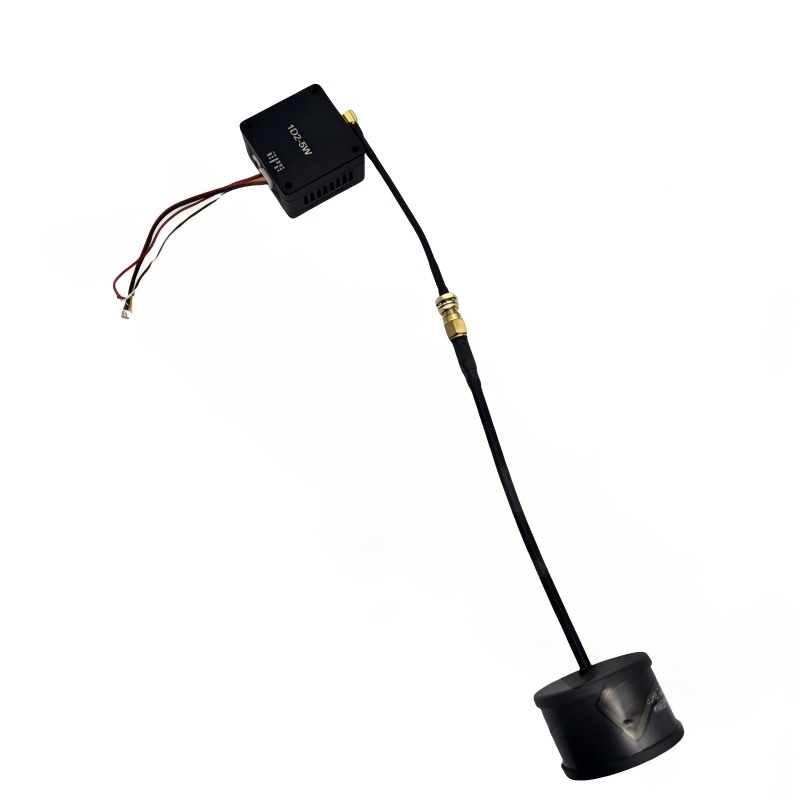

1.2GHz 5W High Power FPV VTX Video Transmitter Module 9CH Long Range Wireless Transmission for Drones
1.2GHz 5W High Power FPV VTX Video Transmitter Module 9CH Long Range Wireless Transmission for Drones
1.2GHz 5W High Power FPV VTX Video Transmitter Module 9CH Long Range Wireless Transmission for Drones
1.2GHz 5W High Power FPV VTX Video Transmitter Module 9CH Long Range Wireless Transmission for Drones
1.2GHz 5W High Power FPV VTX Video Transmitter Module 9CH Long Range Wireless Transmission for Drones
1.2GHz 5W High Power FPV VTX Video Transmitter Module 9CH Long Range Wireless Transmission for Drones
Specifications
Brand Name :
Kimpok
Model Number :
KP-T1250
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T,Paypal
Supply Ability :
5,000 pieces per month
Delivery Time :
5-7 work days
Packaging Details :
International Standard Packing
Frequency :
1.2Ghz(1080M-1360M)
Protocol :
IRC Tramp
Channel :
9 Channel
Power Supply :
DC 7-36V 2-8S
RF Power :
5W(25mW,5000mW)
Description
1.2GHz 5W High Power Video Transmitter Module
Professional 9CH long range wireless transmission module for FPV drones and UAV applications with high power output and advanced features.
Technical Specifications
Frequency Range 1.2GHz (1080MHz-1360MHz), 9 channels
Output Power 5W maximum (25mW/5000mW, two-level adjustable)
Input Voltage DC 7V-36V, supports 2-8S battery input
Antenna Connector MCX type
Smart Audio IRC Tramp protocol
Heat Dissipation Aluminum alloy shell with heat sink and cooling fan
Mounting Spacing 30.5mm * 30.5mm / ø3.0mm holes
Dimensions 38mm * 38mm * 20.7mm
Weight 38 grams
Functional Features
  • Channel indicator: Red LED display
  • Band indicator: Blue LED display
  • Power indicator: Green LED display
  • Band & Channel selection button
  • Power level adjustment button
  • 1.0 6P Power connector
  • Cooling fan power cable holder
  • MCX antenna connector interface
Installation & Usage Guidelines
  • Ensure adequate installation space for proper air convection and heat dissipation. Overheating may trigger protection mechanisms, reducing transmission power or shutting down the module.
  • Verify correct voltage range and polarity before powering on to prevent component damage.
  • Always install the antenna before turning on power to extend module lifespan and ensure proper RF output.
  • Consult the instruction manual for correct wiring procedures and optimal performance.
