60-80W COFDM Video Transmitter for Car to Car 200km Range
60-80W COFDM Video Transmitter for Car to Car 200km Range
60-80W COFDM Video Transmitter for Car to Car 200km Range
60-80W COFDM Video Transmitter for Car to Car 200km Range
60-80W COFDM Video Transmitter for Car to Car 200km Range
60-80W COFDM Video Transmitter for Car to Car 200km Range
60-80W COFDM Video Transmitter for Car to Car 200km Range
60-80W COFDM Video Transmitter for Car to Car 200km Range
Specifications
Brand Name :
Kimpok
Model Number :
KP-CM60H
Certification :
CE certificate
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T,Paypal
Supply Ability :
5000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
International standard packing
Description
Detail Information(COFDM Video Transmitter for Seamless Video Delivery in Any Environment)
Place of Origin:
Shenzhen, China
Brand Name:
Kimpok
Certification:
CE certification
Model Number:
KP-CM60H
Highlight:

COFDM wireless video transmitter 60-80W

,

car to car video transmitter

,

high power RF video transmitter

Trading Information(COFDM Video Transmitter for Seamless Video Delivery in Any Environment)
Minimum Order Quantity:
1
Price:
Negotiation
Packaging Details:
International standard packing
Delivery Time:
3-7 working days
Payment Terms:
L/C,T/T,Paypal
Supply Ability:
5000pcs/month
Product Description(COFDM Video Transmitter for Seamless Video Delivery in Any Environment)

200km 50km Long Range COFDM Wireless FPV HD SDI Transmitter for Car to Car with Adjustable RF Power Output
Product Overview

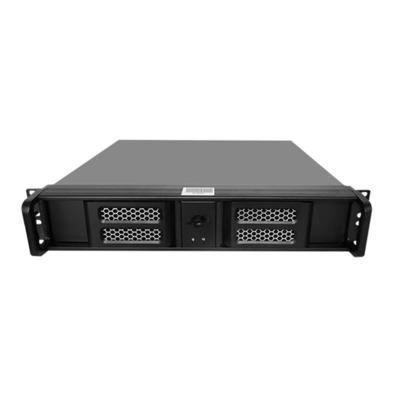

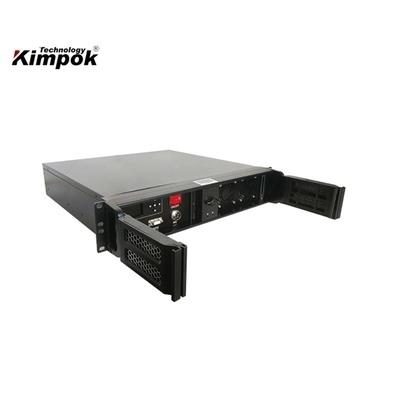

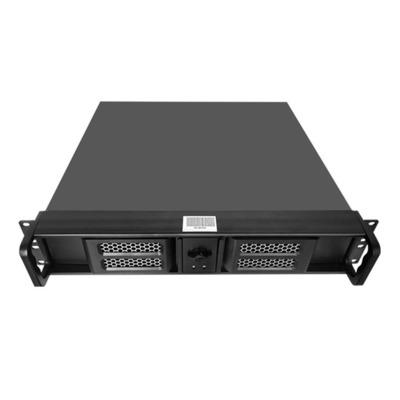

The KP-CM60H is a high-power RF device specifically designed for vehicle NLOS mobile digital image transmission. Featuring a standard 19-inch 2U dimension for easy installation in vehicles and boats, this transmitter supports one video channel and two audio channels with exceptional long-range transmission capabilities.
Key Specifications
Parameter Specification
Place of Origin China
Brand Name Kimpok
Certification CE Certification
Model Number KP-CM60H
Frequency/AV 300-900MHz option or 1.2GHz; 2.4GHz; 5.8GHz
Frequency/DATA 433MHz
Modulation COFDM 2K QPSK
RF Power Output 60-80W (adjustable)
Voltage DC11-14.5V
Current 4.7A
Video Rate 15Mbps(MAX)
Technical Specifications
Parameter Details
Constellation QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz
FEC 1/2,2/3,3/4,5/6,7/8 (optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Bandwidth 2/2.5/4/8M(adjustable)
Video Interface HDMI; SDI; CVBS
Encryption AES 128 bit / ALLTECH Basic scrambling
Video Compression H.265/H.264
Resolution 1280*720P / 1980*1080P
Operating Temperature -25℃~55℃
Size 430*420*89mm
Weight 12kg
Key Features
  • COFDM modulation for stable transmission
  • H.264 video compression for DVD-quality video
  • Hard aluminum housing with built-in cooling fans
  • Mobile and NLOS (Non line-of-sight) transmission capability
  • AES 128-bit encryption for enhanced security
  • Low system latency
  • Modular design with compact structure
  • Multiple waveband options: VHF/L/S
  • Optional two-way voice communication support
Applications
Ideal for car-to-car, boat-to-boat, vehicle-to-fixed station, boat-to-fixed station, and helicopter-to-fixed station communications. Can function as a repeater with transmission ranges up to 200km LOS from air and 50km NLOS distance when used with omni-directional antenna.
Trading Information
Parameter Details
Minimum Order Quantity 1 Piece
Price Negotiation
Packaging Details International standard packing
Delivery Time 3-7 work days
Payment Terms T/T, PayPal, Alipay
Supply Ability 5000/month
