APlus Modular UPS 50kW Power Module 200-500kVA Range
APlus Modular UPS 50kW Power Module 200-500kVA Range
APlus Modular UPS 50kW Power Module 200-500kVA Range
APlus Modular UPS 50kW Power Module 200-500kVA Range
Specifications
Brand Name :
kimoems or OEM
Model Number :
refer to parameters
Place of Origin :
China
MOQ :
1PC
Payment Terms :
,T/T
Delivery Time :
10 work days
Power Range :
200kVA 300kVA 400kVA 500kVA
Power Modules :
4-10pcs
Power Module Rated Capacity :
50kw
Characteristics :
3U single power module delivers up to 50kW Single 42U cabinet: Capacity up to 500kW Supports N+1 power system redundancy Modular design reduces MTTR (Mean Time To Repair)
Product Features :
Built-in maintenance bypass switch: Easy maintenance without output interruption High-efficiency dual-conversion online UPS Flexible battery configuration and adjustable charging current High overload capability Walk-in power function Models A+ 42U-200S (P
Description

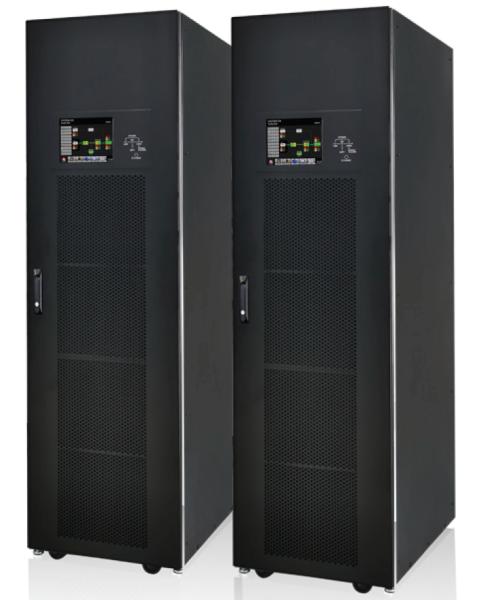

APlus Modular UPS (50kW Module) 200kVA 300kVA 400kVA 500kVA

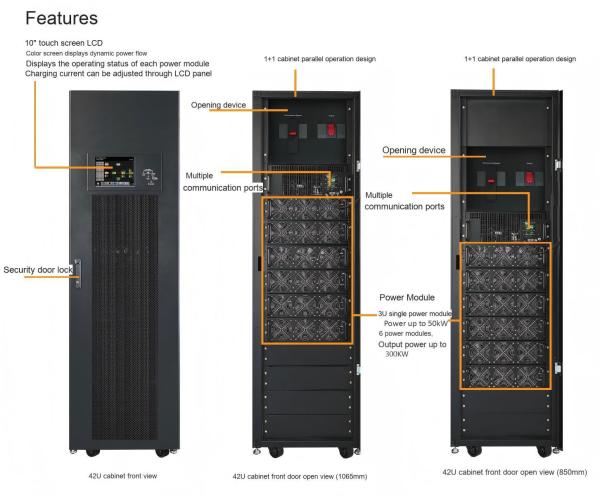

Product Features
3U single power module delivers up to 50kW
Single 42U cabinet: Capacity up to 500kW
Supports N+1 power system redundancy
Modular design reduces MTTR (Mean Time To Repair)
High scalability
Built-in maintenance bypass switch: Easy maintenance without output interruption
High-efficiency dual-conversion online UPS
Flexible battery configuration and adjustable charging current
High overload capability
Walk-in power function
Models A+ 42U-200S (PM-50S), A+ 42U-300 (PM-50), and A+ 42U-500 (PM-50) can be optionally configured with 4 switches.
PARAMETERS
Module A+ 420J-200S (PM-50S) A+ 420J-300S (PM-50S) A+ 420J-300 (PM-50) A+ 420J-400 (PM-50) A+ 420J-500 (PM-50)
Phase 3-in 3-out
Cabinet Capacity* 200kW 300kW 300kW 400kW 500kW
Battery Type External Battery
Power Module Capacity 50kVA/50kW
Max Number of Power Modules 4 6 6 8 10
Wiring Method (Rear) Bottom Entry Top Entry Top/Bottom Entry
Number of Switches 2
INPUT
Rated Voltage 3X380/400/415VAC (3PH+N)
Voltage Range 110-300VAC @50% load,176-276VAC @100% load
Nominal Frequency 50/60Hz (Auto Detection)
Frequency Range 40-70Hz
Power Factor >0.99 @100% load,>0.98 @50% load
THDI <4% @100% load
OUTPUT
Rated Voltage 3X380/400/415VAC (3PH+N)
Voltage Regulation (Static) ≤±1% typical (balanced load),≤±2% typical (unbalanced load)
Nominal Frequency 50/60Hz
Frequency Range (Sync) 46-54Hz or 56-64Hz
Overload Capacity ≤110%: 60 minutes;111%-125%: 10 minutes;126%-150%: 1 minute;＞150%: 200 milliseconds
THD ≤2% (linear load);<4% (non-linear load)
Efficiency 95.50% 95.50% 95.50% 95.50% 95.50%
Battery/Charging
Rated Voltage ±192V-±240V (Selectable)
Maximum Voltage ±240V (12VX40 cells)
Minimum Voltage ±192V (12VX32 cells)
Float Charge Voltage 2.28V/cell (2.25-2.33V selectable)
Equalize Voltage 2.35V/cell
Temperature Compensation Yes
Max Charging Current (per module) 12A (Adjustable) 12A (Adjustable) 12A (Adjustable) 12A (Adjustable) 12A (Adjustable)
Physical Specifications
Cabinet Dimensions (DXWXH, mm) 850X600X2000 850X600X2000 1065X600X2010 1100X600X2010 1065X1000X2000
Net Weight (kg) 275 282 287 308 420
Operating Environment
Operating Temperature 0-40℃
Relative Humidity 0-95% (non-condensing)
Altitude* Rated power <1000m
IP Rating IP20
Control & Management
RS-232/USB Windows series, Linux, Mac
SNMP (Optional) SNMP card and browser management
Safety Standards
Safety IEC/EN 62040-1
EMC IEC/EN 62040-2 Category C3
Note:
If the UPS is installed or used at an altitude above 1000m, the output power must be reduced by 1% per 100m.
Model Description Dimensions (DXWXH, mm) Weight (kg)

PM-50 3-in/3-out 50kVA/50kW Power Module 750X438X130 (3U) 39

PM-50 (S) 3-in/3-out 50kVA/50kW Power Module 650X442X130 (3U) 36
