Specifications
Output Voltage :
9V12V15V19V20V24V36V48V
DC Jack :
5.5*2.1/5.5*2.5mm or custom
Protections :
Short circuit, Overload, Over voltage, Over temperature
Warranty :
3 year
Cable length :
Customized
Certificate :
CE KC UL/cUL VI Class2 TUV GS SAA PSE CCC FCC BS CB
DC Cable :
optional 1.2m, with Magnetic ring/ EMI Filter
Place of Origin :
Guangdong, China
Brand Name :
KSPOWER
Model Number :
KS39DU-xxxyyyy
MOQ :
1pieces
Price :
The price is negotiable
Certification :
UL cUL FCC CE GS KC PSE SAA RoHS CB UKCA etc
Payment Terms :
T/T
Supply Ability :
300000pcs/month
Delivery Time :
15-20 days
Packaging Details :
Small box and Carton
Connection :
Plug In
Input :
100-240Vac 50/60Hz
Description
18W Security Camera Wall Mount Power Supply
Professional 18W security camera wall mount power supply designed for reliable performance in surveillance and electronic applications.
Technical Specifications
Output Mode: Constant voltage
Input Voltage: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output Range: DC5V-36V, 0.01A-3A, 24W Max
Protections: Short circuit, over current, over voltage
Energy Efficiency: DOE, CEC, ERPII MEPS GEMS
Operating Environment: 0-40℃, 5%-95% RH
Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB
Regional Specifications
Country Max. Watt Voltage Range Current Range Safety Standard
US 24W DC5-36V 0.01A-3.0A EN62368/UL 1310
EU 24W DC5-36V 0.01A-3.0A EN62368
UK 24W DC5-36V 0.01A-3.0A EN62368
AU 24W DC5-36V 0.01A-3.0A EN62368
KR 24W DC5-36V 0.01A-3.0A EN62368
JP 24W DC5-36V 0.01A-3.0A EN62368
CN 24W DC5-36V 0.01A-3.0A CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020
Key Features
  • Single channel constant voltage power supply
  • 100% full load burn-in testing
  • Passes LPS (limited power source) requirements
  • 3-year comprehensive warranty
  • Class II power design (without earth pin)
  • Compact size with fully enclosed PC plastic case
  • Fast startup time: <3 seconds
  • High energy efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI
  • Automatic safety protections for over current, over load, and short circuit

FQA

Q1: What is this 18W power supply mainly used for?
A: Specially designed for security cameras, also works for LED strips, routers, amplifiers and other indoor electronic equipment.
Q2: What certifications does it have?
A: UL, cUL, FCC, GS, CCC, PSE, UKCA, SAA, RCM, RoHS, CB and more, fit for global markets.
Q3: What safety protections are included?
A: Short‑circuit, over‑current, over‑voltage, overload protection. Passes LPS requirement, 100% full‑load burn‑in tested.
Q4: What plugs and DC connectors are available?
A: AC plugs for US, EU, UK, AU, JP, CN, Brazil, India etc. Various DC tips are optional, custom connectors supported.
Q5: What are the operating conditions?
A: Indoor‑use only, non‑waterproof. Operating temperature: 0‑40℃, humidity 5%‑95% RH.
Q6: What about warranty and customization?
A: 3‑year comprehensive warranty. OEM & ODM are available for labels, packaging and case design.


Why choose us?

Tailored for Security Cameras
18W wall‑mount power supply optimized for surveillance cameras, delivers stable power for security and other electronic devices.
Complete Safety Mechanism
Built‑in short‑circuit, over‑current, over‑voltage and overload protection. Complies with LPS standard. Class II design without earth pin. 100% full‑load burn‑in test ensures long‑run stability.
Full Global Certifications
UL, FCC, UKCA, SAA, PSE, CCC and other certifications, suitable for worldwide surveillance project deployment.
High‑efficiency & Compact Housing
Single‑channel constant‑voltage output, meets Level VI energy‑efficiency standard. Startup＜3s, compact fully‑enclosed PC case for indoor use.
Flexible Options & Reliable After‑sales
Multiple regional AC plugs and DC connectors optional. 3‑year comprehensive warranty. Support OEM/ODM for custom labels, packaging and housing.

Compatible AC Plugs
US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and other regional standards
Available DC Connectors
5.5*2.1mm, 5.5*2.5mm, 4.0*1.7mm, 3.5*1.35mm, 2.5*0.7mm, XLR, and other customizable options
Applications
Ideal for electric grill ovens, LED strips, audio amplifiers, wireless routers, and audio/video power supplies. Not waterproof - indoor use only.
18W Security Camera Wall Power Adapter with Multi-Voltage Output and 3-Year Warranty

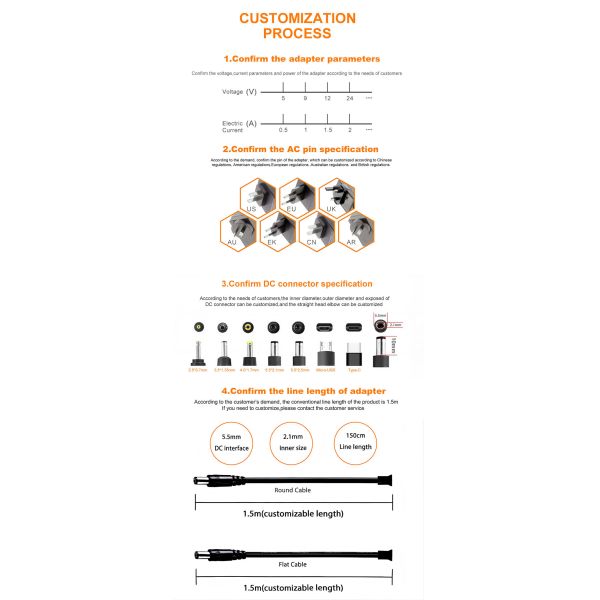

Customization Services
We offer comprehensive OEM and ODM services with custom labeling, packaging, and case design options available to meet your specific requirements.
