12W GS TUV Certified Wall Adapter with 3-Year Warranty and Universal Power Compatibility
12W GS TUV Certified Wall Adapter with 3-Year Warranty and Universal Power Compatibility
12W GS TUV Certified Wall Adapter with 3-Year Warranty and Universal Power Compatibility
12W GS TUV Certified Wall Adapter with 3-Year Warranty and Universal Power Compatibility
12W GS TUV Certified Wall Adapter with 3-Year Warranty and Universal Power Compatibility
12W GS TUV Certified Wall Adapter with 3-Year Warranty and Universal Power Compatibility
12W GS TUV Certified Wall Adapter with 3-Year Warranty and Universal Power Compatibility
12W GS TUV Certified Wall Adapter with 3-Year Warranty and Universal Power Compatibility
12W GS TUV Certified Wall Adapter with 3-Year Warranty and Universal Power Compatibility
12W GS TUV Certified Wall Adapter with 3-Year Warranty and Universal Power Compatibility
12W GS TUV Certified Wall Adapter with 3-Year Warranty and Universal Power Compatibility
12W GS TUV Certified Wall Adapter with 3-Year Warranty and Universal Power Compatibility
Specifications
Application :
led light,CCTV camera,solar charge controller etc
Place of Origin :
Guangdong, China
Brand Name :
KSPOWER
Model Number :
ZF120A-xxxyyyy
MOQ :
100 pieces
Price :
The price is negotiable
Warranty :
3 year
DC Jack :
5.5*2.1/5.5*2.5mm or custom
DC Cable :
optional 1.2m, with Magnetic ring/ EMI Filter
Input :
100-240Vac 50/60Hz
Output voltage :
5V6V8V9V10V12V15V18V19V20V24V30V36V48V
Protections :
Short circuit, Overload, Over voltage, Over temperature
Connection :
Plug In
Certification :
UL cUL FCC CE GS KC PSE SAA RoHS CB UKCA etc
Payment Terms :
T/T
Supply Ability :
300000pcs/month
Delivery Time :
15-20 days
Packaging Details :
Small box and Carton
Description
12W GS TUV Certified Wall Adapter
Professional-grade 12W wall adapter with comprehensive international certifications and safety features.
Technical Specifications
Output Mode: Constant voltage
Input Voltage: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output Range: DC5V-36V, 0.01A-3A, 24W Max
Protections: Short circuit, over current, over voltage
Energy Efficiency: DOE, CEC, ERPII MEPS GEMS
Operating Environment: 0-40℃, 5%-95% RH
Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB
Regional Specifications
Country Max. Watt Voltage Range Current Range Safety Standard
US 24W DC5-36V 0.01A-3.0A EN62368/UL 1310
EU 24W DC5-36V 0.01A-3.0A EN62368
UK 24W DC5-36V 0.01A-3.0A EN62368
AU 24W DC5-36V 0.01A-3.0A EN62368
KR 24W DC5-36V 0.01A-3.0A EN62368
JP 24W DC5-36V 0.01A-3.0A EN62368
CN 24W DC5-36V 0.01A-3.0A CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020
12W GS TUV Certified Wall Adapter with 3-Year Warranty and Universal Power Compatibility
Key Features
  • Single channel constant voltage power supply
  • 100% full load burn-in testing
  • Passes LPS (limited power source) requirements
  • 3-year comprehensive warranty
  • Class II power design (without earth pin)

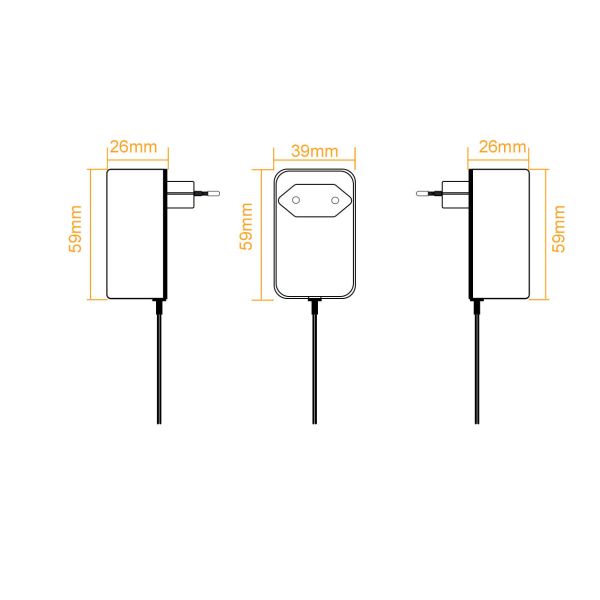

  • Compact size with fully enclosed PC plastic case
  • Fast startup time: <3 seconds
  • High energy efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI
  • Automatic safety protections for over current, over load, and short circuit

FQA

Q1: What is the output specification of this adapter? A: 12W single channel constant voltage DC5V-36V 0.01A-3A max 24W
Q2: What certifications does it have? A: GS TUV UL cUL FCC CCC KC PSE UKCA SAA RCM RoHS CB and other global certifications
Q3: What safety features are included? A: Automatic protections against short circuit over current over voltage and overload passes LPS requirements Class II design no earth pin
Q4: Which plugs and DC connectors are available? A: Compatible with US EU UK AU JP CN Brazil India and other regional AC plugs various DC plugs 5.5*2.1mm etc are optional customization supported
Q5: What are the application scenarios and usage conditions? A: Suitable for electric grill ovens LED strips amplifiers routers etc indoor use only non waterproof operating temperature 0-40℃ humidity 5%-95% RH
Q6: What about warranty and customization services? A: 3-year comprehensive warranty OEM/ODM services are available for custom labels packaging and case design

Why choose us ?
GS TUV & Global Certifications 12W wall adapter with GS TUV certification and full international approvals suitable for global market sales
Reliable Safety Performance Built-in short circuit over current over voltage and overload protections passes LPS requirements Class II design no earth pin 100% full load burn-in tested
High Efficiency & Compact Design Single channel constant voltage output meets DOE/CEC/ErP Level VI efficiency standards fast startup <3s compact fully enclosed PC plastic case
Wide Compatibility & Customization Compatible with various regional AC plugs and DC connectors customizable suitable for LED strips routers amplifiers and more
Trusted After-Sales Support 3-year comprehensive warranty supports OEM/ODM with custom labels packaging and case design
Compatible AC Plugs
US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and other regional standards
Available DC Connectors
  • 5.5*2.1mm
  • 5.5*2.5mm
  • 4.0*1.7mm
  • 3.5*1.35mm
  • 2.5*0.7mm
  • XLR
  • Other customizable options
Applications
Ideal for electric grill ovens, LED strips, audio amplifiers, wireless routers, and audio/video power supplies.
Not waterproof - indoor use only.
12W GS TUV Certified Wall Adapter with 3-Year Warranty and Universal Power Compatibility
Customization Services
We offer comprehensive OEM and ODM services with custom labeling, packaging, and case design options available to meet your specific requirements.
