Specifications
Place of Origin :
Guangdong, China
Brand Name :
KSPOWER
Model Number :
KSLP-60W
Certification :
UL cUL CE Class 2 Class P ENEC Gs TYPE HL...
MOQ :
2 pieces
Price :
$31.20/pieces 2-499 pieces
Warranty(Year) :
5-Year
Lighting solutions service :
Lighting and circuitry design
Output Power :
60W
Output Type :
PWM
Input Voltage :
100-277V
Output Frequency :
50/60Hz
Output Current :
1.25A-5A
Product Name :
24V 36V 48V 0-10V PWM Resistance Dimming Power Supply
Output :
12V 24V 36V 48V 60W
Application :
Street Light, Tunnel Light, Wall Lamp,Spot Light
IP Rate :
IP65,IP67
Material :
Aluminium Case
Warranty :
5 Years
Output Mode :
Pwm Output
Efficiency :
≥ 89%
Type :
Constant Voltage
Description
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
Products Description
100V-277VAC to 12V60W Triac Phase cut Dimmable LED Driver 24V 36V 48V 0-10V PWM Resistance Dimming Power Supply
The KSPOWER - LP series 5 in 1 dimmable 60W led driver is one constant voltage solution, single channel, accept universal AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt optional with greater operating efficiency and higher PFC function. The class p dimming power supply use low profile metal aluminum case, dry and damp, makes the dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 2K frequency PWM output and IP67 waterproof environment protection rated for indoor or outdoor use, the 0/1-10V and triac dimmable drivers provide 5 years warranty and outstanding led dimming performance.
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service
Input Voltage
100~277V AC 47~63Hz
Power Factor
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.
KSLP-60W
Output Voltage
12V/ 24V/ 36V/ 48V
Rated Current
5A/2.5A/1.67A/1.25A
Rated Power
60W
Ripple & Noise (max.)
200mVp-p/ 250mVp-p

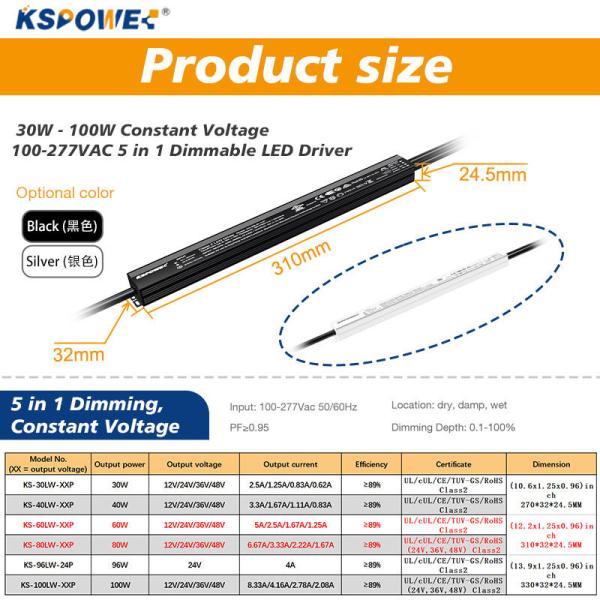

Dimension(L*W*H)
310*32*24.5MM/ 12.2*1.25*0.96 inch
Show Details
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
Applications
The ultra slim class 2 led driver use low profile metal aluminum case with junction box makes the led dimming driver power solutions for LED strips, LED sign and landscape lighting.
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
NOW,GET MORE INFORMATIONS OF US !
Company Profile
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
Working Room
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
Specification:
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
Nearly ¥3 Million Is Spent On Certification, Just To Make Customers Trust Our Quality
Exhibition
12V 60W Phase Cut Triac Dimmable LED Driver 24V 36V 48V Waterproof LED Driver
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package
Piece/Carton(pcs)
Piece Weight(KG)
OEM package
50
0.26
Dimension/Brown Box(mm)
Dimension/Carton(mm)
Gross Weight/Carton(KG)
155*85*35
455*370*175
14
