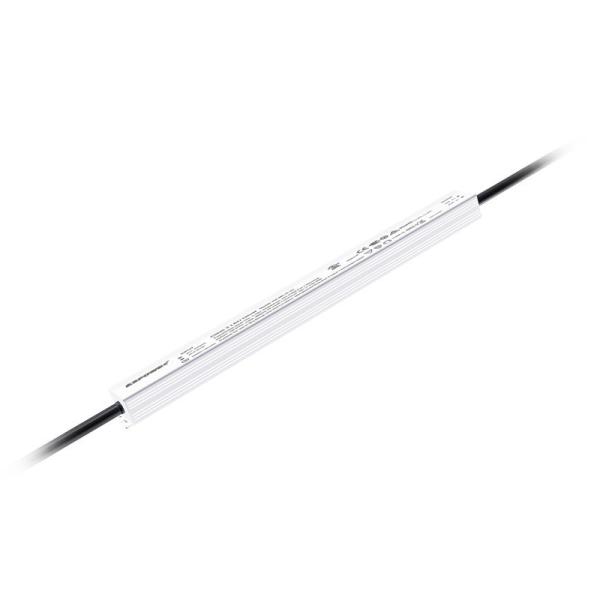

Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Specifications
Place of Origin :
Guangdong, China
Brand Name :
KSPOWER
Certification :
UL cUL CE Class 2 Class P ENEC Gs TYPE HL...
MOQ :
10 pieces
Price :
$29/pieces 10-499 pieces
Warranty(Year) :
5-Year
Lighting solutions service :
Lighting and circuitry design
Type :
MANUAL SWITCH, Constant Voltage
Product Name :
80Watt Watts pwm LED Driver
Output :
12V 24V 36V 48V 80W
Application :
Street Light, Tunnel Light, Wall Lamp,Spot Light
IP Rate :
IP65,IP67
Material :
Aluminium Case
Warranty :
5 Years
Output Mode :
Pwm Output
Efficiency :
≥ 89%
Description
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Products Description
transformer custom 48v output waterproof electronic industry high efficiency ultra slim led driver 80W 80Watt Watts pwm dimmers
The KSPOWER - LO series 4 in 1 dimmable led driver 80 Watt is one constant voltage slim housing solution, single channel, accept standard AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt optional with greater operating efficiency and higher PFC function. The class 2 dimming power transformer use low profile metal aluminum case, dry and damp, makes the 0-10V 1-10V PWM dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PWM output and IP65 waterproof environment protection rated for indoor or outdoor use, the UL cUL CE GS certified dimmable led drivers provide 5 years warranty and outstanding led dimming performance.
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Features:
* Height to 24.5 mm
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt options
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: 0/1-10V or Resistor PWM Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP65 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service
Input Voltage
100~277V AC 47~63Hz
Power Factor
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.
KSLO-80W
Output Voltage
12V/ 24V/ 36V/ 48V
Rated Current
6.67A/ 3.33A/ 2.22A/ 1.67A
Rated Power
80W
Ripple & Noise (max.)
200mVp-p/ 250mVp-p

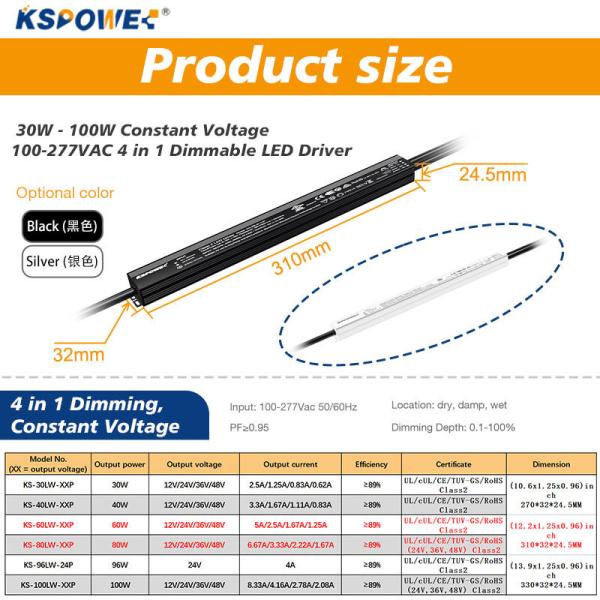

Dimension(L*W*H)
310*32*24.5MM/ 12.2*1.25*0.96 inch
Show Details
Dimming Connect Drawing
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Applications
The ultra slim class 2 led driver use low profile metal aluminum case with junction box makes the led dimming driver power solutions for LED strips, LED sign and landscape lighting.
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
NOW,GET MORE INFORMATIONS OF US !
Company Profile
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Working Room
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Exhibition
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Certifications
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Applications
Transformer 48v 0-10v Dimmable Driver Waterproof Electronic Industry 80w Ultra Slim Led Driver
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package
Piece/Carton(pcs)
Piece Weight(KG)
OEM package
50
0.26
Dimension/Brown Box(mm)
Dimension/Carton(mm)
Gross Weight/Carton(KG)
155*85*35
455*370*175
14
