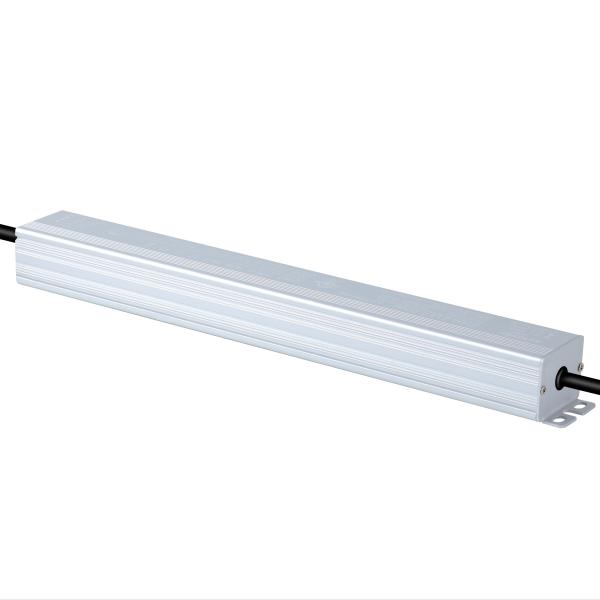

200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
Specifications
Place of Origin :
Guangdong, China
Brand Name :
KSPOWER
Model Number :
KSHL
Certification :
UL/cUL/CE/TUV-GS/RoHS/Class2
MOQ :
5 pieces
Price :
$14.80-64/pieces
Warranty(Year) :
5-Year
Lighting solutions service :
Lighting and circuitry design
Output Power :
30W-320W
Output Type :
PWM
Input Voltage :
100-277V
Output Frequency :
50/60Hz
Output Current :
0.62A-16.66A
Product Name :
Dimming led driver
Material :
Aluminum Case
Warranty :
5 years
Protection :
OCP, OVP, SCP, OTP
IP Rate :
IP65:IP67
Efficiency :
≥91%
Power :
30w 40w 60w 80w 96w 100w 120w 150w 180w 200w 240w 300w 320w
Output :
12V 24V 36V 48V
Application :
LED Strip Light,Pendants, Linears,Cove Lights
Description


200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver

Features:
− Universal AC input voltage 100-277VAC − Efficiency up to 91% − Built-in active PFC function − Single channel & constant voltage mode and PWM style output − Protection: OCP, OVP, SCP, OTP − Limited Power Source − cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

− Function options: 1. Non-dimmable
2. Triac/Phase-cut Dimmable
3. 4 in 1 dimmable (0-10V,1-10V,PWM,resistance)
4. 5 in 1 dimmable (0-10V,1-10V,TRIAC,PWM,resistance)
− Typical lifetime > 50000 hours − 5 years warranty − Available with or without integrated Junction Box − IP65 IP67 Rated Enclosure for Indoor and Outdoor Use − Wiring Compartments with Knock-Outs for Clean and Easy Installation

Input Voltage
100~277V AC 47~63Hz



Power Factor
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load



NO.
KSHL



Output Voltage
12volts/ 24volts/ 36volts/48volts



Rated Current
0.62A-16.66A



Rated Power
30w 40w 60w 80w 96w 100w 120w 150w 180w 200w 240w 300w 320w



Certification
UL/cUL/CE/TUV-GS/RoHS/FCC/Class2








200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver

Dimming Type Series Power Model
(xx=output voltage)		 Output voltage&
Output current		 Input voltage Size
12V 24V 36V 48V
4 in 1 dimming HO 40W KS-40A-xxO 3.3A 1.67A 1.11A 0.83A 100~277V
50/60Hz		 188*58*36mm
60W KS-60A-xxO 5A 2.5A 1.67A 1.25A
80W KS-80A-xxO 6.67A 3.33A 2.22A 1.67A
96W KS-96A-24O / 4A / / 213*58*36mm
100W KS-100A-xxO 8.33A 4.16A 2.78A 2.08A
120W KS-120A-xxO 10A 5A 3.33A 2.5A
150W KS-150A-xxO 12.5A 6.25A 4.16A 3.13A
180W KS-180A-12O 15A / / / 234*68*41mm
200W KS-200A-xxO 16.66A 8.33A 5.55A 4.16A
240W KS-240A-xxO 20A 10A 6.66A 5A 258*68*41mm
300W KS-300A-24O / 12.5A / /
320W KS-320A-xxO / 13.33A 8.88A 6.66A



Product packaging

1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
