60W 12V 5A Non Dimmable LED Driver with Metal Case and ETL CE Certification
60W 12V 5A Non Dimmable LED Driver with Metal Case and ETL CE Certification
60W 12V 5A Non Dimmable LED Driver with Metal Case and ETL CE Certification
60W 12V 5A Non Dimmable LED Driver with Metal Case and ETL CE Certification
60W 12V 5A Non Dimmable LED Driver with Metal Case and ETL CE Certification
60W 12V 5A Non Dimmable LED Driver with Metal Case and ETL CE Certification
Specifications
Color :
White, Silver
product name :
20Watt 40Watt 60Watt 80Watt 96Watt Power supplier LED Driver
material :
iron case
color :
Silver, Black, White, Blue, Gray or custom.
Input Voltage(V) :
100-120Vac & 200-240Vac
Protections :
OCP, OVP, SCP, OTP
Output Voltage :
12V
dimension :
200*85*37mm (L*W*H)
Application :
LED Strip Light
Current :
5A
Lighting solutions service :
Lighting and circuitry design
warranty :
3 years
efficiency :
>90%
certification :
ETL CE ROHS UL Class2
Place of Origin :
Guangdong, China
Brand Name :
KSPOWER
MOQ :
5 pieces
Price :
The price is negotiable
Warranty(Year) :
3-Year
Model Number :
ZH-EAC60W12-W
Certification :
ETL
Payment Terms :
T/T
Supply Ability :
300000pcs/monthly
Delivery Time :
15-20 days
Packaging Details :
Brown box and Carton
Description
DC12V5A 60W Non Dimmable LED Driver Metal Case LED Driver With ETL CE Certified
Product Description

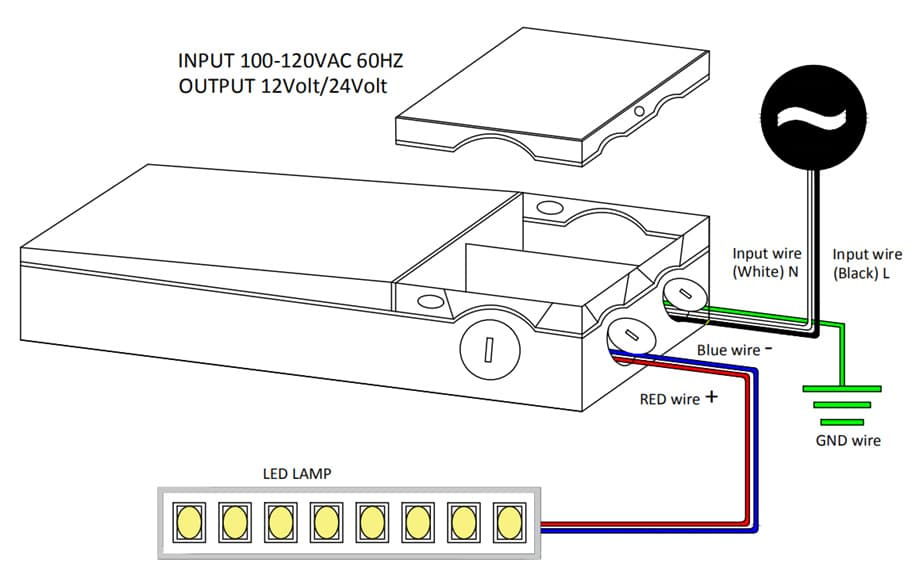

The KSPOWER - E series Non-dimmable LED driver provides a constant voltage solution with single channel operation. It accepts AC input voltage range from 100V to 120V, delivering 12V output voltage with junction box. This switching LED power supply is compatible with single color or RGB light strips, string lights, wireless routers, ADSL Cat, HUB, switch, security cameras, speakers, receivers and audio/video power supplies.

Key Specifications
Input Voltage 120Vac 60Hz & 230Vac 50Hz
Output Voltage 12V/24V
Rated Current 5A/2.5A
Rated Power 60W
Efficiency ≥ 90%
Working Temperature -40℃ to +50℃
Working Relative Humidity 10%-100%Rh
Dimension (L*W*H) 200*85*37mm / 7.88*3.35*1.46in
Certificate ETL/cETL/Class2
Product Features
  • 100-120Vac 60Hz & 200-240Vac 50Hz Input
  • 12V/24V PWM Output
  • Single Channel & Constant Voltage mode
  • Metal Iron Case with junction box
  • ETL cETL Class2 CE Certified
  • LISTED Enclosure with input and output wire
  • Compatible with Forward & Reverse Phase, MLV, ELV
  • High Power Factor (PF≥0.95)
  • Full Dimming Range: 0-100%
  • Flicker-Free operation
  • Continuous, Smooth & Stable performance
  • Protections: OCP, OVP, SCP, OTP
  • For Dry Indoor Location
  • 3 Years Warranty

Why choose us?

Triac & Phase-cut/Non-dimming,two modes optional

Indoor use led driver power supply

Metal iron shell,economical and durable

Input 100-120V,output 12V24VDC,20-96W

ETL/cETL Class2 certificate

Packaging Information
Package Type Piece/Carton (pcs) Piece Weight (KG)
OEM package 50 0.26
Dimension/Brown Box (mm) Dimension/Carton (mm) Gross Weight/Carton (KG)
155*85*35 455*370*175 14
60W 12V 5A Non Dimmable LED Driver with Metal Case and ETL CE Certification 60W 12V 5A Non Dimmable LED Driver with Metal Case and ETL CE Certification
Product Models
Dimming Type Series Power Model Output Voltage Output Current Input Voltage PF Location Size
Triac/Phase-cut ET 20W ZH-EAC20W12-T 12V 1.7A 100-120V 60Hz&200-240V 50Hz ≥0.95 Dry/Damp/Wet 200*85*37mm
20W ZH-EAC20W24-T 24V 0.84A 100-120V 60Hz&200-240V 50Hz ≥0.95 Dry/Damp/Wet 200*85*37mm
40W ZH-EAC40W12-T 12V 3.34A 100-120V 60Hz&200-240V 50Hz ≥0.95 Dry/Damp/Wet 200*85*37mm
40W ZH-EAC40W24-T 24V 1.67A 100-120V 60Hz&200-240V 50Hz ≥0.95 Dry/Damp/Wet 200*85*37mm
60W ZH-EAC60W12-T 12V 5A 100-120V 60Hz&200-240V 50Hz ≥0.95 Dry/Damp/Wet 200*85*37mm
60W ZH-EAC60W24-T 24V 2.5A 100-120V 60Hz&200-240V 50Hz ≥0.95 Dry/Damp/Wet 200*85*37mm
80W ZH-EAC80W24-T 24V 3.33A 100-120V 60Hz&200-240V 50Hz ≥0.95 Dry/Damp/Wet 200*85*37mm
96W ZH-EA100W24-T 24V 4A 100-120V 60Hz&200-240V 50Hz ≥0.95 Dry/Damp/Wet 200*85*37mm
Note: Accept LOGO/color/package/case customization, OEM and ODM service
