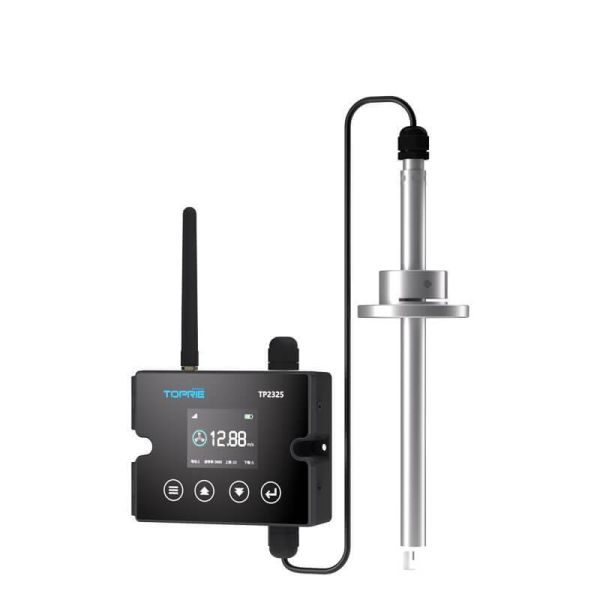

Lab Air Speed Sensor Split Type Wind Speed Sensor Hot Air Duct Anemometer
Lab Air Speed Sensor Split Type Wind Speed Sensor Hot Air Duct Anemometer
Specifications
Protocol :
Modbus RTU,Modbus TCP
Material :
ABS+metal
Brand Name :
TOPRIE
Model Number :
TP2325
Certification :
CE，ROHS
Place of Origin :
China、
MOQ :
1 piece
Price :
USD 90.00~ USD 110.00 per piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100 pieces per day
Delivery Time :
5-8 work days
Packaging Details :
Packed in paper box
Warranty :
12 months
Display :
2'' LCD touch screen
accuracy :
±3%
Communication :
RS485,LoRa,4-20mA
keywords :
Anemometer
Color :
Black
OEM :
Available
range :
0-30m/s
Power supply :
DC8V~28V
Dimension :
110*83*32mm
Description

Split-type Wind Speed Sensor Hot Air Duct Anemometer For Lab

High-precision wind speed sensor with 32-bit microprocessor, supporting both wired and wireless communication for real-time monitoring and intuitive display interface.

Lab Air Speed Sensor Split Type Wind Speed Sensor Hot Air Duct Anemometer

Key Features & Advantages

  • High Sensitivity Design: Utilizes hot-film wind speed chip technology for precise measurements
  • Dust-Proof Construction: Reduces sensitivity to dust and contaminants, lowering maintenance costs
  • Long-Term Stability: High-stability resistive materials maintain consistent performance
  • Temperature Compensation: Dedicated temperature-measuring resistor design minimizes drift
  • Multi-Protocol Support: RS485, LoRa, and 4-20mA output options
  • Wide Operating Range: Functions in temperatures from -30℃ to 60℃
±3%
Accuracy
32-bit
Processor
IP65
Protection

Core Technology

Equipped with advanced technology for reliable performance:

  • 32-bit High-Speed Microprocessor: Strong data processing capability and excellent real-time performance
  • Dual Model Support: TP2324 (0-25m/s) and TP2325 (0-30m/s) variants available
  • Precision Analog Output: 4-20mA output with ±0.1% accuracy
  • Advanced Display: 2.0-inch LCD screen with real-time data visualization
  • Robust Communication: Supports MODBUS protocol for seamless integration

Technical Specifications

Parameter Specifications
Communication Method Signal output: RS485, LoRa, 4-20mA
Power Supply DC 8-28V, 1A
Wind Speed Measurement Measurement range:
• TP2324: 0~25m/s
• TP2325: 0~30m/s
Measurement accuracy: ±3%
Analog Output Output range: 4~20 mA
Output accuracy: ±0.1%
Display Screen: 2.0-inch LCD
Display content: Real-time wind speed, LoRa signal, basic configuration parameters (baud rate), device address, alarm limits
Environment Operating environment:
• Temperature: -30℃ ~ 60℃
• Humidity: 0 ~ 80% RH, no condensation

Storage environment:
• Temperature: -25℃ ~ 70℃
• Humidity: 0 ~ 90% RH, no condensation
Hardware Performance • Power supply: DC 8~28V
• Display: 2.0-inch LCD
• Controls: Touch control buttons
• Protection rating: IP65
• Fire rating: V0
• Housing material: ABS
• Weight: 300g
• Dimensions: 110×83×32mm
Software Performance • TYPE-C firmware upgrades
• Real-time LCD data display
• Bluetooth, TYPE-C, and touch button parameter settings
• RS485 communication with MODBUS protocol
• LORA interval reporting
• Upper and lower limit alarms
• Wind speed correction

Application Scenarios

H
HVAC Systems
Air flow monitoring
F
Filter Monitoring
Pressure drop measurement
P
Power Plants
Flue gas treatment
A
Aviation
Pipeline air flow
T
Textile Industry
Process ventilation
P
Pharmaceutical
Clean environments
L
Laboratories
Biological safety
A
Agriculture
Livestock breeding
