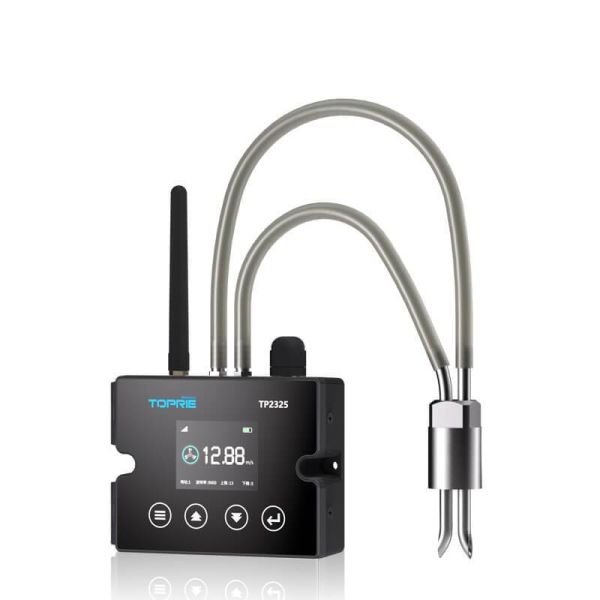

Modbus Air Differential Pressure Transmitter Airflow Meter RS485 4-20mA LoRa Thermo Anemometer
Modbus Air Differential Pressure Transmitter Airflow Meter RS485 4-20mA LoRa Thermo Anemometer
Specifications
Brand Name :
TOPRIE
Model Number :
TP2324
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 piece
Price :
USD 90.00~USD 125.00
Payment Terms :
,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100 pieces per day
Delivery Time :
5-8 work days
Packaging Details :
Packed in paper carton
Keywords :
thermo-anemometer
dimension :
110*83*32mm
Communication :
RS485,LoRa,4-20mA analog input
Analog output :
range:4-20mA accuracy:0.1%F.S
Display :
2 inches LCD screen
Power supply :
DC8V~28V
range :
TP2324 version 0-25m/s TP2325 version 30m/s accuracy 3%F.S
OEM :
Available
Warranty :
12 months
Description
TP2324

High Quality Air Differential Pressure Transmitter Modbus RS485 4-20mA LoRa Thermo-Anemometer

For Exhaust Duct System | Industrial-grade Differential Pressure Type Wind Speed Sensor

The TP2324 Industrial-grade Differential Pressure Type Wind Speed Sensor boasts a sleek, minimalist design and is compact and portable.The TP2324 supports both wired and wireless communication. For wired communication, it offers RS485_MODBUS and 4-20mA data output; for wireless communication, it supports WIFI_MODBUS data acquisition and LoRa/LoRaWAN automatic data upload to IoT platforms. It is equipped with an LCD screen that displays real-time wind speed, air volume and differential pressure, and allows parameter configuration via RS485, Bluetooth, Type-C port and physical buttons.
Modbus Air Differential Pressure Transmitter Airflow Meter RS485 4-20mA LoRa Thermo Anemometer

Technical Specifications

Parameter Category Specification Details
Communication Method Signal output: RS485, LoRa, 4-20mA
Power Supply DC 8-28V, 1A
Wind Speed Measurement Measurement range: TP2324 supports 0~25m/s, TP2325 supports 0~30m/s
Measurement accuracy: ±3%
Analog Output Output range: 4~20 mA
Output accuracy: ±0.1%

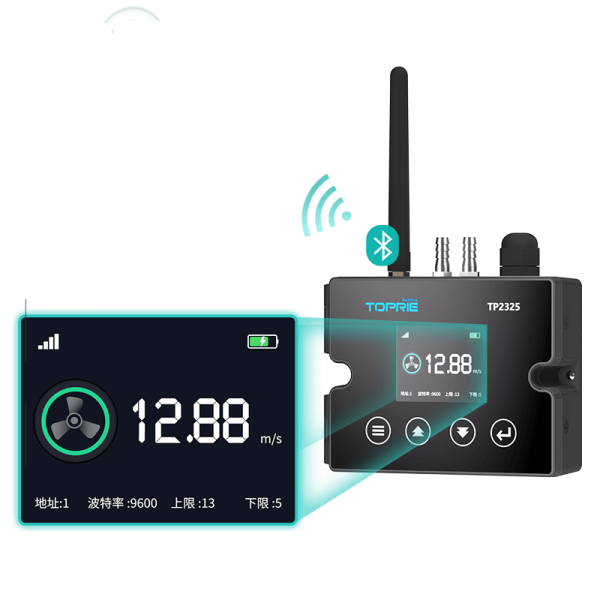

Display 2.0-inch LCD screen
Display content: Real-time wind speed, LoRa signal, basic configuration parameters (baud rate), device address, alarm upper/lower limits
Environment Operating environment: Temperature -30℃ ~ 60℃, Humidity 0 ~ 80% RH (no condensation)
Storage environment: Temperature -25℃ ~ 70℃, Humidity 0 ~ 90% RH (no condensation)
Hardware Performance Power supply: DC 8~28V; 2.0-inch LCD display; Touch control buttons;
Protection rating: IP65; Fire rating: V0; Housing material: ABS; Weight: 300g; Dimensions: 110×83×32mm
Software Performance Supports TYPE-C firmware upgrades, real-time LCD data display, Bluetooth, TYPE-C, and touch button settings, RS485 communication, MODBUS protocol, LORA interval reporting, upper/lower limit alarms, and wind speed correction.
Modbus Air Differential Pressure Transmitter Airflow Meter RS485 4-20mA LoRa Thermo Anemometer

Functional Features

This product features intuitive display, user-friendly interface and simple operation. Its main functions and features are as follows:

  • Real-time Monitoring & Display The device can detect real-time wind speed, air volume and differential pressure, with intuitive display via the interface.
  • Flexible Communication Options In terms of communication functions, the wired mode supports the RS485-MODBUS port for real-time data acquisition; the wireless mode supports WIFI_MODBUS data acquisition and LoRa/LoRaWAN automatic data upload to IoT platforms.
  • Versatile Control Interface In terms of control functions, it is furnished with a 4-20mA analog output control interface, and allows parameter modification via physical buttons, Type-C port and Bluetooth.
  • High-Performance Processing It adopts a 32-bit high-speed microprocessor, delivering robust data processing capability, high measurement accuracy and excellent real-time performance.

Application Scenarios

It is mainly applicable to various industrial settings such as boilers, refrigeration systems, HVAC systems and ventilation ducts. Characterised by simple and convenient operation as well as a clear and intuitive interface, the sensor also features small size and light weight.

I
Industrial Boilers
R
Refrigeration Systems
H
HVAC Systems
V
Ventilation Ducts
T
Textile Industry
F
Filter Monitoring
A
Agriculture
