Intelligent WIFI Dust Particle Counter RJ45 4G Dust Size Analyzer PM2.5 PM5 PM10 Air Quality Monitor
Intelligent WIFI Dust Particle Counter RJ45 4G Dust Size Analyzer PM2.5 PM5 PM10 Air Quality Monitor
Specifications
Brand Name :
TOPRIE
Model Number :
TP505
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 piece
Price :
USD 1000.00~USD 1100.00 per piece
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability :
100 pieces per day
Delivery Time :
5-8 work days
Packaging Details :
Packed in paper carton
Description

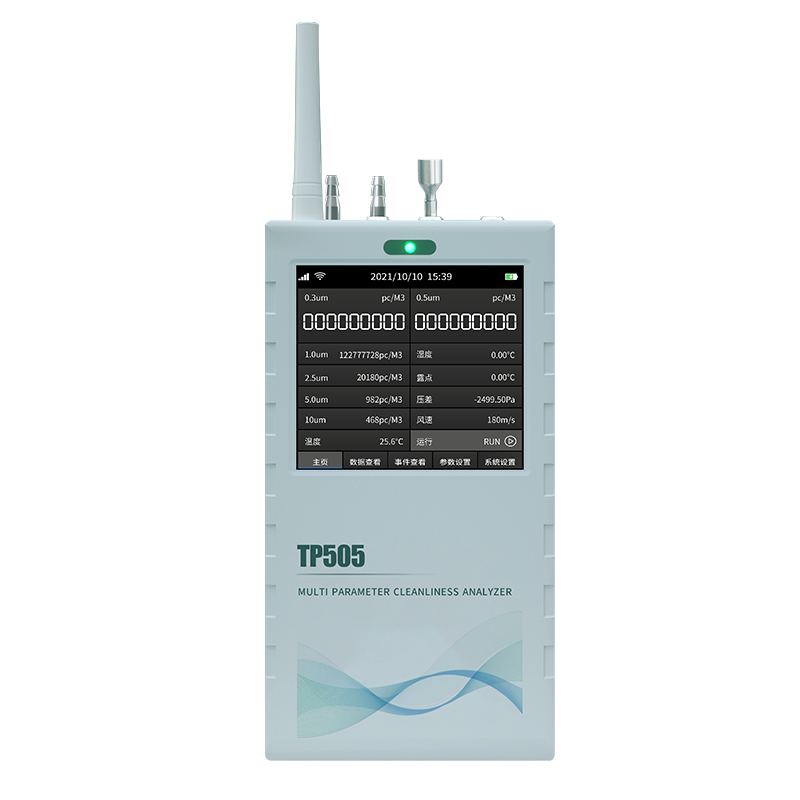

High Quality Intelligent WIFI 2.83L Dust Particle Counter
TP505 dust particle counter is the industry's first dual-function instrument that combines online and handheld operation. It integrates 6 measurable parameters (dust particles, temperature, humidity, differential pressure, dew point temperature, wind speed) and 11 digital displays into one device.

Intelligent WIFI Dust Particle Counter RJ45 4G Dust Size Analyzer PM2.5 PM5 PM10 Air Quality Monitor

Product Specifications
Parameter Item Details
Charging Port Versatility
  • Charging Voltage: DC5V
  • Charging Current: 1.5A
  • Charging Interface: TYPE-C
External Sensor Interface
  • Temperature and Humidity: 4-pin aviation connector
    • Interface Type: I2C
    • Temperature Range: -20-60°C (Accuracy: ±0.5°C for 0-50°C, ±0.5°C otherwise)
    • Humidity Range: 0-100%RH (Accuracy: ±2%RH for 20%-80%, ±3%RH otherwise)
  • Supply Voltage: DC3.3V
  • Dew Point (Optional): 5-pin aviation connector
    • Interface Type: TTL
    • Brand Options:
      1. Vaisala DMT143: Temperature Range: -70-60°C, Accuracy: ±2°C
      2. Rotronic HC2-SDP: Range: 40-20°C, Accuracy: ±2°C
  • Supply Voltage: DC3.3V (12V optional)
  • Wind Speed/Noise/Other Gas Sensors (Optional): 5-pin aviation connector
    • Interface Type: RS485
    • Supply Voltage: DC3.3V (12V optional)
Data Transmission Mode
  • Wireless Communication: 2G, 4G, WIFI (choose one) + ZGBEE/THREAD
  • Wired Communication: RJ45
Particle Detection Parameters
  • Particulate Matter Detection Range: 0.3-10μm (0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm)
  • Flow Rate: 2.83L/min ±5%
  • Error: ≤±30%
  • Resolution: 1mg/m³
  • Particle Range: 200,000 particles/L
Pressure Sensor Measurement Parameters
  • Pressure Range: -500 to +500 Pa
  • Interface: 1/4-inch international pagoda-type interface
  • Error Range: 1%
  • Accuracy: ±5Pa
Detection Period
  • 1-60 MIN (Adjustable)
Hardware Performance
  • Environmentally Friendly Flame-Retardant Plastic Housing
  • Customizable Color, Default: Grey
  • USB TYPE-C Interface for Charging, Debugging and Upgrading
  • Power On/Off Indicator Light
  • Capacitive Touch Screen
  • Display: 480×480 Color LCD Screen
  • Storage: 8G Capacity
  • Drawer-Type SIM Card Slot
  • SMA Internal Thread Male Pin Female Seat Antenna Connector
  • Standby Current: 200mA
  • Current When Particle Detection is Activated: 550mA
  • Weight: 800g
  • Dimensions: 215×114×48mm
  • Operating Environment: -10°C~60°C, 0%-95%RH
  • Storage Environment: -20°C-65°C, 30%-80%RH
Software Performance
  • 4G, LAN Network Connection Platform
  • WIFI Local LAN Server
  • Supports Data Upload via THREAD, ZIGBEE, LORA Wireless LAN
  • Large-Capacity Historical Storage
  • 8GB Built-in Storage
  • Supports USB Data Query (TP Assistant)
  • Supports Historical Data Query on Screen
  • 4G and Network Cable Interfaces Support MODBUS RTU Protocol for Cloud Platform Connection
  • Network Port Supports MODBUS TCP Server Function
  • Network Port Supports MODBUS RTU Server Connection
  • Wireless LAN Active Reporting Protocol Uses MODBUS Protocol for Active Reporting
Note: All specifications are subject to change without prior notice. Items marked as "Optional" may require additional configuration or cost.
Application Areas
Food Enterprises Research Institutions Laboratories Operating Rooms Factory Workshops New Energy Lithium Battery Industry Pharmaceutical Workshops Semiconductors Environmental Protection Inspection Institutes Microbiology Optics Precision Machinery Processing
