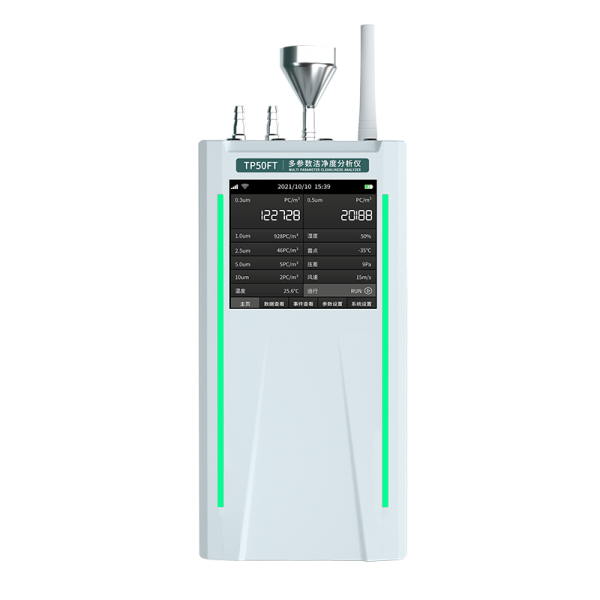

Pm2.5 PM5 PM10 PM0.3 Dust Particle Counter RJ45 4G Multi Parameter Air Particle Size Analyzer
Pm2.5 PM5 PM10 PM0.3 Dust Particle Counter RJ45 4G Multi Parameter Air Particle Size Analyzer
Specifications
Flow rate :
28.3L
Recording time :
1~60min
communication :
4G,WiFi & RJ45
Display :
color touch screen 480*480 pixel
Power supply :
DC24V
keywords :
Dust particle counters
Color :
Grey
Measuring object :
temperature, humidity, particle, differential, air flow etc..
Material :
ABS
OEM :
Available
Brand Name :
TOPRIE
Model Number :
TP50FT
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability :
100 pieces per day
Delivery Time :
5-8 work days
Packaging Details :
packed in paper carton
Protocol :
MQTT,modbus TCP
Memory :
8GB
Warranty :
12 months
Dimension :
331.9*143.79*87mm
Particle size :
PM0.3μm, 0.5μm ,1.0μm,2.5μm,5.0μm,10.0μm range:10000000 particles/L
Description

High Quality Dust Particle Counter 28.3L Air Particle Size Analyzer

Professional Cleanroom Monitoring Solution
A state-regulated measuring instrument used to accurately measure the number of dust particles per unit volume and particle size distribution in clean environments. Essential for maintaining ISO-classified cleanrooms and controlled environments.
Pm2.5 PM5 PM10 PM0.3 Dust Particle Counter RJ45 4G Multi Parameter Air Particle Size Analyzer

Product Specifications

Parameter Specifications
Power Port Versatility
  • Power Supply Voltage: DC24V
  • Power Supply Current: 2A
  • Power Supply Interface: DC24V Round Hole Plug
External Sensor Interface
  • Temperature and Humidity: 4-pin Aviation Connector
    • Interface Type: I2C
    • Temperature Range: -20-60°C
      Accuracy: ±0.3°C (0-50°C), ±0.5°C for other ranges
    • Humidity Range: 0-100%RH
      Accuracy: ±2%RH (20%-80%), ±3%RH for other ranges
  • Dew Point (Optional): 5-pin Aviation Connector
    • Interface Type: TTL
    • Optional Brand:
      Vaisala DMT143/DMT143L: Range: -70-60°C, Accuracy: ±2°C
  • Wind Speed/Noise/Other Gas Sensors (Optional): 5-pin Aviation Connector
    • Interface Type: RS485
Data Transmission Mode
  • Wireless Communication: 4G, WIFI (choose one) + LORA, THREAD, ZIGBEE (choose one)
  • Wired Communication: RJ45
Particle Detection Parameters
  • Particulate Matter Detection Range: 0.3-10μm
    Sizes: 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm
  • Resolution: 1pcs/m³
  • Particle Measurement Range: 1,000,000 particles/L
  • Flow Rate: 28.3L/MIN
Pressure Sensor Measurement Parameters
  • Pressure Range: -500 to +500Pa
  • Interface: 1/4-inch International Pagoda-type Interface
  • Error Range: 1%
  • Accuracy: ±5Pa
Detection Cycle
  • 1-60MIN (Adjustable)
Hardware Performance
  • Environmentally Friendly Flame-Retardant Plastic Enclosure
  • Customizable Colors, Default: Grey
  • USB TYPE-C Interface for Debugging and Upgrading
  • Colour-Changing Light Strip for Status Feedback
  • Capacitive Touch Screen
  • Display: 480×480 Colour LCD Screen
  • Storage: 8G Capacity
  • Drawer-Type SIM Card Slot
  • SMA Female/Male Pin Header Antenna Connector
  • Standby Current: 200mA
  • Current When Particle Detection is Enabled: 150mA
  • Dimensions as per the Three-View Drawing Above
  • Operating Environment: -10°C ~ 60°C, 0%-95%RH
  • Storage Environment: -20°C ~ 65°C, 30%-80%RH
Software Performance
  • 4G, LAN Network Connection Platform
  • WIFI Local LAN Server
  • Supports Data Upload via THREAD, ZIGBEE, LORA Wireless LAN
  • Large-Capacity Historical Storage
  • 8GB Built-in Storage
  • Supports Data Query via USB (TIP Assistant)
  • Supports Historical Data Query on the Screen
  • 4G and Network Cable Interfaces Support MODBUS RTU Protocol for Cloud Platform Connection
  • Network Port Supports MODBUS TCP Server Function
  • Network Port Supports MODBUS RTU Server Connection
  • Wireless LAN Active Reporting Protocol Uses MODBUS Protocol for Active Reporting
Important Note
All specifications are subject to change without prior notice. Items marked as "Optional" may require additional configuration or cost. For detailed technical specifications and compatibility information, please consult with our technical support team.

Key Advantages

1
Advanced Laser Scattering Technology
Utilizes laser scattering principle for high-standard dust particle measurement with exceptional accuracy and reliability.
2
Enhanced Measurement Accuracy
Integrated external temperature and humidity sensor provides accuracy compensation for reliable measurements in varying environmental conditions.
3
High-Stability Sampling System
Features a high-stability, long-life special turbine fan with 28.3L/min constant sampling flow rate for consistent results.
4
Comprehensive Particle Sizing
Measures 6 particle sizes simultaneously: 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm for detailed environmental analysis.
5
Flexible Connectivity Options
Multiple wireless transmission protocols: 4G, WIFI, LORA, ZIGBEE (THREAD) plus wired RJ45 connectivity.
6
Ample Data Storage Capacity
Large-capacity historical storage with 8GB built-in memory for extensive data recording and analysis.
7
Compliance with International Standards
National standard over-limit alarm with support for ISO14644-1 international standard and GB/T16292-1996 national standard.
8
Portable & User-Friendly Design
800g ultra-lightweight handheld design with compact, elegant appearance and intuitive capacitive touch screen interface.

Application Areas

This advanced particle counter is widely utilized across various industries and sectors where cleanroom monitoring and air quality control are critical:
Blood Centers & Medical Facilities Epidemic Prevention Stations CDC (Disease Control Centers) Quality Supervision Institutes Electronics Manufacturing New Energy Lithium Battery Industry Pharmaceutical Cleanrooms Semiconductor Fabrication Optical & Precision Machinery Plastics Manufacturing Painting & Coating Facilities Hospital Operating Rooms Environmental Protection Inspection & Testing Institutes Color Tube Manufacturing Microbiology Laboratories Scientific Research Departments Food Processing Facilities Biotechnology Companies
