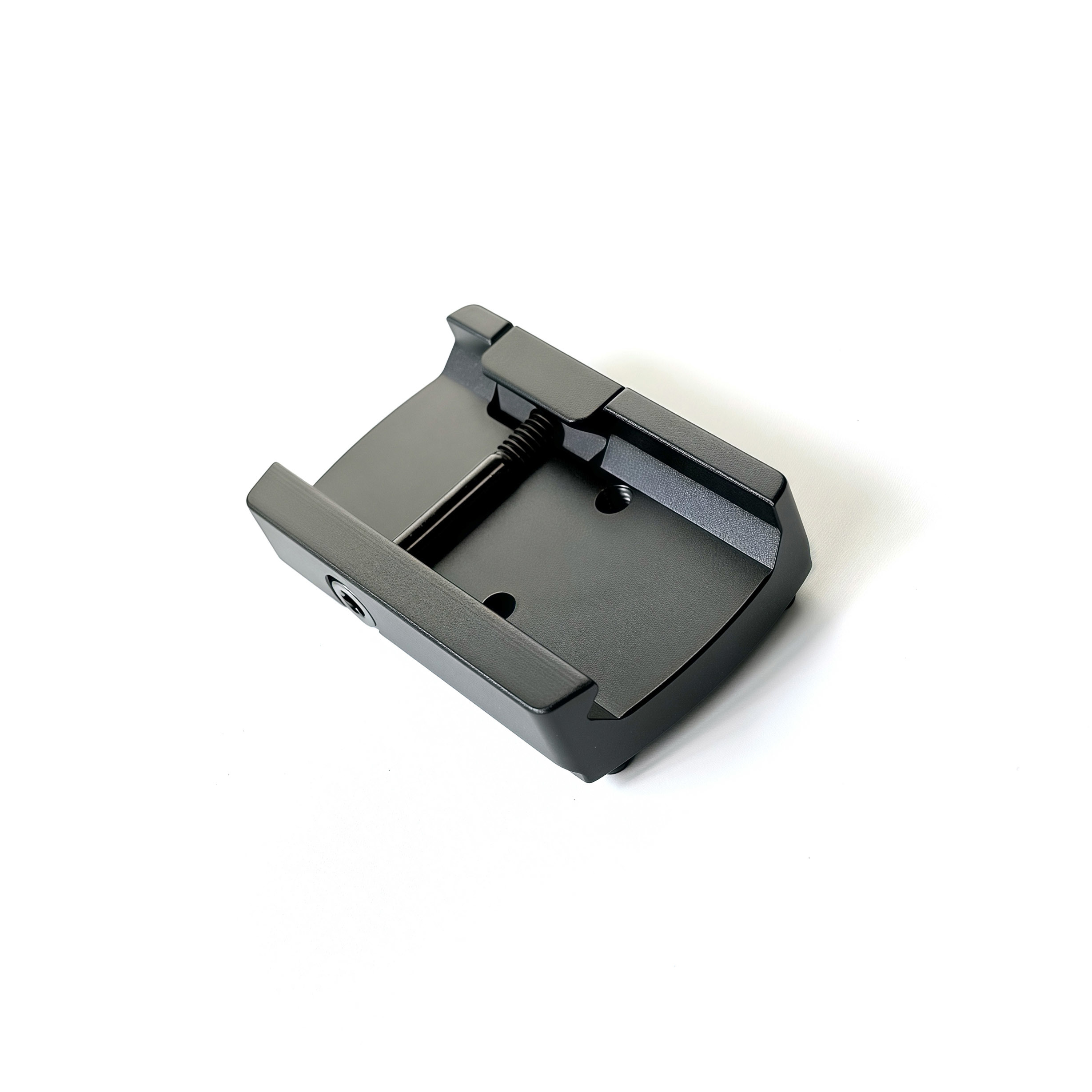

As a professional CNC precision machining manufacturer, we produce this custom low-profile Picatinny red dot sight mount base via full OEM & custom service to satisfy global buyers’ optic accessory demands.

The blank of this red dot adapter plate adopts extruded aluminum raw material, CNC milling for ultra-precise hole positioning, contour shaping and groove processing. After precision machining, the part is treated with 120# sand blasting to eliminate machining tool marks, followed by hard black anodizing surface treatment for scratch resistance, anti-corrosion and matte tactical appearance.

This optic mount is engineered to match mainstream red dot footprints including Doctor, Noblex, Vortex Venom, Vortex Viper, Fastfire, ARO and CTS-1250, perfectly locking corresponding mini red dot sights onto standard Picatinny rails. Each product package ships a full hardware kit: M3.5 T10 Torx screws (2pcs for each size: 6mm, 8mm, 10mm, 12mm) plus one L-shaped T10 Torx hex wrench, allowing instant installation without extra tool purchase.

Product Name

Doctor Footprint Red Dot Mount

Base Material

Extruded Aluminum Alloy

Processing Technology

CNC Milling after aluminum extrusion forming

Surface Treatment

120# Sand Blasting + Matte Black Hard Anodizing

Overall Product Dimension

45.9mm * 29mm * 12.65mm

Machining Tolerance

±0.02mm for critical mounting holes & positioning pins

Compatible Red Dot Footprints

Doctor, Noblex, Vortex Venom, Vortex Viper, Fastfire, ARO, CTS-1250

Fastener Standard

M3.5 T10 Torx Screws

Included Screw Sizes

6mm, 8mm, 10mm, 12mm (2 pieces each size)

Attached Tool

L-type T10 Torx Hex Wrench

Rail Compatibility

Standard Picatinny 20mm Rail

• Optic installation for Doctor/Vortex Venom/Viper/Fastfire/ARO/CTS-1250 Footprints red dots.
• OEM aftermarket optic accessories for sporting goods brands
• Custom CNC machined optic adapter plates for global sporting goods distributors, retailers and brand owners

Our factory provides one-stop custom service, OEM and ODM CNC precision machining service for all tactical optic mounting accessories, covering full production customization links:

• Drawing & Sample Customization: Accept customer-provided technical drawings or physical samples to replicate or redesign red dot mount bases, optic adapter plates.
• Material Customization: Adjust aluminum alloy grades, or switch to stainless steel, brass as customer demand.
• Dimensional & Tolerance Customization: Modify overall size, hole positions, pin layout, machining tolerance as your optic footprint standards.
• Surface Finish Customization: Customize sandblast grit, anodizing colors (black, grey, tan), laser marking brand logos, serial numbers.
• Hardware Package Customization: Adjust screw sizes, quantities, wrench styles, customize retail packaging boxes with customer brand printing.
• Mass Production OEM Service: Support bulk order OEM production for sporting goods brands, with flexible MOQ to fit startup brand and large distributor demands.

• Compatibility: One mount fits mainstream red dot footprints, buyers no longer need to stock multiple separate adapters for different red dot models, lowering inventory costs.
• Precision Installation: CNC machining tolerance ±0.02mm, positioning pins and threaded holes align red dots perfectly, eliminating loose sight shifting.
• Installation Tool Shortage: Complete matching T10 Torx screw set + dedicated hex wrench included, end users do not need to purchase extra installation tools separately.
• Surface Durability: 120# sandblast + black hard anodizing resists scratches, sweat corrosion and outdoor weather damage, no quick fading matte finish.
• Custom Sourcing: As direct CNC manufacturer, we offer full custom service and OEM machining, buyers can customize size, logo, material to match their brand positioning, no middleman markup.
• Low Profile Design: Slim 12.65mm height low-profile structure avoids obstructing sight picture, lightweight without adding excess load.

• Raw Material Inspection: All aluminum extrusion blanks pass alloy composition and dimensional inspection before entering CNC processing.
• In-process CNC Machining QC: Real-time coordinate measuring machine (CMM) spot check for critical hole tolerance, contour dimension during milling production.
• Surface Finishing Test: Random sampling to inspect sandblast uniformity, anodizing film thickness, anti-corrosion performance.
• Assembly Compatibility Test: Every batch of mounts undergoes physical fitting tests with all compatible red dot footprints and standard Picatinny rails to guarantee seamless installation.
• Finished Product Full Inspection: 100% visual check for machining burrs, surface defects, then complete hardware kit matching verification before packaging.
• Batch Quality Record: Retain full production and inspection records for every OEM & custom order to support after-sales quality traceability.
