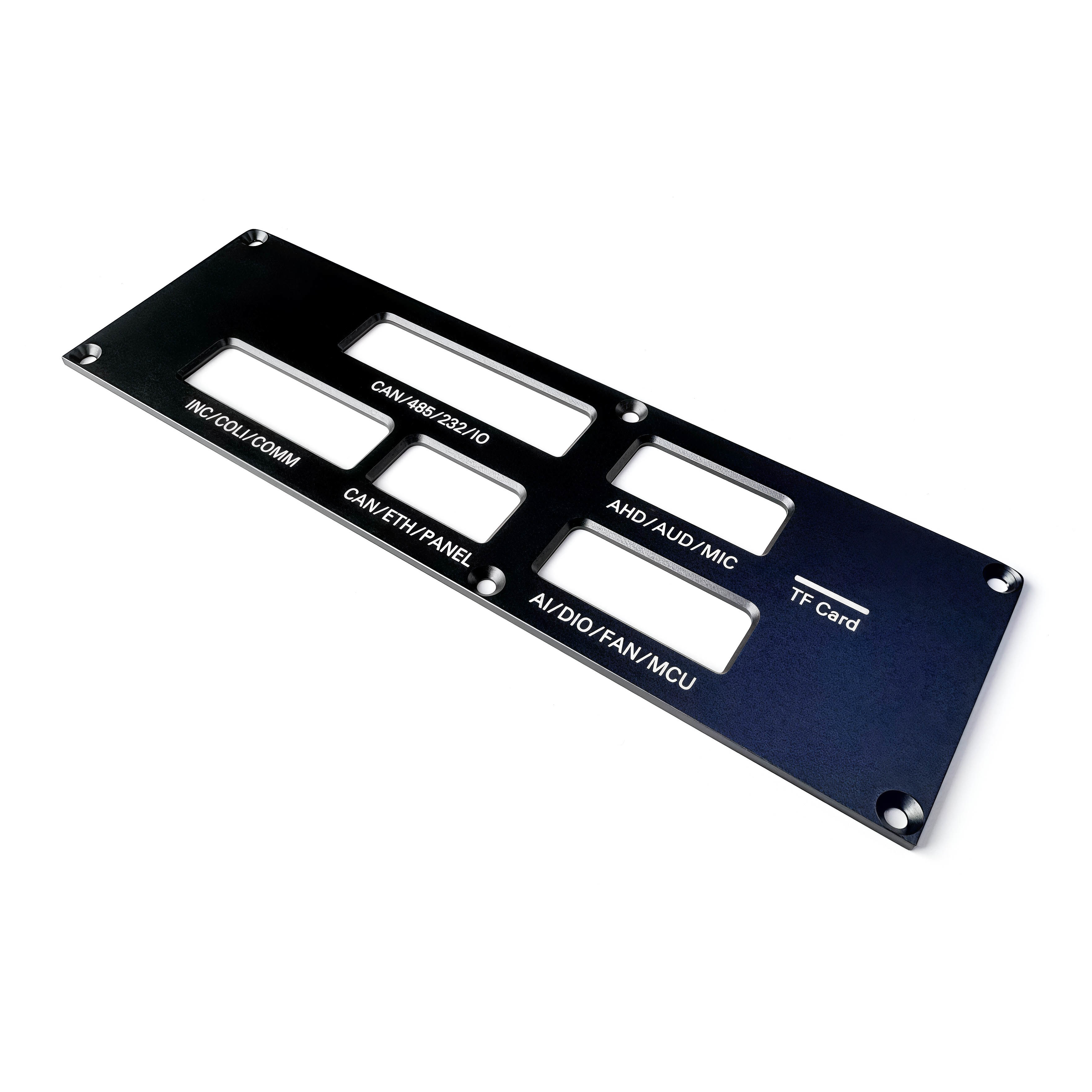

This custom aluminum interface panel is precision machined from solid 6063 aluminum alloy plate, specially designed as front mounting faceplate for industrial control hardware, data transmission devices and embedded mainboard equipment.

Whole blank aluminum plate is cut to target outer dimension first, then processed by multi-axis CNC machine: counterbore mounting holes, tiny positioning pin holes, all rectangular port cutouts and C-chamfer on outer edges & inner window corners are formed in one machining cycle.

After full deburring to eliminate all sharp burrs, the panel undergoes sandblasting to create uniform matte texture, followed by degreasing cleaning and black hard anodizing for anti-corrosion and scratch resistance. Permanent laser marking prints clear port labels like CAN, ETH, AHD, TF Card on surface without fading.

As an experienced OEM manufacturer, we provide one-stop custom service for all custom aluminum interface panel, fully adjust cutout layout, dimension, surface finish and marking content based on clients’ technical drawings or physical samples. Every finished precision machined aluminum panel passes strict dimensional and visual inspection before delivery.

• Industrial embedded control host aluminum front faceplate
• Vehicle-mounted data acquisition equipment cnc aluminum control panel
• Communication protocol converter (CAN/485/ETH/AHD) custom aluminum interface panel
• Smart monitoring & testing instrument precision machined aluminum panel
• Mini industrial gateway, edge computing device black anodized aluminum equipment panel
• Portable industrial signal collector operation interface aluminum panel

• OEM & ODM custom service, support production according to customer technical drawings or physical samples.
• Fully customizable overall size, plate thickness, cutout position and hole layout of aluminum front faceplate.
• Custom CNC machining service: adjust port window size, hole depth, chamfer angle for cnc aluminum control panel.
• Multiple optional surface treatments: black/color anodizing, sandblasting, wire brushing, mirror polishing.
• Custom laser marking service: editable text, logo, serial number on precision machined aluminum panel.
• Flexible order support: small prototype trial batch and mass production for black anodized aluminum equipment panel.
• One-stop solution: raw material cutting, CNC machining, surface treatment, laser marking and packaging.

• Eliminate assembly gap trouble: CNC machining with ±0.02mm tight tolerance ensures perfect matching with connectors and mainboards, no loose fit issue for custom aluminum interface panel.
• Avoid sharp edge scratch damage: Full inner & outer chamfer milling + complete deburring, prevent internal circuit components from being scratched during installation.
• Solve easy wear & oxidation problems: Black hard anodized layer improves surface hardness, resist scratch, oil stain and corrosion for long-term industrial equipment use.
• Fix blurry & falling-off label issues: Laser engraving creates permanent text marking, not worn out by frequent plugging/unplugging of ports.
• Reduce multi-supplier coordination cost: Integrated OEM manufacturer covering all production procedures, one-stop custom service shortens delivery cycle and cuts communication errors.
• Lower after-sales defective rate: 100% full dimensional & appearance inspection, reject unqualified precision machined aluminum panel before shipment.

• Raw material incoming inspection: Test 6063 aluminum alloy composition and flatness before cutting.
• In-process sampling inspection: Random dimension check during CNC drilling and milling to guarantee tolerance standard.
• Edge deburring visual check: Inspect all holes and cutouts to remove residual metal burrs completely.
• Surface treatment QC: Test sandblasting uniformity and anodizing coating thickness to avoid uneven color or coating peeling.
• Laser marking inspection: Verify text clarity, position accuracy and abrasion resistance of labels.
• Final finished product full inspection: Complete dimension measurement and comprehensive appearance check for every cnc aluminum control panel.
• Optional assembly test: Match with standard connectors to verify cutout compatibility for bulk OEM orders.
