PN63 Pressure Trunnion Ball Valve 1/2 - 2 Size With Locking Device Blow - Out Proof Stem
PN63 Pressure Trunnion Ball Valve 1/2 - 2 Size With Locking Device Blow - Out Proof Stem
Specifications
Brand Name :
Kelite Valve
Model Number :
Full port,1/4"~2",PN63
Certification :
ISO, CE,API
Place of Origin :
China
MOQ :
1PC
Supply Ability :
3000-8000PCS per month
Delivery Time :
10-80days
Packaging Details :
Plywood packing or fumigation packing
Pressure :
PN63
Size :
1/2"~2"
Material :
Steel
Certifcate :
CE, API,ISO
Operation :
Lever
Description


3 WAY-BALL VALVE L PORT T PORT

Specifications:

  1. L port / T port, 1/4"~2" (DN8~DN50)
  2. W. P.: 1000 WOG (PN63)
  3. W. T.:-20℃ ~200℃ (-4℉~392℉)
  4. Investment casting
  5. Blow-out proof stem
  6. Locking device
  7. Anti-static device (option)
  8. ISO 5211 mounting pad
  9. Thread type :ASME B1.20.1 (NPT) DIN2999 & BS21, ISO 7/1 & EN10226

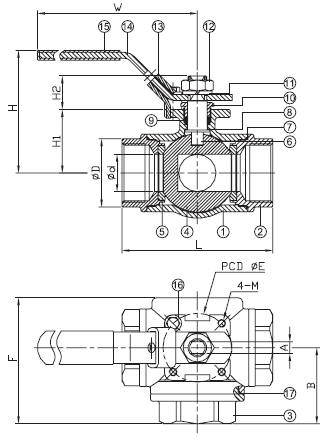

TEM PARTS MATERIAL
1 BODY ASTM A351-CF8M
2 CAP-A
3 CAP-B
4 BALL
5 SEAT PTFE
6 STEM AISI 316
7 SEAL-A PTFE
8 THRUST WASHER
9 PACKING
10 GLAND NUT AISI 304
11 SPRING WASHER
12 STEM NUT
13 LOCKING DEVICE
14 HANDLE
15 HANDLE SLEEVE PVC
16 STOP PIN AISI 304
17 SEAL-B PTFE


Design team: With professional design staff, Sample order is always welcomedSelect us :

  • Professional factory: Specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
  • Sample: We can offer sample in 3 days, but the shipment charge is usually beared by customerside, the fee will be deducted from agreed offical order.
  • Quick response to your needs: We will answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.

PN63 Pressure Trunnion Ball Valve 1/2
