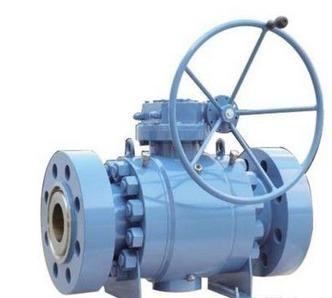

3 Piece Carbon Steel Trunnion Ball Valve , bare stem, actuators ball valve
3 Piece Carbon Steel Trunnion Ball Valve , bare stem, actuators ball valve
Specifications
Brand Name :
Kelite Valve
Model Number :
2"-56",CL150-2500,API 2000-15000
Certification :
API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000-5000PCS per month
Delivery Time :
30-70days
Packaging Details :
Plywood packing or fumigation packing
Size: :
NPS 2"~56"
Pressure Rating: :
Class 150~2500,API 2000-15000
Material: :
A105, LF2, F304, F316,F304L, F316L, F51 etc
Design & Manufacturing Standard: :
API 6A, API 6D, API 6DSS, BS 5351, ASME B16.34
Face to Face: :
ASME B16.10, API 6D
End Connection: :
ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: :
ISO 5208, API 6D, API598
Operation Method: :
Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator
Description

Forging trunnion ball valve of 2"-56" CL150-2500 Carbon steel, Stainless steel

Forging split body, full bore/reduced bore, trunnion mounted, double block and bleed, single or double piston effect, anti-blow out stem, anti-static device, fire-safe certified to API-607/6FA/ISO 10497, spring loaded Seats, sealant injection, NACE MR-01-75, NYLON, DEVLON&PEEK seat inserts, designed and tested according to ASME B16.34, BS5351 and API-6D,API-6DSS, API 6A.

PRODUCT RANGE

Class 150 from 2'' to 42''
Class 300 from 2'' to 42''
Class 600 from 2" to 42"
Class 900 from 2" to 36"
Class 1500 from 2" to 24"
Class 2500 from 2" to 24"

MATERIAL
BODY: Carbon steel, Stainless steel, Low temperature carbon steel, Duplex, Special Alloys,... Other materials under request
SOFT SEATS : PTFE, RPTFE, PEEK, DEVLON, NYLON,... Other materials under request
METAL SEAT:Tungsten Carbide(TC), Stellited
, Ni60...Other materials under request.
TRIM: A105+EP,304,316, 410, MONEL,... Other materials under request
DESIGN STANDARDS
ASME Standards:
B1.20.1 Pipe Threads,General Purpose(Inch)
B16.10 Face-to-Face and End-to-End Dimensions of Valves
B16.25 Buttwelding Ends
B16.11 Forged Fittings, Socket-Welding and Threaded
B16.5 Flanged Fittings and Pipe Flanges
B16.47 Large Diameter Steel Flanges
API Standards:
6D Specifications for Pipeline valves
598 Valve Inspection and Testing
607 Fire test for soft-seated quarter-turn valves
6FA Specification for Fire Test for Valves
MSS Standards:
SP-55 Quality Standard for Steel Castings for Valves,Flanges,and Fittings and Other Piping Components-Visual Method for Evaluation of Surface Irregularities
SP-54 Quality Standard for Steel Castings for Valves,Flanges,and Fittings and Other Piping Components-Radiographic Examination Method
SP-53 Quality Standard for Steel Castings for Valves,Flanges,and Fittings and Other Piping Components-Magnetic Particle Examination Method

DESIGN FEATURE

3-pieces body, full bore. Fire-Safe certified, trunnion ball with spring loaded seats, blow out proof stem, flanged connections.
Non-removable antistatic devices assure electric continuity between ball and
body through the stem.
All wetted component materials and bolting meet NACE MR.01.75 latest edition as standard.
Asbestos free.

APPLICATION

Refinery
Chemical
Petrochemical
Power plant
Gas
