L Port T Port Trunnion Ball Valve High Precision With ISO Mounting Pad 3 Way
L Port T Port Trunnion Ball Valve High Precision With ISO Mounting Pad 3 Way
Specifications
Brand Name :
Kelite Valve
Model Number :
Full port,1/2"~6",CL150/300
Certification :
ISO, CE,API
Place of Origin :
China
MOQ :
1PC
Supply Ability :
3000-8000PCS per month
Delivery Time :
10-80days
Packaging Details :
Plywood packing or fumigation packing
Size :
1/2"~6"
Pressure :
CL150/300
Material :
Steel
Certifcate :
CE, API,ISO
Operation :
Lever
Description


3 WAY-BALL VALVE L PORT T PORT

Specifications:

  1. L port / T port, 1/2"~6" (DN15~DN150)
  2. W. P.: PN16/40 CLASS 150/300 JIS 10k
  3. W. T.:-20℃ ~200℃ (-4℉~392℉)
  4. Investment casting
  5. Blow-out proof stem
  6. ISO 5211 Direct mouting pad

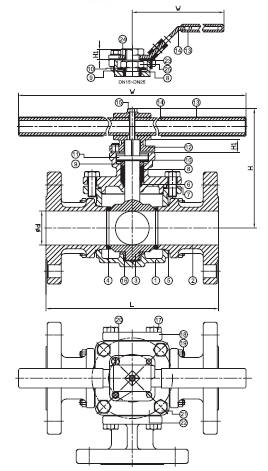

ITEM PARTS MATERIAL
1 BODY ASTM A351-CF8M ASTM A351-CF8
2 CAP
3 BALL & STEM
4 SEAT PTFE
5 SEAL
6 O-RING VITON
7 GASKET PTFE
8 PACKING
9 GLAND RING AISI 304
10 SPRING WASHER
11 CAP-C ASTM A351-CF8M ASTM A351-CF8
12 HANDLE HEAD ASTM A351-CF8
13 HANDLE SLEEVE PVC
14 HANDLE AISI 304
15 HANDLE BOLT
16 SLEEVE PTFE
17 CAP-B BOLT AISI 304
18 CAP-B ASTM A351-CF8M ASTM A351-CF8
19 BOLT AISI 304
20 STOP PIN
21 CAP-A BOLT
22 CAP-A ASTM A351-CF8M ASTM A351-CF8
23 LOCKING WASHER AISI 304
24 HANDLE WASHER
25 STEM NUT


Design team: With professional design staff, Sample order is always welcomedSelect us :

  • Professional factory: Specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
  • Sample: We can offer sample in 3 days, but the shipment charge is usually beared by customerside, the fee will be deducted from agreed offical order.
  • Quick response to your needs: We will answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
