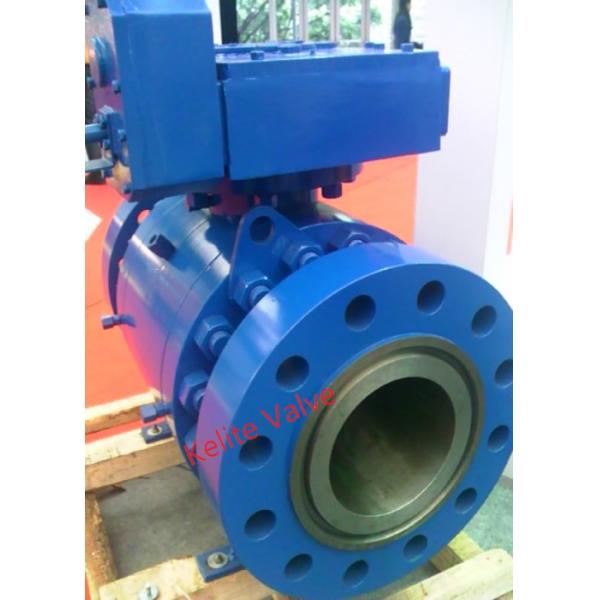

Stainless Steel Trunnion Ball Valve , Full Port Ball Valve Fire Safe Design
Stainless Steel Trunnion Ball Valve , Full Port Ball Valve Fire Safe Design
Specifications
Brand Name :
Kelite Valve
Model Number :
2"-56",CL150-2500,API 2000-15000
Certification :
API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000-5000PCS per month
Delivery Time :
30-70days
Packaging Details :
Plywood packing or fumigation packing
Size: :
NPS 2"~56"
Pressure Rating: :
Class 150~2500,API 2000-15000
Material: :
A105, LF2, F304, F316,F304L, F316L, F51 etc
Design & Manufacturing Standard: :
API 6A, API 6D, API 6DSS, BS 5351, ASME B16.34
Face to Face: :
ASME B16.10, API 6D
End Connection: :
ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: :
ISO 5208, API 6D, API598
Operation Method: :
Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator
Description

Forging trunnion ball valve of 2"-56" CL150-2500 CS and SS ball valve

Kelite Valve manufactures some of the most dependable cast and forged steel Ball Valves in the industry. Our products are manufactured and tested in accordance with respective API, ASME, and ANSI standards. With features such as double block and bleed capabilities, secondary sealant injections, and spring energized self relieving seats, the Kelite design offers many features and options beneficial for oil, gas, and liquid applications making it one of the most preferred ball valves on the market.
DESIGN & MANUFACTURING STANDARDS
Basic Design API 6D
Wall Thickness API 6D
Face-to-Face Dimension API 6D
Flange End Dimension ANSI/ASME B16.5 (1” to 24”)
ANSI/ASME B16.47 (26” & up)
Butt-Weld End Dimension ANSI/ASME B16.25
Inspection & Testing API 6D
Fire Safe Design API 607/BS 6755

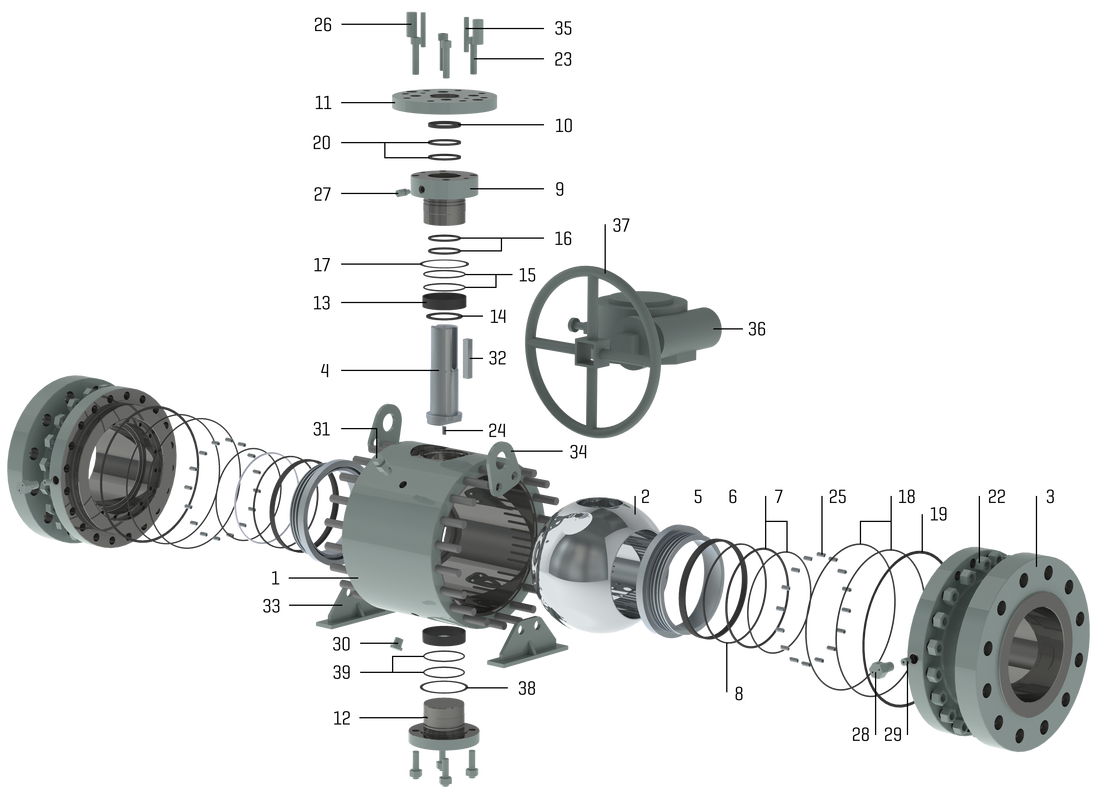

Sameple trunnion design 3-Piece Trunnion Ball Valves - Full & Reduced Port Expanded View (See "Bill of Materials" below)

Stainless Steel Trunnion Ball Valve , Full Port Ball Valve Fire Safe Design

Bill of Materials

NO. NAME OF PART MATERIALS
1 Body A350 LF2 A182 F316
2 Ball A350 LF2+ENP A182, F316, A351, CF8M, 410 SS
3 Adapter A350 LF2 A182, F316, A351, CF8M
4 Stem A350 LF2+ENP 316 SS, 17-4 PHSS, 410 SS
5 Seat Ring A350 LF2+ENP 316 SS, 410 SS
6 Seat Insert Devlon, Nylon, PEEK, RTFE
7 Seat O-ring (2) Low Temp HNBR /Viton AED
8 Seat Seal Graphite
9 Gland A350 LF2 316 SS, 410 SS
10 Gland Ring A350 LF2 316 SS, 410 SS
11 Mounting Plate A350 LF2 316 SS, 410 SS
12 Trunnion A350 LF2 316 SS, 410 SS
13 Trunnion Bearing (2) PTFE, Carbon Steel PTFE, 316 SS
14 Thrust Washer PTFE, Carbon Steel PTFE, 316 SS
15 Gland O-ring (2) Low Temp HNBR /Viton AED
16 Stem O-ring (2) Low Temp HNBR /Viton AED
17 Gland Gasket Graphite
18 Adapter O-ring (2) Low Temp HNBR /Viton AED
19 Adapter Gasket Graphite
20 Mounting Plate Gasket Graphoil
21 Stud Bolt* A320 L7M A193 B8
22 Hex Nut* A194 7M A194 8
23 SHCS A320 L7M A193 B8
24 Anti-Static Spring Inconel X-750
25 Seat Spring Inconel X-750
26 Dowel Pin Carbon Steel Stainless Steel
27 Grease Fitting Carbon Steel 316 SS
28 Grease Fitting, BGH Carbon Steel 316 SS
29 Ball Check Stainless Steel
30 NPT Plug Carbon Steel 316 SS
31 Vent Fitting Carbon Steel 316 SS
32 Stem Key Carbon Steel Stainless Steel
33 Foot Plate* Carbon Steel Stainless Steel
34 Lift Plate* Carbon Steel Stainless Steel
35 Trunnion Dowel Pin Carbon Steel Stainless Steel
36 Gear Operator Ductile Iron, Carbon Steel Worm Gear
37 Handwheel Carbon Steel, Ductile Iron
Note: Materials also available in F321, F347, F51, F53, monel, inconel, incolloy and hastelloy. Metal-to-metal seated ball valve designs are available upon request. ​
Additional materials available upon request. *= Used only with bolted body construction.

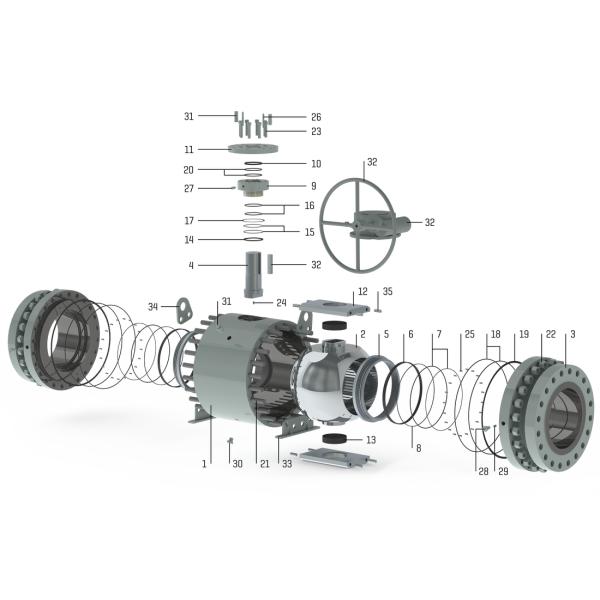

Sample bearing plate design 3-Piece Trunnion Ball Valves - Full & Reduced Port Expanded View (See "Bill of Materials" below)
Stainless Steel Trunnion Ball Valve , Full Port Ball Valve Fire Safe Design
Bill of Materials
NO. NAME OF PART MATERIALS
1 Body A350 LF2 A182 F316
2 Ball A350 LF2+ENP A182, F316, A351, CF8M, 410 SS
3 Adapter A350 LF2 A182, F316, A351, CF8M
4 Stem A350 LF2+ENP 316 SS, 17-4 PHSS, 410 SS
5 Seat Ring A350 LF2+ENP 316 SS, 410 SS
6 Seat Insert Devlon, Nylon, PEEK, RTFE
7 Seat O-ring (2) Low Temp HNBR /Viton AED
8 Seat Seal Graphite
9 Gland A350 LF2 316 SS, 410 SS
10 Gland Ring A350 LF2 316 SS, 410 SS
11 Mounting Plate A350 LF2 316 SS, 410 SS
12 Trunnion A350 LF2 316 SS, 410 SS
13 Trunnion Bearing (2) PTFE, Carbon Steel PTFE, 316 SS
14 Thrust Washer PTFE, Carbon Steel PTFE, 316 SS
15 Gland O-ring (2) Low Temp HNBR /Viton AED
16 Stem O-ring (2) Low Temp HNBR /Viton AED
17 Gland Gasket Graphite
18 Adapter O-ring (2) Low Temp HNBR /Viton AED
19 Adapter Gasket Graphite
20 Mounting Plate Gasket Graphoil
21 Stud Bolt* A320 L7M A193 B8
22 Hex Nut* A194 7M A194 8
23 SHCS A320 L7M A193 B8
24 Anti-Static Spring Inconel X-750
25 Seat Spring Inconel X-750
26 Dowel Pin Carbon Steel Stainless Steel
27 Grease Fitting Carbon Steel 316 SS
28 Grease Fitting, BGH Carbon Steel 316 SS
29 Ball Check Stainless Steel
30 NPT Plug Carbon Steel 316 SS
31 Vent Fitting Carbon Steel 316 SS
32 Stem Key Carbon Steel Stainless Steel
33 Foot Plate* Carbon Steel Stainless Steel
34 Lift Plate* Carbon Steel Stainless Steel
35 Body Dowel Pin Carbon Steel Stainless Steel
36 Gear Operator Ductile Iron, Carbon Steel Worm Gear
37 Handwheel Carbon Steel, Ductile Iron
38 Trunnion Gasket Graphite
39 Trunnion O-ring (2) Low Temp HNBR/Viton AED
Note: Materials also available in F321, F347, F51, F53, monel, inconel, incolloy and hastelloy. Metal-to-metal seated ball valve designs are available upon request. ​
