GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise
GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise
GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise
GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise
GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise
GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise
GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise
GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise
GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise
GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
GZPK-83
Place of Origin :
Wenzhou China
MOQ :
1
Payment Terms :
L/C, T/T
Description

Product overview:

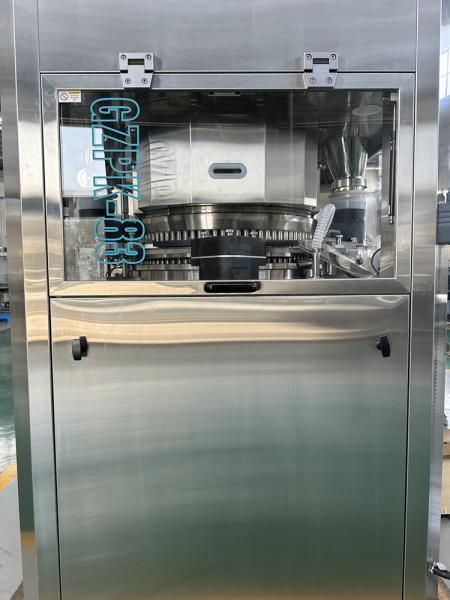

The part of the GZPK-720 series tablet pressing machine is a fully enclosed tablet pressing room. The material metal in contact with the powder is acid-alkali resistant austenitic stainless steel, and the non-metallic material is non-toxic material. Four transparent Windows can be opened, so that the machine clean without obstruction, easy to replace the punch.
The lower part of the machine is sealed by four stainless steel doors with porous material inside, and contains various driving devices to ensure safety and reduce noise. The process of tablet pressing is completed by five steps: filling, measuring, pre-pressing, main pressing and tablet drawing. The operation of the tablet press is completely controlled by the touch screen on the electric control cabinet.
Reference display charts:

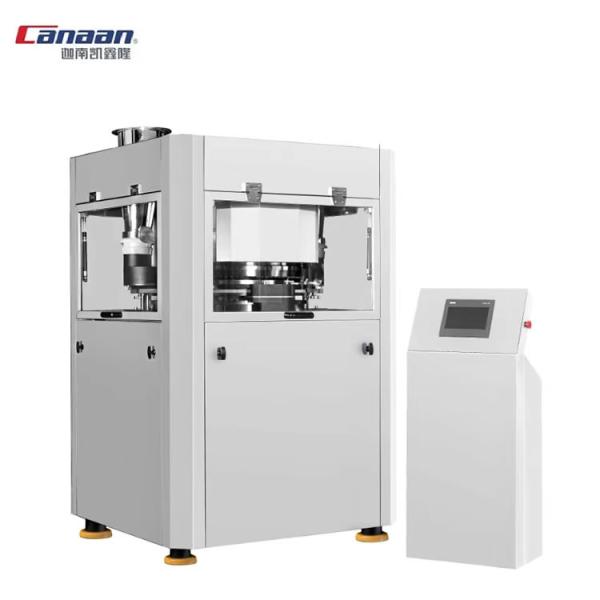

GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise

GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise

B&R PCC control systems and operating systems

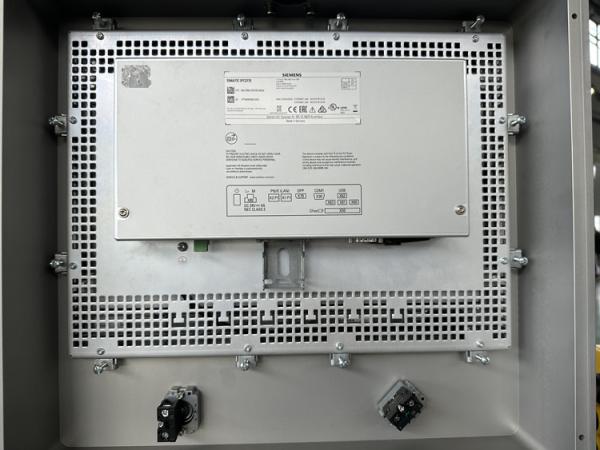

The electric control cabinet is independent of the main machine, the electric control area is separated from the production area, the safety and hygiene coefficient is greatly improved;
Adopting 10-inch touch screen automatic control, no hand wheel operation, highly automated production;
All production information can be displayed, stored, extracted and changed;
Different levels of user passwords can be set;
Full-automatic servo motor control, adjusting the metering guide, controlling the depth of the filler, ensuring high precision of the slice difference;
Three-pulp packing system:
Upper impeller to increase the fluidity of the powder, equalize the density of the powder
The lower impeller is used for filling and metering to ensure the uniformity of filling

GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise

High precision turntable
 GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise

GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise

Pressure support system for identical workstations

GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise

Pressure wheel assembly (same size and interchangeable)

GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise

stay on track

GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise

general market

Equipment parameters:

Model 83 65 51
No. of station 83 65 51

Caoacuty(tablets/h)

MAX OR MIN

710000

160000

560000

120000

440000

98000
Rotation speed(rpm) 16-72 16-72 16-72
Max.tablet diameter 13 16 25
Main pressure 100KN 100KN 100KN
Pre-pressure 100KN 100KN 100KN
Max.filling depth 16mm 16mm 20mm
Maximum tablet thickness mm 8.5 8.5 8.5
Pitch circle diameter mm 720 720 720
Shank diameter mm 19 19 25.35
Middie height 22.22 22.22 23.8
Can press shaped pieces YES YES YES
Net weight kgs 5000 5000 5000
The machine may make improvements to the technology without prior notice, the attached pictures show the options that may be offered

Device Name Device Specifications quantities
Siemens Touch Panel SMART1000 6AV6648-OCE11-3AXO(6AV6648-OBE11-3AXO) 1
Siemens CPU ST40 6ES7288-1ST40-0AA0 1
Siemens Inverter V20 15KW 6SL3210-5BE31-5UV0 1
Siemens inverter V20 0.75KW three-phase 6SL3210-5BE17-5UV0 2
Siemens contactor 50A22KW 3RT5036-1AN20 1
Braking Resistors PWR1000W-500/7K50 1
Meanwell Power NDR-120-24V,5A 2
ABB Circuit Breakers S203-C32 1
ABB Circuit Breakers S203-C10 2
ABB Circuit Breakers MS116-0.63-1.0A 1
ABB Circuit Breakers MS116-10-16A 1
ABB Auxiliary Switches HKF1-11 2
ABB Circuit Breakers S202-C10 4
ABB Circuit Breakers A9-30-10 AC220 1
DEGSON Relay 24V DRPE-2CH-LR-D24-07A 15
DEGSON Relay Base DPKF08A-E3-00Z 15
Panasonic Relays MY33002 4
Isolation control transformers BK100W 380/220 1
Guideway Filters CW4L2-30A-R 2
MOXA Switches EDS-205A 1
INOVANCE Input Module GL20-1600END 3
INOVANCE Output Module GL20-0016ETN 2
INOVANCE Analog Modules GL20-4AD 3
INOVANCE PN module GL20-RTU-PN 1
INOVANCE Drive PN 750W IS620FS2R8I-RT-750 2
Inovance Holding Motor Cables S6-L-M007-3.0-T 2
INOVANCE Multiturn Absolute A3 Motor Encoder Cables S6-L-P024-3.0-T 2
INOVANCE Battery Pack S6-C4A 2
Inovance servo motor 750W MS1H1-75B30CB-A331Z 2
Phase Sequence Relay OMRON K8DS-PH1 1
Material Level Sensor CR18-8DN M18-NPN 2
The following are peripheral mounting devices
Pressure Transmitter LAC7S12 4
buzzers HS22-SMD/S 1
Exhaust fan 9803 1
KAKU Fans KA1238HA2 1
Communication cable network cable Super Category VI 1.5m (with crystal tips on both ends) 1

Communication cable network cable Ultra Category 6 10m (with crystals on both ends) 1
Communication cable network cable Ultra Category 6 5m (with crystals on both ends) 1
Communication cable network cable Category 6 cable 6
Inductive Proximity Switches M8(NPN) ISS 108MM/2NO-2E0-M8(NPN)/Schneider 10
Inductive Proximity Switches TL-Q5MC1-Z Square (NPN) 4
Small Pushbutton Switches LA160-L8A 2
Schneider push button red with light 1
Schneider Pushbutton Green Ribbon Light 1
Schneider Key Switch 1
Schneider Push Button Emergency Stop 1
Rotary encoders with internal hermetic control OVW2-20- 7
Linke coupling LK12-25-0608

7

Configuration table of main electric parts of high-speed rotary tablet press machine
Punching fixtures for GZPD model can be provided by our company or imported models:
EU-B: Punching rod Φ19, Punching rod length 133.60, see attached drawing.

GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise

EU-D: Punch rod Φ25.35, punch rod length 133.60, see the attached drawing

GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise

Main drive principle:

GZPK-720 series tablet press is driven by the main motor, which is decelerated by worm gear box and then drives the main shaft to rotate. The main shaft is connected with the punching disk, on which there are upper, middle and lower punching dies. The punching disk drives the upper and lower punching dies to rotate along the curves of the upper and lower guide rails, which realizes five processes, such as filling, metering, pre-pressing, main pressing and tablet discharging, and completes the whole process of tablet pressing. See the flow chart of tablet pressing process and the principle diagram of main transmission system.

GZPK-83 Automatic High Speed Rotary Tablet Press Machine Reliable Low Noise
