High Speed Double Rotary Tablet Compression Machine Automatic Tablet Press
High Speed Double Rotary Tablet Compression Machine Automatic Tablet Press
High Speed Double Rotary Tablet Compression Machine Automatic Tablet Press
High Speed Double Rotary Tablet Compression Machine Automatic Tablet Press
High Speed Double Rotary Tablet Compression Machine Automatic Tablet Press
High Speed Double Rotary Tablet Compression Machine Automatic Tablet Press
High Speed Double Rotary Tablet Compression Machine Automatic Tablet Press
High Speed Double Rotary Tablet Compression Machine Automatic Tablet Press
High Speed Double Rotary Tablet Compression Machine Automatic Tablet Press
High Speed Double Rotary Tablet Compression Machine Automatic Tablet Press
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
GZPK-26/32/40
Place of Origin :
Wenzhou China
MOQ :
1
Price :
GZPK-26/ 56000$ GZPK-32/ 57000$ GZPK-40/ 60000$
Payment Terms :
L/C, T/T
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Model :
GZPK-26/GZPK-32/GZPK-40
Capacity （Tablets/h） :
160000/210000/260000
Rotation speed (r/min) :
11-102/11-105/11-105
Main.tablet diameter（KN） :
100/80/80
Main.filling depth（mm） :
20/16/16
Dia.of.die（mm） :
38.1/30.16/24.01
Description

High Speed Rotary Tablet Press Compression Automatic Rotary Tablet Press Machine

Technical parameters:

Model GZPK-26 GZPK-32 GZPK-40
Capacity (Tablets/h) 160000 210000 260000
No.of station 26 32 40
Max.tablet diameter(mm) 25 16 13
Rotation speed (r/min) 11-102 11-105 11-105
Main.tablet diameter(KN) 100 80 80
Pre-pressure(KN) 20 20 20
Main.filling depth(mm) 20 16 16
Dia.of.die(mm) 38.1 30.16 24.01
Length of punch(mm) 133.6 133.6 133.6
Total power(Kw) 7.5
Overall weight(Kg) 1800
Overall diemensions(mm) 1170×1000(+530)×1950
Noise ≤75DB(A)

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

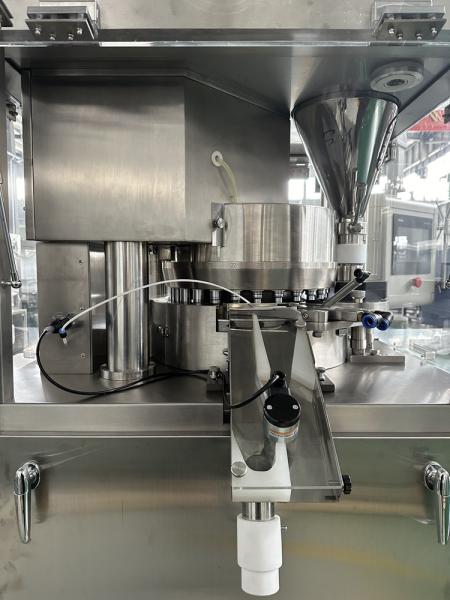

Main pressure mechanism:

High Speed Double Rotary Tablet Compression Machine Automatic Tablet Press

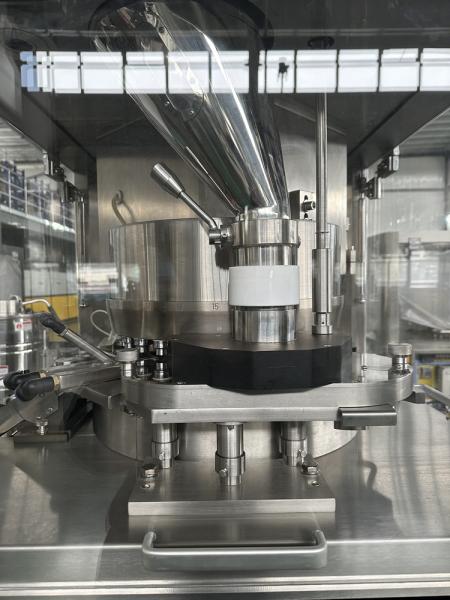

Release mechanism:

High Speed Double Rotary Tablet Compression Machine Automatic Tablet Press

Powder absorber:

unctions:
Clear the punch plate and rod dust
Remove sheet chamber dust
 High Speed Double Rotary Tablet Compression Machine Automatic Tablet Press
1. Lock the screw
2. Air volume regulating valve
3. Powder absorbing shell
4. Right coaming
5. Left coaming panel
