7.5Kw Medical High Speed Rotary Tablet Press Machine Manufacturers
7.5Kw Medical High Speed Rotary Tablet Press Machine Manufacturers
7.5Kw Medical High Speed Rotary Tablet Press Machine Manufacturers
7.5Kw Medical High Speed Rotary Tablet Press Machine Manufacturers
7.5Kw Medical High Speed Rotary Tablet Press Machine Manufacturers
7.5Kw Medical High Speed Rotary Tablet Press Machine Manufacturers
7.5Kw Medical High Speed Rotary Tablet Press Machine Manufacturers
7.5Kw Medical High Speed Rotary Tablet Press Machine Manufacturers
7.5Kw Medical High Speed Rotary Tablet Press Machine Manufacturers
7.5Kw Medical High Speed Rotary Tablet Press Machine Manufacturers
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
GZPK-26/32/40
Place of Origin :
Wenzhou China
MOQ :
1
Price :
GZPK-26/ 56000$ GZPK-32/ 57000$ GZPK-40/ 60000$
Payment Terms :
L/C, T/T
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Model :
GZPK-26/GZPK-32/GZPK-40
No.of station :
26/32/40
Max.tablet diameter（mm） :
25/16/13
Main.tablet diameter（KN） :
100/80/80
Overall diemensions（mm） :
1170×1000(+530)×1950
Noise :
≤75DB（A）
Description

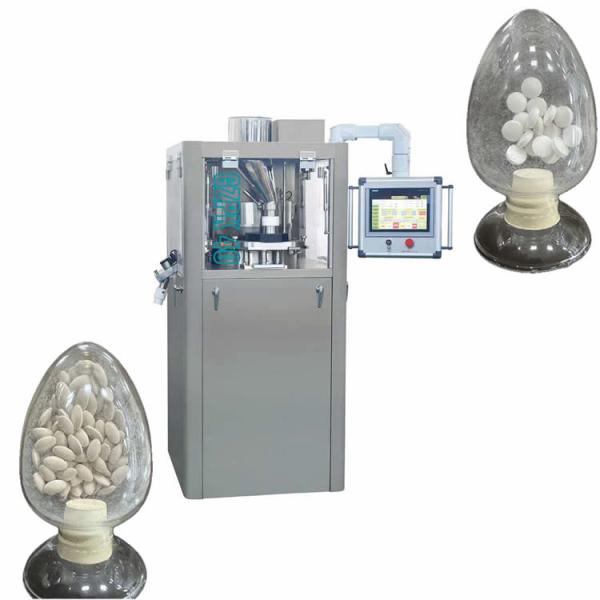

Product overview:

Tablet Machine Manufacturers Tablet Production Equipment Tablet Press For Medical Purposes

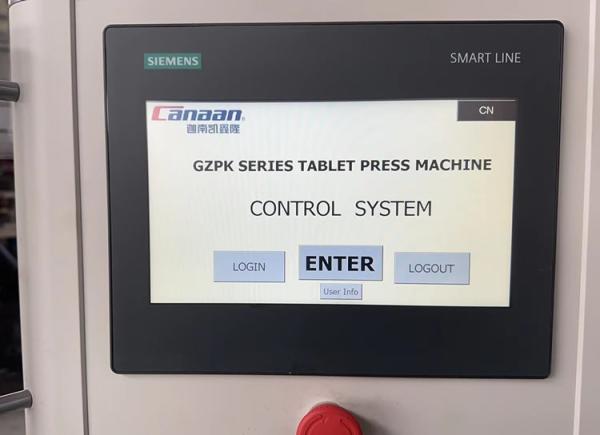

GZPK Series Automatic High Speed Rotary Tablet Press is the second generation product newly launched by our company. It concentrates the technical features of domestic automatic high-speed rotary tablet press and makes significant improvements in machine structure and operation control. The machine structure adopts universal seat, universal shape, and replaceable punch plate body, thus realizing the interchangeability of one machine with multiple models. The operation control adopts industrial PLC automatic control, leaving more space for development.

Technical parameters:

Model GZPK-26 GZPK-32 GZPK-40
Capacity (Tablets/h) 160000 210000 260000
No.of station 26 32 40
Max.tablet diameter(mm) 25 16 13
Rotation speed (r/min) 11-102 11-105 11-105
Main.tablet diameter(KN) 100 80 80
Pre-pressure(KN) 20 20 20
Main.filling depth(mm) 20 16 16
Dia.of.die(mm) 38.1 30.16 24.01
Length of punch(mm) 133.6 133.6 133.6
Total power(Kw) 7.5
Overall weight(Kg) 1800
Overall diemensions(mm) 1170×1000(+530)×1950
Noise ≤75DB(A)

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

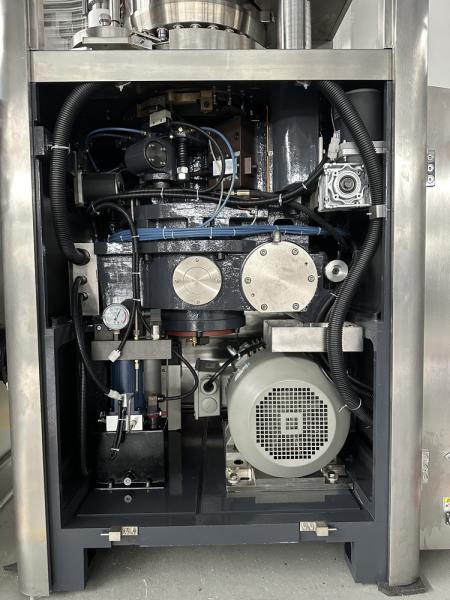

Hydraulic system:

Main pressure, prepressure twice forming, large pressure wheel, five-column frame structure, so that the machine has a long pressure time, stable work and load-bearing load without deformation ability. Ensure piece weight accuracy and hardness while maintaining smooth operation and low noise.
7.5Kw Medical High Speed Rotary Tablet Press Machine Manufacturers

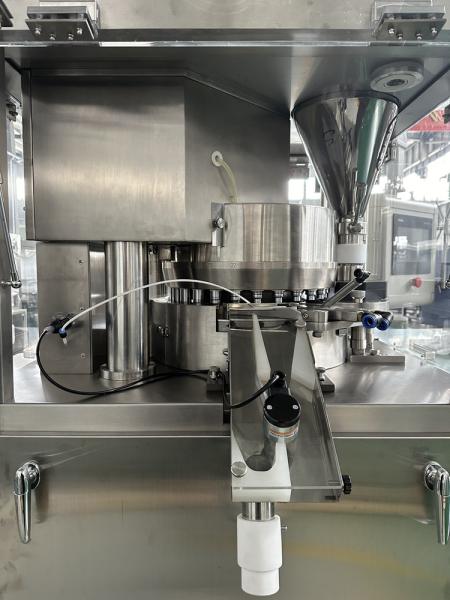

Charging system:

7.5Kw Medical High Speed Rotary Tablet Press Machine Manufacturers

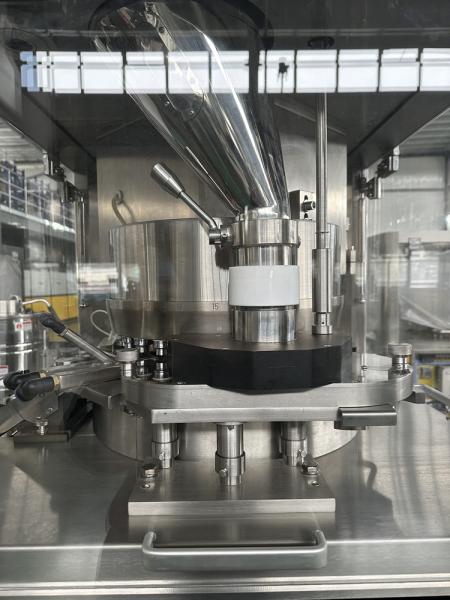

【 Forced feeding system 】
The feeder is easy to disassemble and assemble, easy to clean. High-precision double impeller forced feeding mechanism, with two agitators to force the material into each die hole, so that the difference between the weight of the sheet is smaller, to solve the ordinary sheet press free blanking insufficient filling, working disk dust and cross pollution problems.

Core components:

7.5Kw Medical High Speed Rotary Tablet Press Machine Manufacturers

[High Precision Bearings]

7.5Kw Medical High Speed Rotary Tablet Press Machine Manufacturers

【High-precision guide rails and press wheels】
Adopting high-precision bearings, smooth transmission, long life and low noise.
Adopting high-precision guide rails and press wheels; wear-resistant, with good consistency and interchangeability.
