Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
GZPK-26/32/40
Place of Origin :
Wenzhou China
MOQ :
1
Price :
GZPK-26/ 56000$ GZPK-32/ 57000$ GZPK-40/ 60000$
Payment Terms :
L/C, T/T
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Model :
GZPK-26/GZPK-32/GZPK-40
Capacity （Tablets/h） :
160000/210000/260000
No.of station :
26/32/40
Max.tablet diameter（mm） :
25/16/13
Rotation speed (r/min) :
11-102/11-105/11-105
Main.tablet diameter（KN） :
100/80/80
Description

Product overview:

Tablet Press For Medical Purposes Automatic High-Speed Rotary Tablet Press Rotary Tablet Press

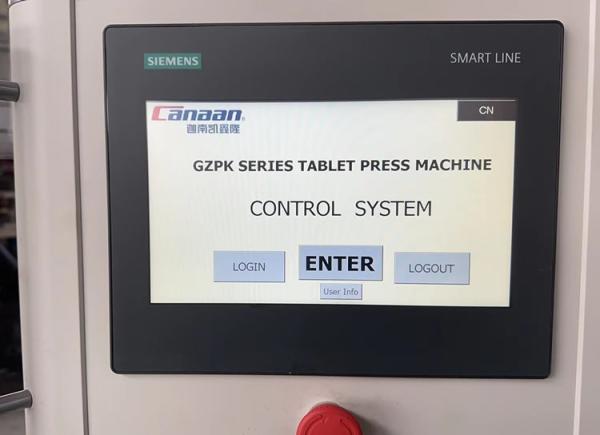

GZPK Series Automatic High Speed Rotary Tablet Press is the second generation product newly launched by our company. It concentrates the technical features of domestic automatic high-speed rotary tablet press and makes significant improvements in machine structure and operation control. The machine structure adopts universal seat, universal shape, and replaceable punch plate body, thus realizing the interchangeability of one machine with multiple models. The operation control adopts industrial PLC automatic control, leaving more space for development.

Technical parameters:

Model GZPK-26 GZPK-32 GZPK-40
Capacity (Tablets/h) 160000 210000 260000
No.of station 26 32 40
Max.tablet diameter(mm) 25 16 13
Rotation speed (r/min) 11-102 11-105 11-105
Main.tablet diameter(KN) 100 80 80
Pre-pressure(KN) 20 20 20
Main.filling depth(mm) 20 16 16
Dia.of.die(mm) 38.1 30.16 24.01
Length of punch(mm) 133.6 133.6 133.6
Total power(Kw) 7.5
Overall weight(Kg) 1800
Overall diemensions(mm) 1170×1000(+530)×1950
Noise ≤75DB(A)

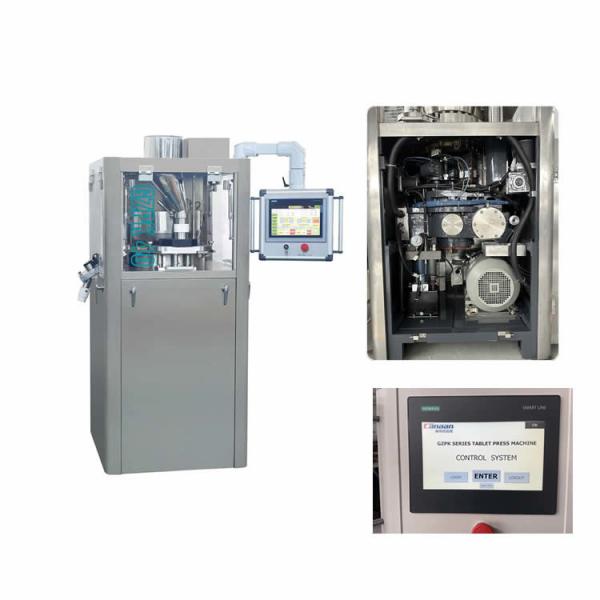

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

Material feeding method:

Hand feed Elevator feed (optional) Vacuum feeder (optional)
Pharmaceutical High Speed Rotary Tablet Press safety Medical machine Pharmaceutical High Speed Rotary Tablet Press safety Medical machine Pharmaceutical High Speed Rotary Tablet Press safety Medical machine

1.Add the material to the hopper manually

2.High dust, high labor intensity
3.Suitable for smaller batch production
1.Material pipe with soft connection charging
2.The feeding process is closed, safe and hygienic
3.Suitable for mixing and feeding to solve the problem of stratification
1.Compact structure, airtight, no pollution, safety and health, low noise
2.Easy to install, easy to operate, fast delivery speed
3.Suitable for the height of 2.7m and above the floor workshop
