turntable Rotary Automatic Tablet Press Machine High Speed Compression
turntable Rotary Automatic Tablet Press Machine High Speed Compression
turntable Rotary Automatic Tablet Press Machine High Speed Compression
turntable Rotary Automatic Tablet Press Machine High Speed Compression
turntable Rotary Automatic Tablet Press Machine High Speed Compression
turntable Rotary Automatic Tablet Press Machine High Speed Compression
turntable Rotary Automatic Tablet Press Machine High Speed Compression
turntable Rotary Automatic Tablet Press Machine High Speed Compression
turntable Rotary Automatic Tablet Press Machine High Speed Compression
turntable Rotary Automatic Tablet Press Machine High Speed Compression
turntable Rotary Automatic Tablet Press Machine High Speed Compression
turntable Rotary Automatic Tablet Press Machine High Speed Compression
turntable Rotary Automatic Tablet Press Machine High Speed Compression
turntable Rotary Automatic Tablet Press Machine High Speed Compression
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
GZPK-26/32/40
Place of Origin :
Wenzhou China
MOQ :
1
Price :
GZPK-26/ 56000$ GZPK-32/ 57000$ GZPK-40/ 60000$
Payment Terms :
L/C, T/T
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Model :
GZPK-26/GZPK-32/GZPK-40
Capacity （Tablets/h） :
160000/210000/260000
No.of station :
26/32/40
Max.tablet diameter（mm） :
25/16/13
Main.tablet diameter（KN） :
100/80/80
Pre-pressure（KN） :
20/20/20
Description

Double Discharge Automatic High Speed Rotary Tablet Press Compression Automatic Rotary Tablet Press Machine

Technical parameters:

Model GZPK-26 GZPK-32 GZPK-40
Capacity (Tablets/h) 160000 210000 260000
No.of station 26 32 40
Max.tablet diameter(mm) 25 16 13
Rotation speed (r/min) 11-102 11-105 11-105
Main.tablet diameter(KN) 100 80 80
Pre-pressure(KN) 20 20 20
Main.filling depth(mm) 20 16 16
Dia.of.die(mm) 38.1 30.16 24.01
Length of punch(mm) 133.6 133.6 133.6
Total power(Kw) 7.5
Overall weight(Kg) 1800
Overall diemensions(mm) 1170×1000(+530)×1950
Noise ≤75DB(A)

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

Working turntable:

The turntable rotates for one week to drive the die to pass through the feeding mechanism, filling mechanism, pressure mechanism, and tablet discharging mechanism in order to complete the process of continuous tablet pressing. turntable Rotary Automatic Tablet Press Machine High Speed Compression
1.Rotary speed control;
2.On the operation interface, press "speed up", "speed down", key to the turntable for stepless speed regulation

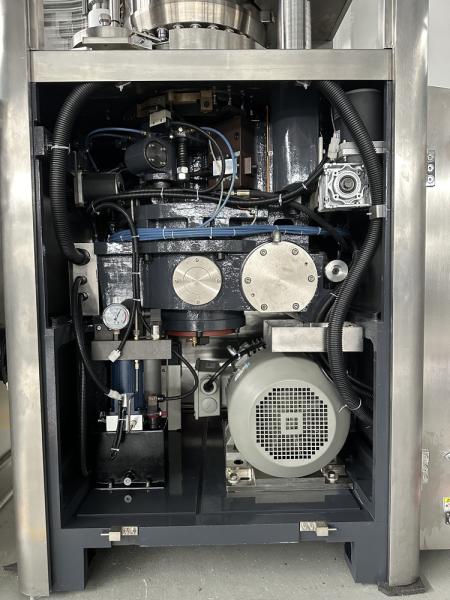

Main pressure mechanism:

turntable Rotary Automatic Tablet Press Machine High Speed Compression
