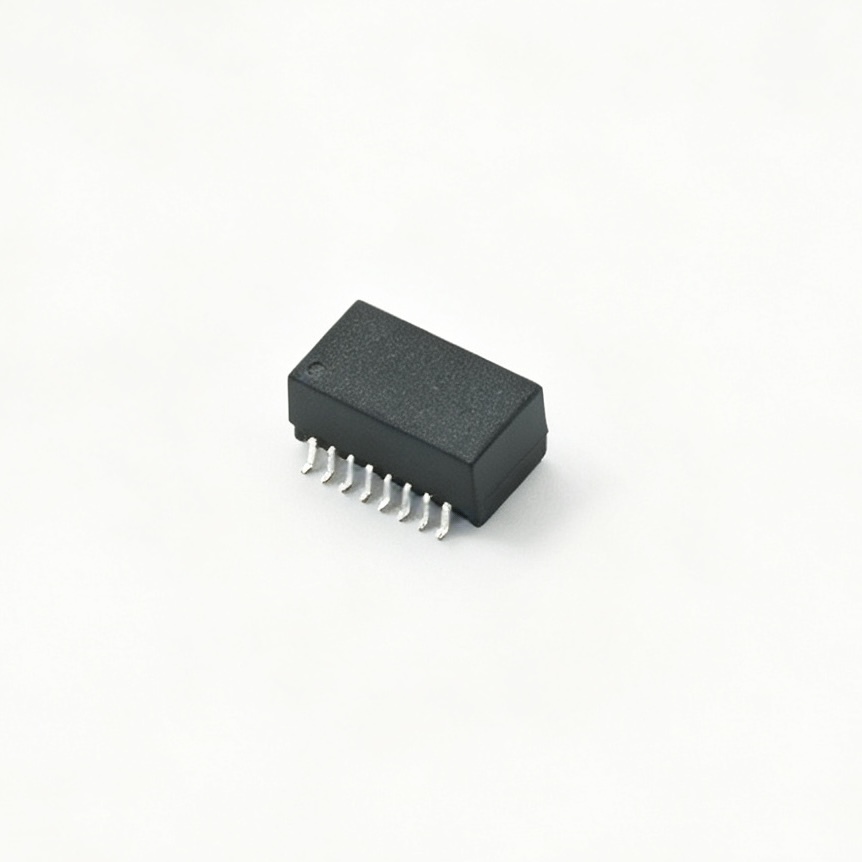

JY-H1183NL RF Transformer 1:1 Impedance Ratio 0.1-100 MHz 50 Ohm SMT Network Transformer
JY-H1183NL RF Transformer 1:1 Impedance Ratio 0.1-100 MHz 50 Ohm SMT Network Transformer
Specifications
Model :
JY-H1183NL
Impedance :
50 Ohm
Brand Name :
JYRF
Package :
SMT Network Transformer
Impedance Ratio :
1:1
Certification :
RoHS Compliant
Place of Origin :
Shenzhen, Guangdong, China
Model Number :
JY-H1183NL
Product Type :
RF Transformer
Frequency Range :
0.1-100 MHz
Description

Electrical Specifications

Parameter Frequency (MHz) Min. Typ. Max. Unit
Impedance Ratio 0.1-100 - 1:1 - -
Frequency Range 0.1-100 - - - MHz
Insertion Loss 0.1-100 - 1.0 2.0 dB
Amplitude Unbalance 0.1-100 - - 0.5 dB
Phase Unbalance 0.1-100 - - 5 deg

Features

  • RoHS compliant

Applications

  • Impedance matching

Maximum Ratings
