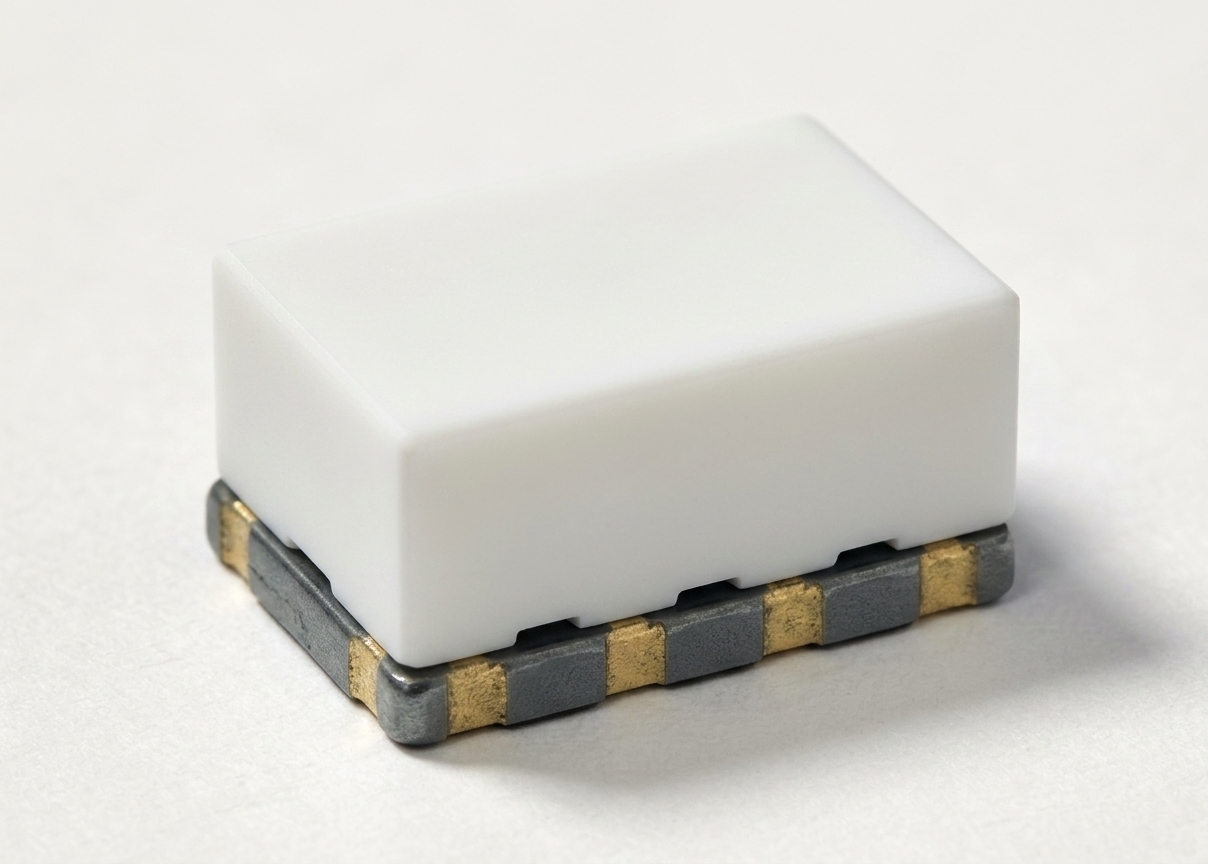

JY-ADT1.5-1+ RF Transformer 1.5:1 Impedance Ratio 0.5-650 MHz 50 Ohm Surface Mount Package
JY-ADT1.5-1+ RF Transformer 1.5:1 Impedance Ratio 0.5-650 MHz 50 Ohm Surface Mount Package
Specifications
Operating Temperature :
-20°C to 85°C
Certification :
RoHS Compliant
Model Number :
JY-ADT1.5-1+
Model :
JY-ADT1.5-1+
Impedance :
50 Ohm
RF Power Input :
1W
Package :
Surface Mount Package
Impedance Ratio :
1.5:1
Place of Origin :
Shenzhen, Guangdong, China
Frequency Range :
0.5-650 MHz
Storage Temperature :
-55°C to 100°C
Product Type :
RF Transformer
Brand Name :
JYRF
Description

Electrical Specifications

Parameter Frequency (MHz) Min. Typ. Max. Unit
Impedance Ratio 0.5-650 - 1.5:1 - -
Frequency Range 0.5-650 - - - MHz
Insertion Loss 0.5-650 - 1.0 2.0 dB
Amplitude Unbalance 0.5-650 - - 0.5 dB
Phase Unbalance 0.5-650 - - 5 deg

Features

  • Excellent return loss, 17 dB typ. in 1 dB bandwidth
  • Aqueous washable

Applications

  • Impedance matching
  • Balance amplifier

Maximum Ratings

Operating Temperature: -20°C to 85°C

Storage Temperature: -55°C to 100°C

RF Power Input: 1W

DC Current: 30mA
