Specifications
Brand Name :
JIAYAO/RUNXI/OEM/ODM
Model Number :
SAE100 R12
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 Meter
Price :
US$ 1 Meter
Payment Terms :
L/C, T/T
Material :
Nitrile Rubber
Capability :
Rubber Oil Hose
Color :
Black
Product Name :
Wire Braid Hydraulic Hose
Application :
Oil Cooling System
Standard :
SAE100 R12
Surface :
Cloth Wrapped or Smooth
Feature :
Flexible, Corrosion Resistant, Abrasion Resistant
Working Temperature :
-40 to 100°c
Siza :
3/8"~2"
Description

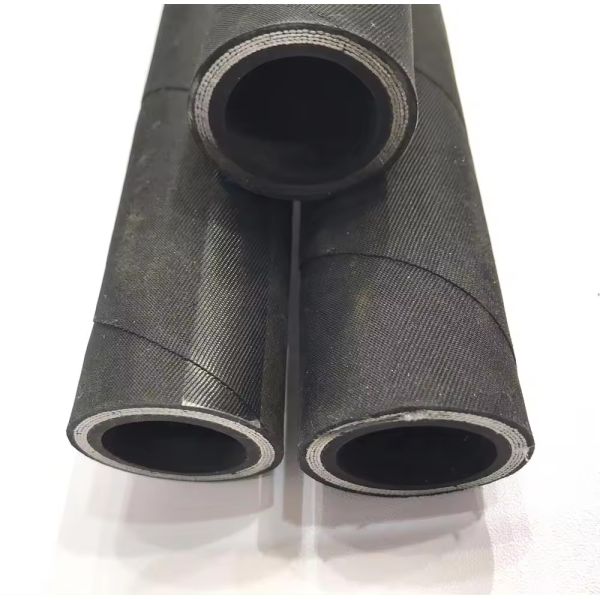

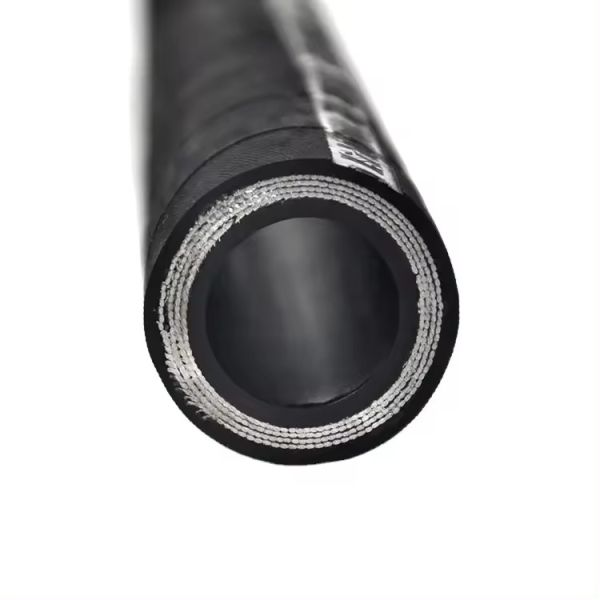

4 Wire spiral Hydraulic Hose SAE 100 R12

SAE 100 R12, high pressure with four wire reinforced hydraulic hose, is suitable for delivering petroleum-based hydraulic oils in the working temperature of -40 °C to +100 °C. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality oil resistant synthetic rubber, making the hose widely used in delivering petroleum-based hydraulic oils. The reinforcement is made from four layers of high tensile and high strength spiraled steel wire in alternating direction, making the hose have very high working pressure. The cover is made from super high quality oil and weather resistant synthetic rubber, making the hose have longer service life.

Recommended For: Extremely high pressure, high impulse hydraulic applications. Exceeds all performance requirements for SAE 100 R9 / R10 / R12, EN856 R9 / R10 / R12, SAE 100 R12 and EN856 4SP. Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.

Tube: Black, oil-resident synthetic rubber (Nitrile)


Reinforcement: Four alternating layers of spiraled, high-tensile steel wire.


Cover: Black, oil-resistant synthetic(Nitrile).


Temperature Range: -40℉ to +250℉ (-40℃ to +121℃)


Application: Hydraulic system service with petroleum and water-based fluids, for general industrial use.

Features:
1,Good resistance to oil
2,Good resistance to extremely high pressure.
3,Good resistance to abrasion, corrosion, weather, ozone, cut, aging and sunlight.

SIZE

SIZE

I.D

O.D

W.P

P.P

B.P

min B.R

W.T
mm Inch Min Max Max Mpa Psi Mpa Psi Mpa Psi inch mm

Kg/m
10 3/8 9.3 10.1 21.0 28 4060 56 8120 112 16240 4.92 125 0.62
13 1/2 12.3 13.5 24.6 28 4060 56 8120 112 16240 7.09 180 0.85
16 5/8 15.5 16.7 28.2 28 4060 56 8120 112 16240 7.87 200 1.29
19 3/4 18.6 19.8 31.5 28 4060 56 8120 112 16240 9.45 240 1.47
25 1 25.0 26.4 39.2 28 4060 56 8120 112 16240 11.81 300 2.00
32 1-1/4 31.4 33.0 48.6 21 3045 42 6090 84 12180 16.54 420 2.86
38 1-1/2 37.7 39.3 55.0 17.5 2540 35 5080 70 10160 19.69 500 3.24
51 2 50.8 52.0 68.3 17.5 2540 35 5080 70 10160 25.20 640 4.80
