EN 854 2TE High Pressure Hydraulic Hose Flexible Wire Braided Rubber Hose Pipe
EN 854 2TE High Pressure Hydraulic Hose Flexible Wire Braided Rubber Hose Pipe
EN 854 2TE High Pressure Hydraulic Hose Flexible Wire Braided Rubber Hose Pipe
EN 854 2TE High Pressure Hydraulic Hose Flexible Wire Braided Rubber Hose Pipe
EN 854 2TE High Pressure Hydraulic Hose Flexible Wire Braided Rubber Hose Pipe
EN 854 2TE High Pressure Hydraulic Hose Flexible Wire Braided Rubber Hose Pipe
EN 854 2TE High Pressure Hydraulic Hose Flexible Wire Braided Rubber Hose Pipe
EN 854 2TE High Pressure Hydraulic Hose Flexible Wire Braided Rubber Hose Pipe
Specifications
MOQ :
1 Meter
Price :
US$ 1 Meter
Payment Terms :
L/C, T/T
Brand Name :
JIAYAO/RUNXI/OEM/ODM
Model Number :
EN854 1TE/2TE/3TE
Certification :
ISO9001:2008
Place of Origin :
China
Material :
Nitrile Rubber
Capability :
Rubber Oil Hose
Color :
Black
Product Name :
Fiber Wire(Non Metallic) Braided Hydraulic Hose
Application :
Petroleum Base Hydraulic Fluids
Standard :
SAE 100/En 854
Description

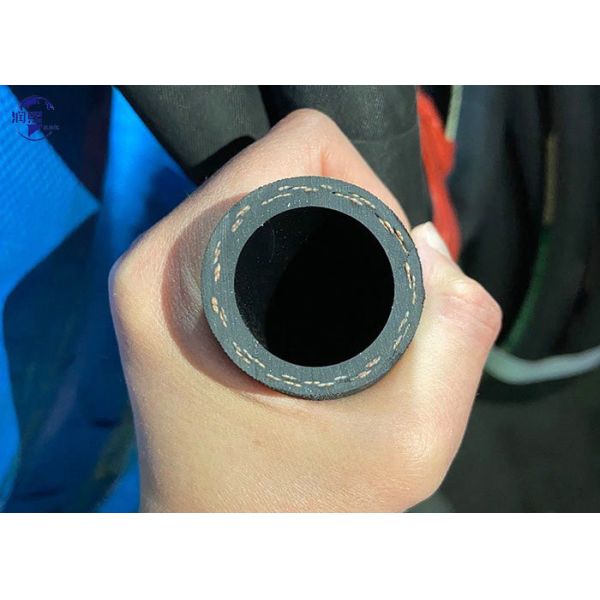

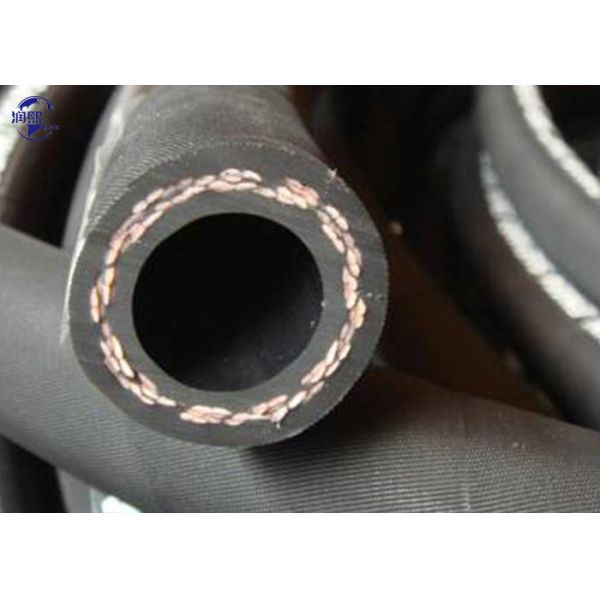

EN854 Textile Reinforced Rubber Hoses:

EN 854 1TE/2TE/3TE textile reinforced hydraulic hose is suitable for delivering petroleum or water-based hydraulic fluids, oil & water emulsions and aqueous glycol solutions. It is mainly used in the machine building industry and hydraulic equipment. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality black, smooth and oil resistant synthetic rubber, making it widely used to deliver hydraulic fluids. The reinforcement is made from one or more layers of braided textile, making the hose have smaller bending radius. And the hose is lightweight and flexible. The cover is made from high quality synthetic rubber, which is resistant to abrasion, corrosion, weather, ozone, aging and sunlight. Therefore, the cover makes the hose have longer service life.

Product Features

1)Hose special selection made with synthetic rubber with excellent oil resistance, heat aging resistance.
2)Hose high pressure, pulse performance.
3)tube tightly, use a soft, small deformation under pressure.
4)hose has excellent resistance around the song and fatigue resistance.
5)weaving, winding hose length, can be even up to ten meters or even one hundred meters or more.

CONSTRUCTION:

Hoses shall consist of an oil and water resistant synthetic rubber lining, one or more layers of suitable textile yarn and an oil and weather resistant rubber cover.

APPLICATIONS:

1.Hydraulic fluids in accordance with ISO 6743-4 with the exception of HRD R, HFD S and HFD T at temperatures ranging from -40℃ to +100℃;

2. Water-based fluids at temperatures ranging from -40℃ to +70℃

3. Water at temperatures ranging from 0℃ to +70℃.

SIZE

I.D mm

O.D mm
All types 1TE 2TE 3TE
mm Min Max Min Max Min Max Min Max
5 4.4 5.2 10.1 11.6 11.0 12.6 12.0 13.6
6 5.8 6.9 11.6 13.2 12.6 14.2 13.6 15.2
8 7.4 8.4 13.1 14.7 14.1 15.7 16.1 17.7
10 9.0 10.0 14.7 16.3 15.7 17.3 17.7 19.3
12 12.1 13.3 17.7 19.7 18.7 20.7 20.7 22.7
16 15.3 16.5 21.9 23.9 22.9 24.9 24.9 26.9
19 18.2 19.8 - - 26.0 28.0 28.0 30.0
25 24.6 26.2 - - 32.9 35.9 34.4 37.4
31 30.8 32.8 - - - - 40.8 43.8
38 37.1 39.1 - - - - 47.6 51.6
51 49.8 51.8 - - - - 60.3 64.3
60 58.8 61.2 - - - - 70.0 74.0
80 78.8 81.2 - - - - 91.5 96.5
100 98.6 101.4 113.5 118.5

SIZE

W.P.

P.P

B.P

Min B.R.
1TE 2TE 3TE 1TE 2TE 3TE 1TE 2TE 3TE 1TE 2TE 3TE
mm bar bar bar bar bar bar bar bar bar mm mm mm
5 25 80 160 50 160 320 100 320 640 35 25 40
6 25 75 145 50 750 290 100 300 580 45 40 45
8 20 68 130 40 136 260 80 272 520 65 50 55
10 20 63 110 40 126 220 80 252 440 75 60 70
12 16 58 93 32 116 186 64 232 372 90 70 85
16 16 50 80 32 100 160 64 200 320 115 90 105
19 - 45 70 - 90 140 - 180 280 - 110 130
25 - 40 55 - 80 110 - 160 220 - 150 150
31 - - 45 - - 90 - - 180 - - 190
38 - - 40 - - 80 - - 160 - - 240
51 - - 33 - - 66 - - 132 - - 300
60 - - 25 - - 50 - - 100 - - 400
80 - - 18 - - 36 - - 72 - - 500
100 - - 10 - - 20 - - 40 - - 600
