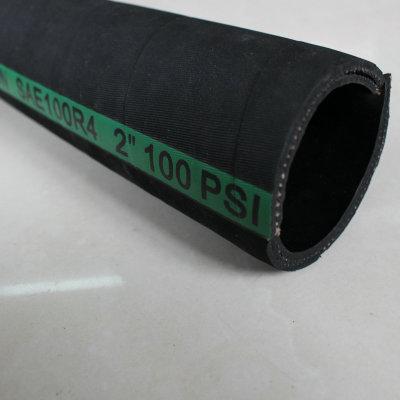

SAE 100R4 Wire Braided Strong Excavator High Pressure Hose Rubber Hydraulic Hose
SAE 100R4 Wire Braided Strong Excavator High Pressure Hose Rubber Hydraulic Hose
SAE 100R4 Wire Braided Strong Excavator High Pressure Hose Rubber Hydraulic Hose
SAE 100R4 Wire Braided Strong Excavator High Pressure Hose Rubber Hydraulic Hose
SAE 100R4 Wire Braided Strong Excavator High Pressure Hose Rubber Hydraulic Hose
SAE 100R4 Wire Braided Strong Excavator High Pressure Hose Rubber Hydraulic Hose
SAE 100R4 Wire Braided Strong Excavator High Pressure Hose Rubber Hydraulic Hose
SAE 100R4 Wire Braided Strong Excavator High Pressure Hose Rubber Hydraulic Hose
SAE 100R4 Wire Braided Strong Excavator High Pressure Hose Rubber Hydraulic Hose
SAE 100R4 Wire Braided Strong Excavator High Pressure Hose Rubber Hydraulic Hose
SAE 100R4 Wire Braided Strong Excavator High Pressure Hose Rubber Hydraulic Hose
SAE 100R4 Wire Braided Strong Excavator High Pressure Hose Rubber Hydraulic Hose
Specifications
MOQ :
1 Meter
Price :
US$ 1 Meter
Payment Terms :
L/C, T/T
Brand Name :
JIAYAO/RUNXI/OEM/ODM
Model Number :
SAE100 R4
Certification :
ISO9001:2008
Place of Origin :
CHINA
Material :
Nitrile Rubber
Capability :
Rubber Oil Hose
Color :
Black
Product Name :
Fiber Wire(Non Metallic) Braided Hydraulic Hose
Application :
Petroleum Base Hydraulic Fluids
Standard :
SAE 100 R4
Surface :
Cloth Wrapped or Smooth
Feature :
Flexible, Corrosion Resistant, Abrasion Resistant
Working Temperature :
-40 to 100°c
Description

SAE 100R4 hydraulic oil return hose

SAE 100 R4 hydraulic hose is suitable for delivering petroleum-based hydraulic oil. It is composed of three parts: tube, reinforcement and cover. Tube is made from oil resistant synthetic rubber, making hose have excellent performance in delivering petroleum-based hydraulic oil. Reinforcement is made from one layer or multiple layers of cloth or textile fibers with proper steel wire spiral, making hose suitable for high working pressure environment. Cover is made from oil and weather resistant synthetic rubber, making hose suitable for terrible working environment.

Features and advantages: Operating pressure range is 40-305 PSI depending on size Small bending radius, using low force can be bent, easy to install SAE 100R4, J1942 Oil and weather resistant synthetic rubber outer layer

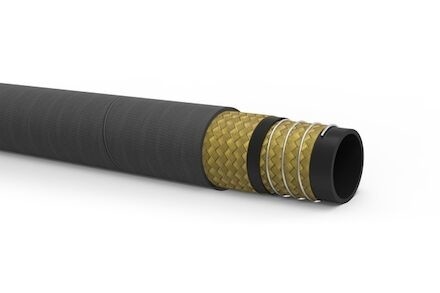

Structure: The hose is composed of a layer of oil resistant synthetic rubber, a reinforced layer of single or multiple layers of cloth or multiple layers of cloth or woven textile fibers and an appropriate pipe body wire roundabout line or an oil and weather resistant synthetic rubber outer layer.
Application: Suitable for oil based hydraulic fluids with temperature range from -40℃ to +100℃ (-40℉ to +212℉) hoses.ter layer.

SIZE

SIZE

I.D

O.D

W.P

P.P

B.P

min B.R

W.T
mm Inch Min Max Max Mpa Psi Mpa Psi Mpa Psi inch mm

Kg/m
19 3/4 18.2 19.8 34.9 2.1 305 4.2 610 8.4 1210 4.92 125 0.92
25 1 24.6 26.2 41.3 1.7 250 3.5 510 7 1015 5.91 150 1.10
31.5 1-1/4 30.6 33.0 50.8 1.4 200 2.8 410 5.6 810 7.87 200 1.30
38 1-1/2 36.9 39.3 57.2 1.05 150 2.1 305 4.2 610 10.04 255 1.80
51 2 49.2 52.4 69.9 0.7 100 1.4 200 2.8 410 11.81 300 2.23
63 2-1/2 61.9 65.1 82.6 0.4 60 0.85 120 1.7 250 13.98 355 3.23
76 3 74.6 77.8 95.3 0.4 60 0.8 120 1.6 230 18.11 460 4.25
89 3-1/2 87.3 90.5 107.9 0.3 40 0.6 90 1.25 180 20.87 530 5.05
102 4 100.0 103.2 120.7 0.25 40 0.5 70 1 145 24.02 610 5.60
