Specifications
MOQ :
1 Meter
Price :
US$ 1 Meter
Payment Terms :
L/C, T/T
Brand Name :
JIAYAO/RUNXI/OEM/ODM
Model Number :
SAE100 R1
Certification :
ISO9001:2008
Place of Origin :
CHINA
Material :
Nitrile Rubber
Capability :
Rubber Oil Hose
Color :
Black
Product Name :
Wire Braid Hydraulic Hose
Application :
Oil Cooling System
Standard :
SAE100 R1
Surface :
Cloth Wrapped or Smooth
Working Temperature :
-40 to 100°c
Size :
1/4"~2"
Feature :
Flexible, Corrosion Resistant, Abrasion Resistant
Description

SAE100 R1

High pressure hose is made of internal rubber ,middle rubber,1 layer of wire-wood,and external rubber .

One Steel Wire Rubber Braided High Pressures Hydraulic Hose:

This hose shall consist of an inner tube of oil resistant synthetic rubber, a single steel wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.

Purpose: Suitable for petroleum based and water based hydraulic fluids.
Working temperature: -40 ºC~+100 ºC.

A hydraulic hose is used anywhere in a hydraulic system requiring a flexible connection between two fluid ports. A hydraulic hose is a synthetic rubber tube surrounded by some sort of flexible strength enhancing winding, such as metal or fiber, and then covered in another rubber carcass

RUNXI products are analyzed for quality assurance and specifications at many points of the manufacturing process to insure that we ship the very best finished products to our customers. In addition, we perform hydraulic pressure testing and impulse testing to ensure that our products perform to rated specifications.
To compliment our hose products, choose from a variety of accessories, such as steel, brass, and stainless steel hydraulic adapters and split flange kits. To enhance hose life and performance we have spring guards, nylon hose sleeving, and spiral-guard hose sleeving. These products are manufactured from the same sources as the largest hose manufacturing names at a significant price savings.
SAE 100 R1 High Pressure Steel Wire Braided Flexible Hydraulic Rubber Hyd HoseSAE 100 R1 High Pressure Steel Wire Braided Flexible Hydraulic Rubber Hyd Hose
1. The inner and outer rubber layers are made of synthetic rubber with excellent oil resistance.
2. The reinforcing layer is made of high-strength chemical fiber materials.
3. The temperature of transmission medium is - 40 -+55 ºC.
Burst pressure: more than 4 times of the working pressure.
Hydraulic Hose Size Chart:

SIZE

SIZE

I.D

W.D

O.D

W.P

P.P

B.P

min B.R

W.T
mm Inch Min Max Min Max Min Max Max Mpa Psi Mpa Psi Mpa Psi inch mm

Kg/m
5 3/16 4.6 5.4 8.9 10.1 11.9 13.5 12.5 21 3045 42 6090 84 12180 3.54 90 0.20
6.3 1/4 6.2 7.0 10.6 11.7 15.1 16.7 14.1 19.2 2780 38.5 5580 77 11165 3.94 100 0.25
8 5/16 7.7 8.5 12.1 13.3 16.7 18.3 15.7 17.5 2540 35 5075 70 10150 4.53 115 0.31
10 3/8 9.3 10.1 14.5 15.7 19.0 20.6 18.1 15.7 2280 31.5 4570 63 9135 4.92 125 0.36
12.5 1/2 12.3 13.5 17.5 19.0 22.2 23.8 21.5 14 2030 28 4060 56 8120 7.09 180 0.45
16 5/8 15.5 16.7 20.6 22.2 25.4 27.0 24.7 10.5 1520 21 3045 42 6090 8.07 205 0.52
19 3/4 18.6 19.8 24.6 26.2 29.4 31.0 28.6 8.7 1260 17.5 2540 35 5075 9.45 240 0.65
25 1 25.0 26.4 32.5 34.1 36.9 39.3 36.6 7 1015 14 2030 28 4060 11.81 300 0.91
31.5 1-1/4 31.4 33.0 39.3 41.7 44.4 47.6 44.8 4.3 620 8.7 1260 17.5 2540 16.54 420 1.30
38 1-1/2 37.7 39.3 45.6 48.0 50.8 54.0 52.0 3.5 510 7 1015 14 2030 19.69 500 1.70
51 2 50.4 52.0 58.7 61.9 65.1 68.3 65.9 2.6 380 5.2 750 10.5 1520 24.8 630 2.00

SAE 100 R1 High Pressure Steel Wire Braided Flexible Hydraulic Rubber Hyd Hose

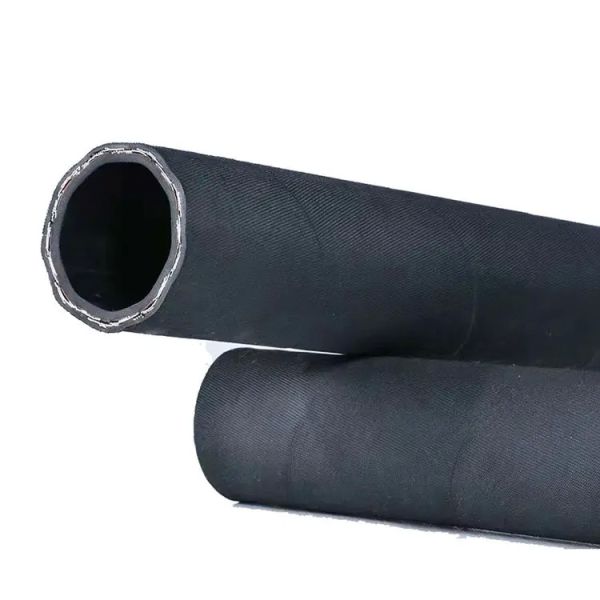

Wrapped Surface:

SAE 100 R1 High Pressure Steel Wire Braided Flexible Hydraulic Rubber Hyd Hose

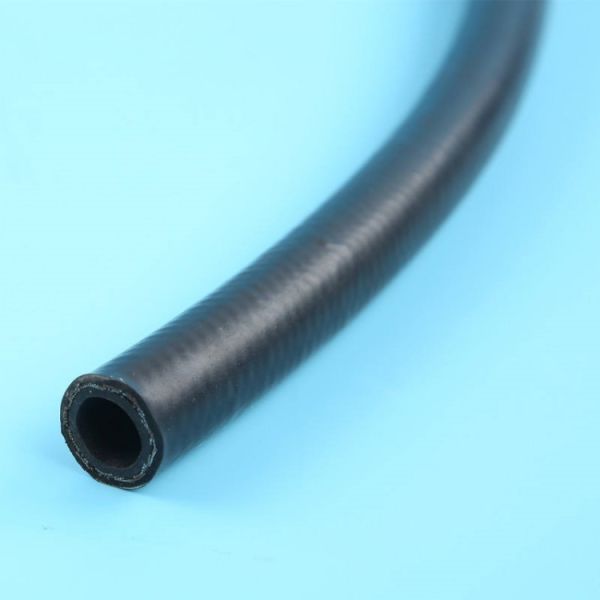

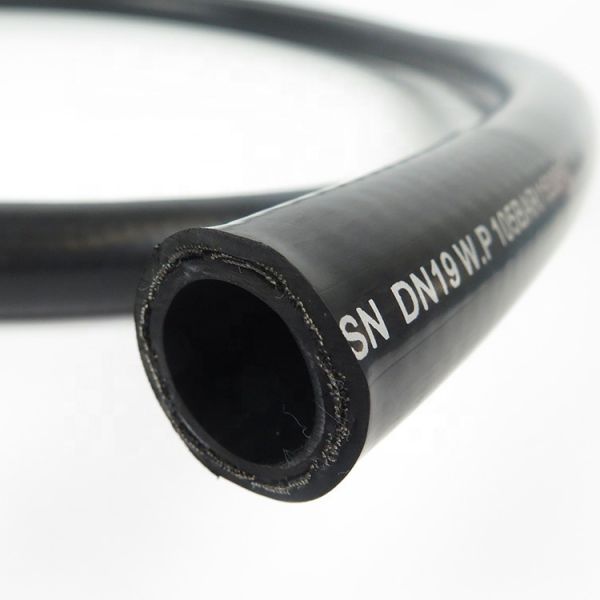

Smooth Surface:

SAE 100 R1 High Pressure Steel Wire Braided Flexible Hydraulic Rubber Hyd HoseSAE 100 R1 High Pressure Steel Wire Braided Flexible Hydraulic Rubber Hyd Hose
