Specifications
Brand Name :
JIAYAO/RUNXI/OEM/ODM
Model Number :
SAE100 R3
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 Meter
Price :
US$ 1 Meter
Payment Terms :
L/C, T/T
Material :
Nitrile Rubber
Capability :
Rubber Oil Hose
Color :
Black
Product Name :
Fiber Wire(Non Metallic) Braided Hydraulic Hose
Application :
Petroleum Base Hydraulic Fluids
Standard :
SAE 100 R3
Surface :
Cloth Wrapped or Smooth
Feature :
Flexible, Corrosion Resistant, Abrasion Resistant
Working Temperature :
-40 to 100°c
Description

SAE100 R3 Textile Reinforced Rubber Hoses:

SAE 100 R3 textile reinforced hydraulic hose is suitable for delivering petroleum or water-based hydraulic fluids. It is mainly used in low pressure conditions and it is also used in pneumatic applications. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality oil resistant synthetic rubber, and it doesn't react with petroleum or water-based hydraulic fluids. The reinforcement is made from two layers of braided textile, making the hose lightweight and flexible. The hose is easy to operate as a result. The cover is made from high quality abrasion, corrosion, weather and oil resistant synthetic rubber, making the hose have longer service life.

Application: This hose is suitable for delivering petroleum or water-based hydraulic fluids. It’s mainly used in low pressure conditions and it is also used in pneumatic applications. Applicable specs: SAE J517 100 R3, ISO 4079 R3.

Features:
1.It's lightweight and flexible by made from two layers of braided textile reinforcement.
2.It doesn't react with petroleum or water-based hydraulic fluids by made from high quality oil resistant synthetic rubber.
3.Good resistance to oil, abrasion, corrosion and weather.
4.Easy to operate.
5.With longer service life.

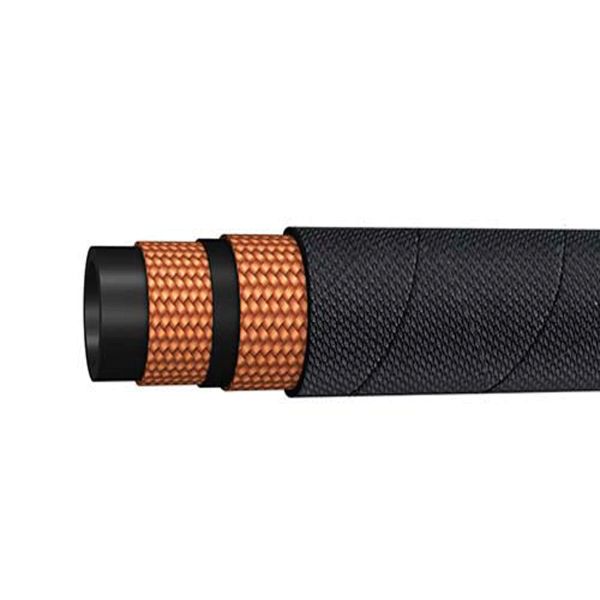

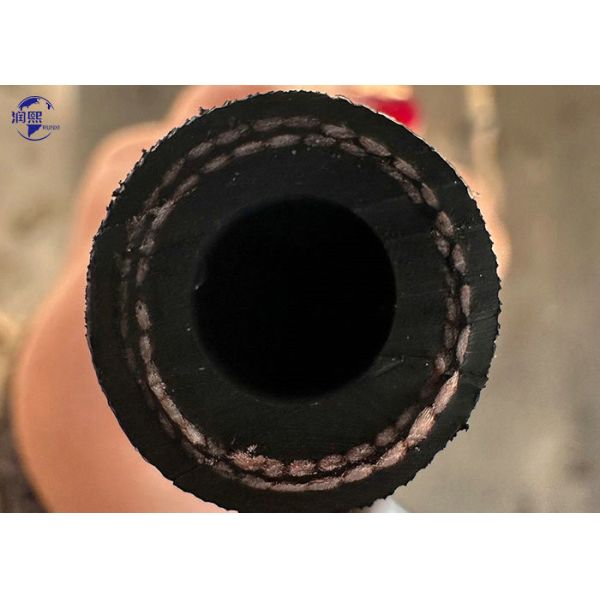

Material: Tube: High quality oil resistant synthetic rubber. Reinforcement: Two layers of braided textile. Cover: High quality abrasion, corrosion, weather and oil resistant synthetic rubber.
Working temperature range: -40°C to +100°C .

SIZE

SIZE

I.D

O.D

W.P

P.P

B.P

min B.R

W.T
mm Inch Min Max Min Max Mpa Psi Mpa Psi Mpa Psi inch mm

Kg/m
5 3/16 4.5 5.4 11.9 13.5 10.5 1520 21 3050 42 6090 2.95 75 0.16
6.3 1/4 6.1 7.0 13.5 15.1 8.7 1260 17.5 2540 35 5075 2.95 75 0.18
8 5/16 7.6 8.5 16.7 18.3 8.4 1220 16.8 2440 33.5 4860 3.94 100 0.27
10 3/8 9.2 10.1 18.3 19.8 7.8 1130 15.7 2280 31.5 4570 3.94 100 0.31
12.5 1/2 12.4 13.5 23.0 24.6 7 1015 14 2030 28 4060 4.92 125 0.45
16 5/8 15.6 16.7 26.2 27.8 6.1 885 12.2 1770 24.5 3550 5.51 140 0.53
19 3/4 18.7 19.8 31.0 32.5 5.2 750 10.5 1520 21 3045 5.91 150 0.72
25 1 25.1 26.2 36.9 39.3 3.9 570 7.8 1130 15.7 2280 8.07 205 0.90
31.5 1-1/4 31.4 32.9 42.9 46.0 2.6 380 5.2 750 10.5 1520 9.84 250 1.07
