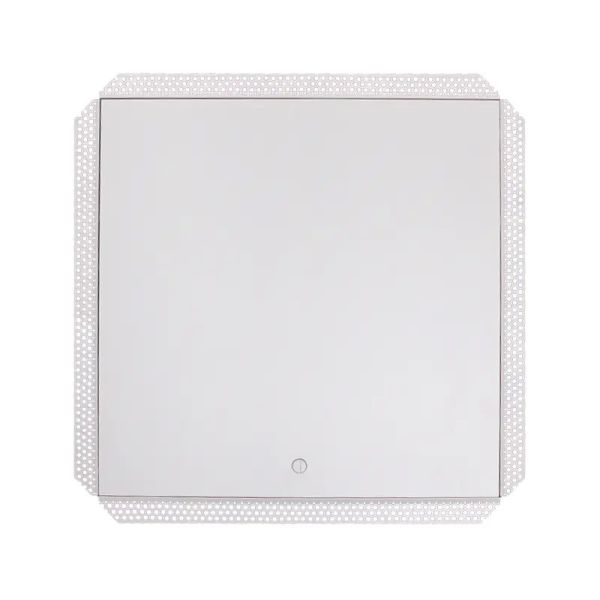

HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
HFSS-AP280SB MDF Access Panel with Beaded Frame
Specifications
Model Number :
HFSS-AP280SB
Description

Description:

1. MDF access panel for wall or ceiling application.

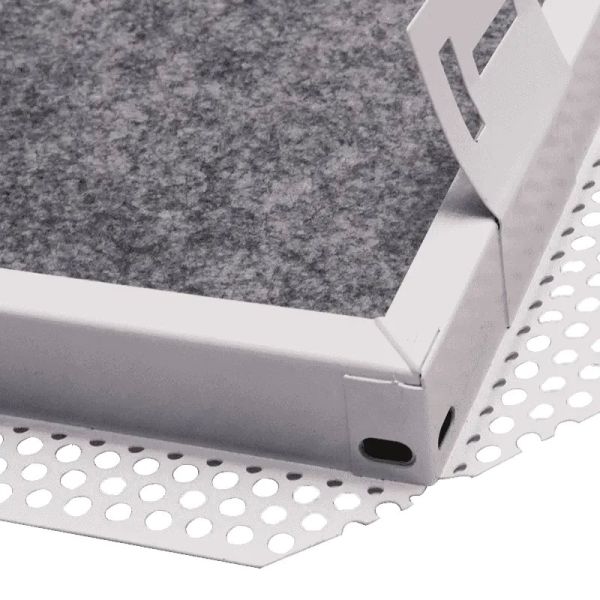

2. 1 mm galvanized steel frame.
3. 15mm MDF with felt coveringSoundprooff rubber sealing between door and frame.

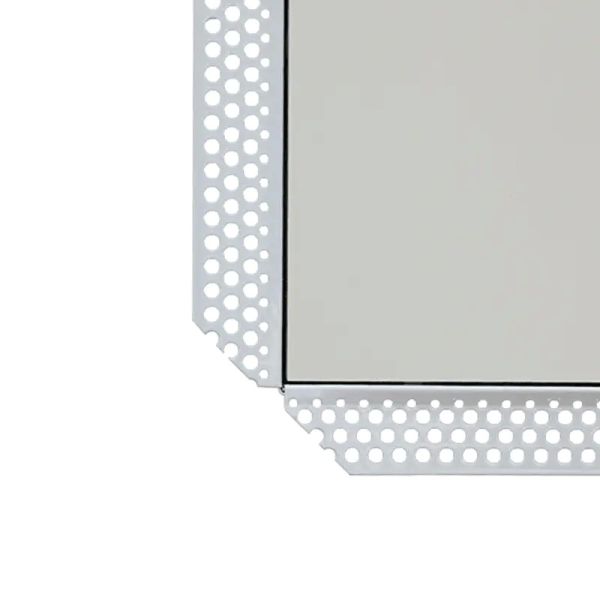

4. Set Bead frame.
5. White powder coating finish or special color available.
6. High durability and corrosion protection.

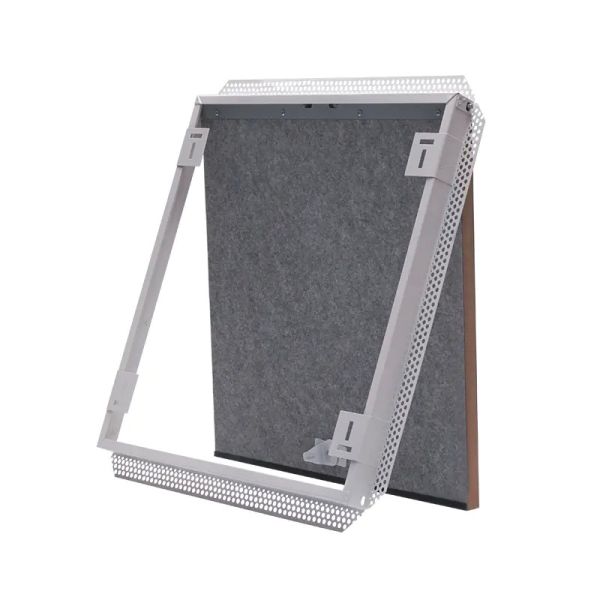

7. Steel bar with spring hinges door removable.
8. Four bendable ears for fixing screws.

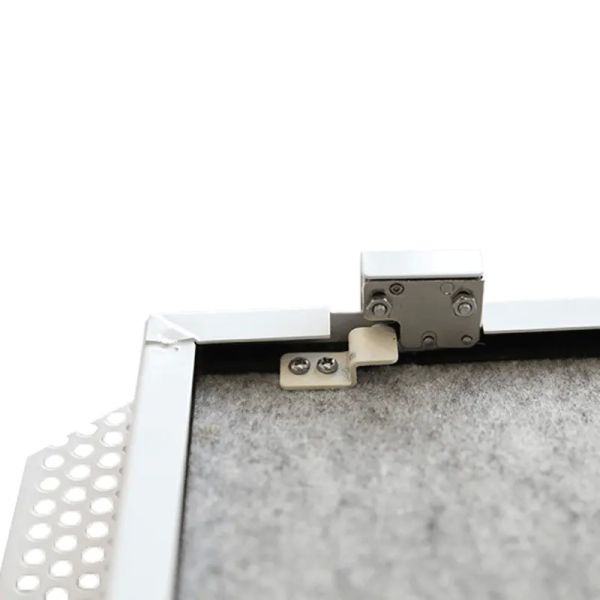

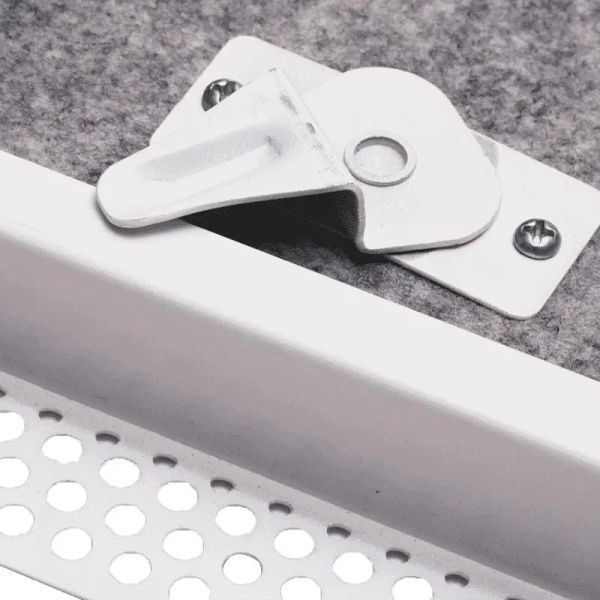

9. Lock: slotted lock / square lock/budget lock.
10. Standard size : 20x20/30x30/45x45/60x60.
11. All sizes are welded frame.
12. Customized size available.

Packaging:

1.Each piece is put into a poly bag with shrink wrap,
then put into a carton.

Advantage:

1.Different locks available.

2. Slotted lock operated by screwdriver or coin.

3. Square lock operated by L key.

4. Budget lock operated by T plastic key.

5. The access panel achieved a weighted sound reduction index rating of 30.


Regular size

Item Neck Size(mm) Opening Size W1×L1(mm) Overall Size W2×L2(mm)
HFSS-AP280SB 200x200 196x196 248x248
300x300 296x296 348x348
400x400 396x396 448x448
500x500 496x496 548x548
600x600 596x596 648x648
