HFSS-AP220 Steel Access Panel With Square Lock
HFSS-AP220 Steel Access Panel With Square Lock
HFSS-AP220 Steel Access Panel With Square Lock
HFSS-AP220 Steel Access Panel With Square Lock
HFSS-AP220 Steel Access Panel With Square Lock
HFSS-AP220 Steel Access Panel With Square Lock
HFSS-AP220 Steel Access Panel With Square Lock
HFSS-AP220 Steel Access Panel With Square Lock
HFSS-AP220 Steel Access Panel With Square Lock
HFSS-AP220 Steel Access Panel With Square Lock
HFSS-AP220 Steel Access Panel With Square Lock
HFSS-AP220 Steel Access Panel With Square Lock
HFSS-AP220 Steel Access Panel With Square Lock
HFSS-AP220 Steel Access Panel With Square Lock
Specifications
Model Number :
HFSS-AP220
Description

Description:

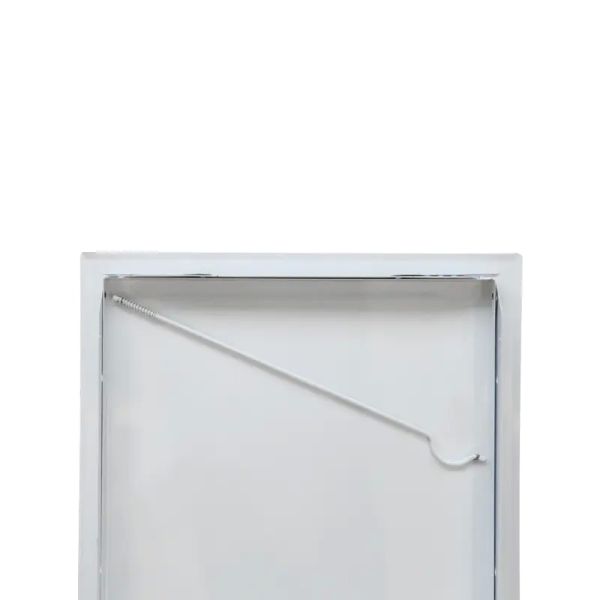

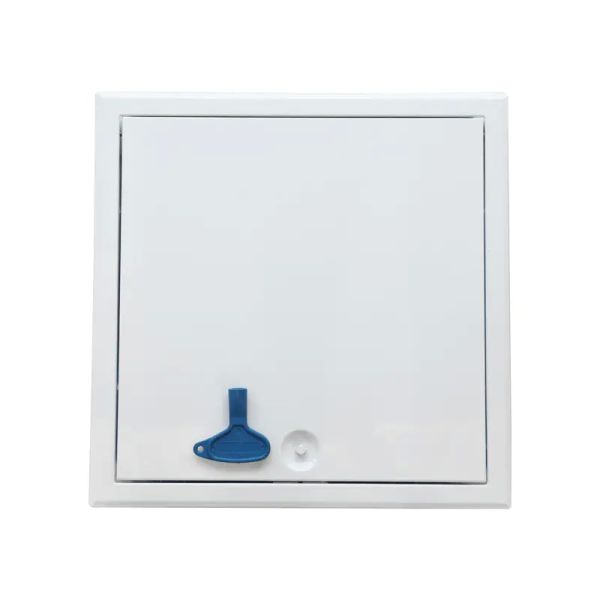

1. Access panel for wall or ceiling application.

2. 1mm galvanized steel frame and lid.

3 . Flange frame finish.

4. White powder-coated finishes or special colors are available.

5. High durability and corrosion protection.

6. The steel-bar hinge doors are removable.

7. Swing tab for installation fixing screw.

8. Lock: Square cam lock with a plastic key.

9. Standard size: 20x20/30x30/40x40/45x45/50x50/60x60.

10. 20x20/30x30/40x40 with a punched frame, 50x50/60x60 with a welded frame.

11 . Customized size available.

1 2. Packaging: Place each piece in a poly bag with shrink wrap, then into a cardboard box.


Regular size

Item Neck Size(mm) Opening Size W1×L1(mm) Overall Size W2×L2(mm)
HFSS-AP220 200x200 195x195 235x235
300x300 295x295 335x335
400x400 395x395 435x435
500x500 495x495 535x535
600x600 595x595 635x635
