Diamond Fiber Laser Engraving Machine
Diamond Fiber Laser Engraving Machine
Diamond Fiber Laser Engraving Machine
Diamond Fiber Laser Engraving Machine
Diamond Fiber Laser Engraving Machine
Diamond Fiber Laser Engraving Machine
Diamond Fiber Laser Engraving Machine
Diamond Fiber Laser Engraving Machine
Diamond Fiber Laser Engraving Machine
Diamond Fiber Laser Engraving Machine
Diamond Fiber Laser Engraving Machine
Diamond Fiber Laser Engraving Machine
Specifications
Model NO. :
HF20
Type :
Engraving Machine
Processing Object :
Optical Fiber Laser
Abrasives :
Optical Fiber Laser
Controlling Mode :
CNC
Automatic Grade :
Automatic
Cylindrical Grinder Type :
Universal Cylindrical Grinder
Precision :
Precision
Certification :
ISO 9001
Condition :
New
Transport Package :
Wooden Case
Specification :
1890mm*1650mm*1980mm
Trademark :
DEMINA
Origin :
China
HS Code :
8460390000
Production Capacity :
50 Sets Peryear
MOQ :
1 Piece
Price :
US $42,000 / Piece
Description

Product Description

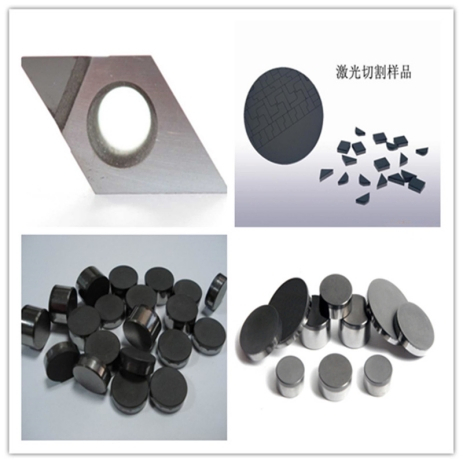

Laser cutting is a new type of cutting method, and also one of the important aspects of laser material processing technology. Fiber laser cutting machine is through the control of high precision fiber laser pulse width, pulse energy, peak power and repetition frequency and other parameters, so that it emits 1064nm wavelength infrared laser beam, after collimating focusing so that the laser focus spot diameter of 0.05 to 0.08mm, the temperature reached 1600 degrees Celsius, The superhard material is vaporized at high temperature and then is blown away by the high pressure gas coaxial with the laser to form a small hole, the use of precision numerical control software to control the movement platform to drive the workpiece and laser beam for relative motion to connect the laser hole into a line segment to achieve the purpose of cutting.
Item Parameter






Laser system		 Laser medium Optical fiber
Central wavelength 1080nm
Average output power 300w
Maximum peak power 3000w
Maximum pulse energy 30J
Repetition frequency 0.001~10kHz
Pulse width 0.01~10ms
Bundle parametric product ≤2@50μm
Cooling mode Air cooling



Machinability		 Maximum cutting thickness 6mm
Operating stroke Standard200*200mm
Positioning/repeat positioning accuracy ±0.01mm
Minimum cut gap 0.06mm
Operating
environment		 Operating voltage/frequency Signal 220
(AC)±10%/50HzV
Operating temperature range 10 ~ 40ºC
Complete machine Net weight 400kg
Dimension(W×D×H) 1350× 1450× 1730mm
Diamond Fiber Laser Engraving MachineDiamond Fiber Laser Engraving MachineDiamond Fiber Laser Engraving MachineWelcome to inquiry!
