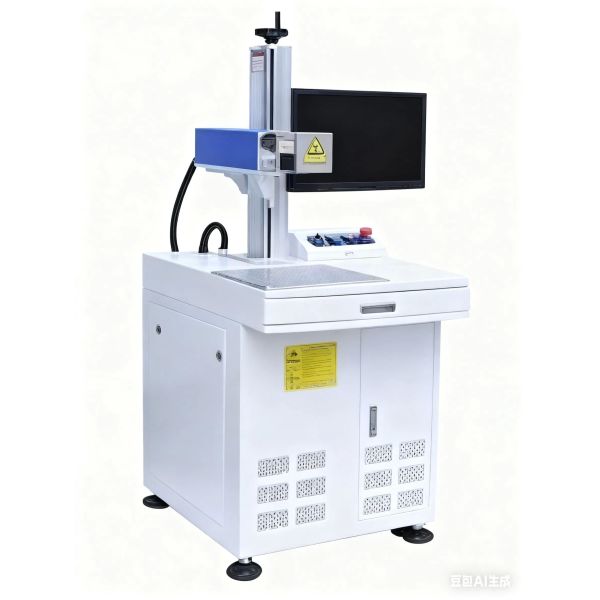

Fiber Laser Marking Machine for Carbide
Fiber Laser Marking Machine for Carbide
Fiber Laser Marking Machine for Carbide
Fiber Laser Marking Machine for Carbide
Fiber Laser Marking Machine for Carbide
Fiber Laser Marking Machine for Carbide
Fiber Laser Marking Machine for Carbide
Fiber Laser Marking Machine for Carbide
Fiber Laser Marking Machine for Carbide
Fiber Laser Marking Machine for Carbide
Fiber Laser Marking Machine for Carbide
Fiber Laser Marking Machine for Carbide
Specifications
Model NO. :
HF20
Laser Visibility :
Visible
Applicable Material :
Metal
Cooling System :
Air Cooling
Technical Class :
Continuous Wave Laser
Laser Wavelength :
Fiber Laser
Laser Classification :
Free Electron Laser
Type :
Fiber Ser Marking Machine
Marking Method :
Scanning Marking
Transport Package :
Wooden Case
Specification :
1350*1450*1730mm
Trademark :
DEMINA
Origin :
China
MOQ :
1 Piece
Price :
US $17,600 / Piece
Description
Product Description

Fiber laser marking machine is the use of fiber laser as the main light source, through the precision control software control high-speed scanning vibroscope laser beam focused into fine laser points, action directly on the surface of the material, the material gasification at high temperature to form the required marking traces. Fiber laser has the characteristics of small size, excellent beam quality and maintenance-free.
Features

1.It can processing be a variety of metal, non-metallic materials, especially has more advantages for high hardness, high melting point, brittle materials marked.
2.It belongs to non-contact processing, no damage to the product, no tool wear, marking quality is good.
3.Fine laser beam, small processing material consumption and small zone of processing heat affected.
4.High processing efficiency, computer controlled and easy to realize automation.
Application field
Widely apply to integrated circuit chips, computer accessories, industrial bearings, clocks, electronic and communication products, aerospace devices, all kinds of automobile parts, household appliances, hardware tools, molds, wire and cable, food packaging, jewelry, tobacco and other fields of graphic and text marking, as well as mass production line operations.
Technical parameters and price
Product Parameters

Product model HZ-ZF20W/30W/50W
Laser power 20w/30w/50w
Laser center wavelength 1064nm
Laser beam quality(m2) <1.5
Laser repetition rate 20-100KHz
Cooling mode Air cooling
Scope of work 110*110 150*150 175*175 200*200 Four items are optional
Marking depth 0.1-0.5mm
Marking speed 1-5000mm/s
Minimum line width ≤0.01mm
Minimum character ≤0.3mm
Repeated positioning accuracy ≤0.01mm
Overall power consumption ≤600w
Power requirement 220V/50Hz/10A
Detailed Photos

Fiber Laser Marking Machine for CarbideFiber Laser Marking Machine for CarbideFiber Laser Marking Machine for CarbideFiber Laser Marking Machine for CarbideFiber Laser Marking Machine for Carbide
