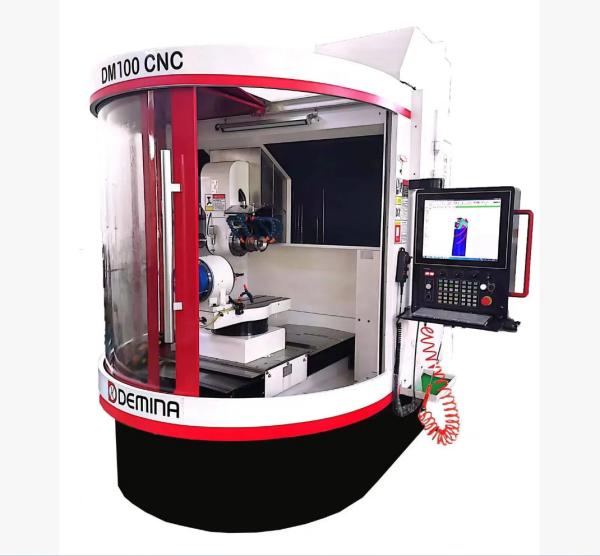

DM-100 5-Axis CNC Carbide Endmill Regrinding Machine
DM-100 5-Axis CNC Carbide Endmill Regrinding Machine
DM-100 5-Axis CNC Carbide Endmill Regrinding Machine
DM-100 5-Axis CNC Carbide Endmill Regrinding Machine
DM-100 5-Axis CNC Carbide Endmill Regrinding Machine
DM-100 5-Axis CNC Carbide Endmill Regrinding Machine
DM-100 5-Axis CNC Carbide Endmill Regrinding Machine
DM-100 5-Axis CNC Carbide Endmill Regrinding Machine
DM-100 5-Axis CNC Carbide Endmill Regrinding Machine
DM-100 5-Axis CNC Carbide Endmill Regrinding Machine
DM-100 5-Axis CNC Carbide Endmill Regrinding Machine
DM-100 5-Axis CNC Carbide Endmill Regrinding Machine
DM-100 5-Axis CNC Carbide Endmill Regrinding Machine
DM-100 5-Axis CNC Carbide Endmill Regrinding Machine
Specifications
Certification :
ISO 9001
MOQ :
1 Piece
Brand Name :
DEMINA
Model Number :
DM-100
Place of Origin :
CHINA
Payment Terms :
T/T
Supply Ability :
50 SETS PER YEAR
Delivery Time :
60 DAYS
Packaging Details :
Pallet
Model NO. :
DM-100
Type :
Tool Grinding Machine
Processing Object :
Carbide Tools
Abrasives :
Grinding Wheel
Controlling Mode :
CNC
Automatic Grade :
Automatic
Cylindrical Grinder Type :
Cutting Tool Grinder
Precision :
Precision
Condition :
New
Transport Package :
Pallet
Specification :
2500mm*2250mm*2550mm
Trademark :
DEMINA
Origin :
China
HS Code :
84603100
Production Capacity :
50
Description

Description

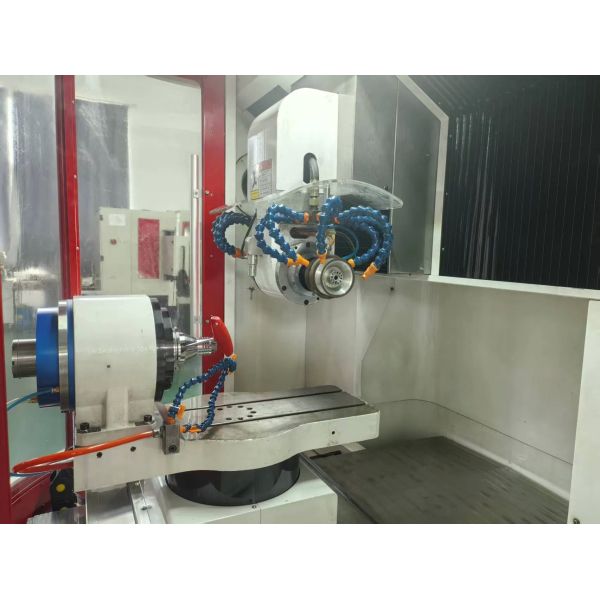

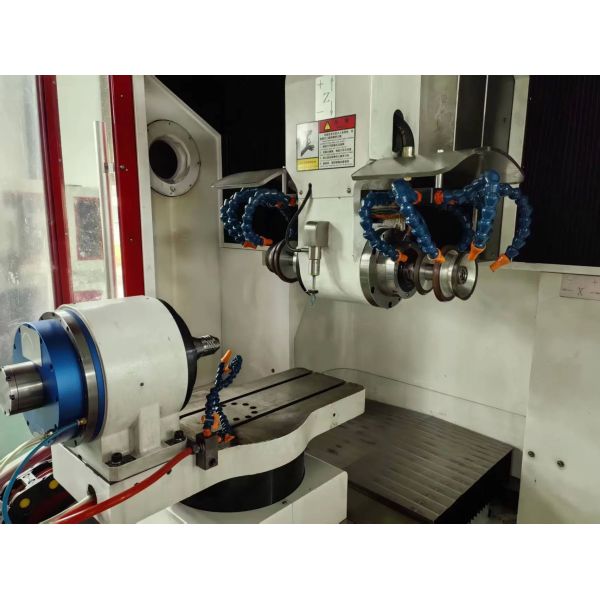

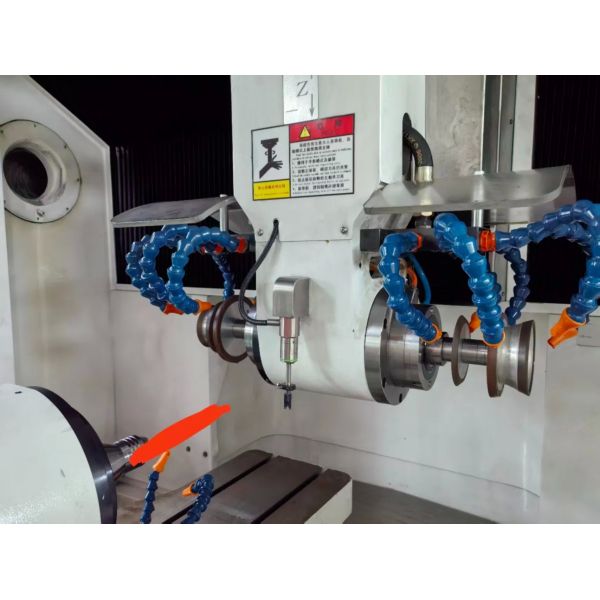

DM100 five-axis CNC tool grinder is developed for tool production as well as resharpening. The machine tool is a iron casting based and rigid machine, in which the X, Y, Z is linear axis and the A, C are rotating axis with the application of GSYun.It is specialized in the production of standard mills varied,drill bits,reamers, non-standard cutters,and other cutting tools, with low efficiency, high precision.In high-speed steel, cemented carbide tool manufacturing field it has extraordinary advantages.


Main Parameters

Model

DM-100

1

X axis travel

600mm

2

Y axis travel

350mm

3

Z axis travel

200mm

4

A axis travel

Consecutive 3 6 0 °

5

C axis travel

±180°

6

X axis positioning accuracy

0.005mm

7

Y axis positioning accuracy

0.005mm

8

Z axis positioning accuracy

0 005mm

9

A axis positioning accuracy

±5Arc sec

10

C axis positioning accuracy

±5Arc sec

11

Repeat positioning accuracy

±2 Arc sec

12

Spindle rated power

10KW

13

Speed of main shaft

0 - 6000 RPM/min

14

Number of grind wheels installed

6-8 pieces

15

Maximum wheel diameter

Φ150mm

16

Diameter of Grinding Wheel Rod

HSK50E

17

Taper of workpiece shank

BT50

18

Maximum grinding length

Blade length: 7 0 mm;

total Length: 1 0 0 mm

19

Minimum handle diameter

Φ3mm

20

Maximum workpiece shank diameter

Φ12mm

21

Maximum length of workpiece

Φ100mm

22

Working pressure

0 6~0 8 MPa

23

Cooling fluid flow

85L/min

24

Total rated power of equipment

20 kw ( three- phase AC3 8 0 V)

25

Length*Width*Height

2100*2200*2400mm

26

Total equipment weight

4000kg
