CNC 5-Axis Tool Grinding Machine Introduction
CNC 5-Axis Tool Grinding Machine Introduction
CNC 5-Axis Tool Grinding Machine Introduction
CNC 5-Axis Tool Grinding Machine Introduction
CNC 5-Axis Tool Grinding Machine Introduction
CNC 5-Axis Tool Grinding Machine Introduction
CNC 5-Axis Tool Grinding Machine Introduction
CNC 5-Axis Tool Grinding Machine Introduction
CNC 5-Axis Tool Grinding Machine Introduction
CNC 5-Axis Tool Grinding Machine Introduction
CNC 5-Axis Tool Grinding Machine Introduction
CNC 5-Axis Tool Grinding Machine Introduction
Specifications
Model NO. :
DM300
Type :
Tool Grinding Machine
Processing Object :
Thread
Abrasives :
Grinding Wheel
Controlling Mode :
CNC
Automatic Grade :
Automatic
Cylindrical Grinder Type :
Universal Cylindrical Grinder
Precision :
High Precision
Certification :
ISO 9001
Condition :
New
Transport Package :
Wooden Case
Specification :
2700*2300*2800mm
Trademark :
DEMINA
Origin :
China
HS Code :
8460390000
Production Capacity :
50 Sets Peryear
MOQ :
1 Piece
Price :
US $90,000 / Piece
Description
Product Description

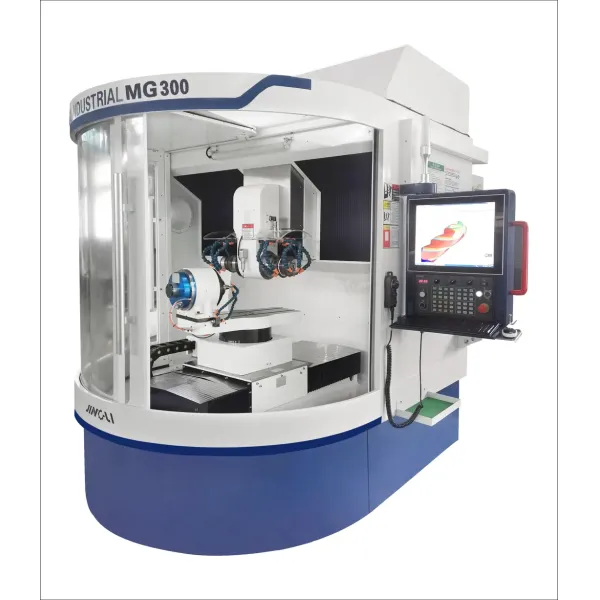

DM-300 CNC 5-axis tool grinding machine introduction is a CNC tool production machine developed for full grinding tools. The machine tool is a five-axis and five-link machine tool, in which the X ,Y ,Z is a linear servo shaft and the A , C two axes are rotating shafts. It is specialized in the production of standard milling cutters, drill bits, reamers, non-standard cutters, molding knives and other cutting tools, with low efficiency, high precision CNC tool production equipment. In high-speed steel, cemented carbide milling cutter manufacturing field has extraordinary advantages.
Features

1. can be equipped with advanced man-machine dialogue CNC system, not only G code programming, but also can use tool software. The system is safe, stable, convenient and resistant to electromagnetic interference. The program transmission between CNC and PC can be realized by Ethernet interface and USB2.0, and the productivity can be greatly improved by starting with the shortest processing lead time.
2. equipped with 3D simulation software, the necessary parameters of tool machining are displayed in the way of dialog box. After the parameters are input, the tool simulation can display the 3D graphics of tool and the grinding steps of machine tool. The anti-collision function of the software is used to avoid the collision in the actual process.

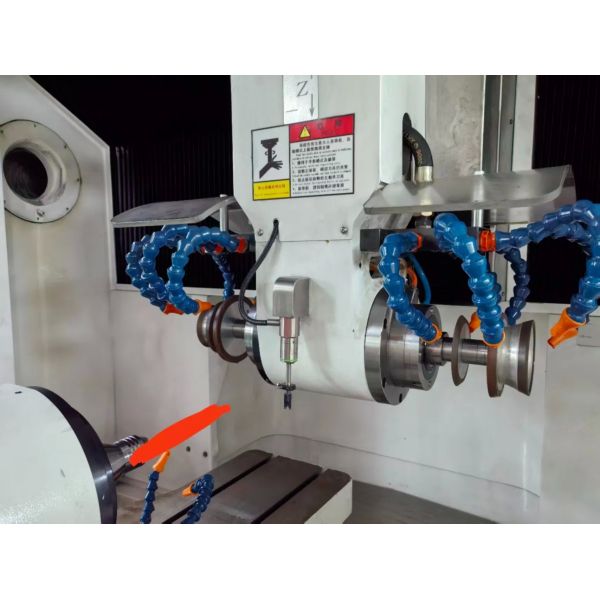

3. the corresponding software module can be used to process all kinds of cutting tools. By selecting and installing probes, the workpiece can be automatically measured and the tool wear can be compensated, that is, the tool can be produced and the tool can be milled.
4. heavy-duty design, high-power, gantry type closed structure, good rigidity, high strength, good stability.
5. original imported wire rod, guide rail, A shaft -C shaft and key parts to ensure high accuracy, high sensitivity and good stability.
6. rotary shaft with imported original product high-precision worm gear and worm, high smooth transmission accuracy.
7. can be installed with top and simple support points for long tool production.

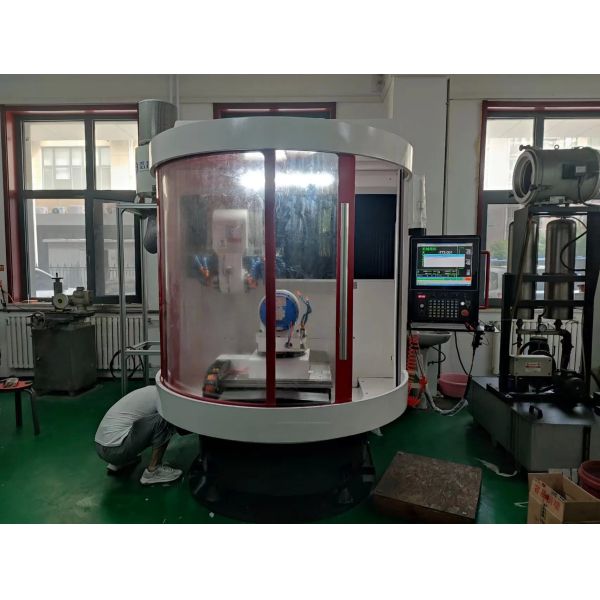

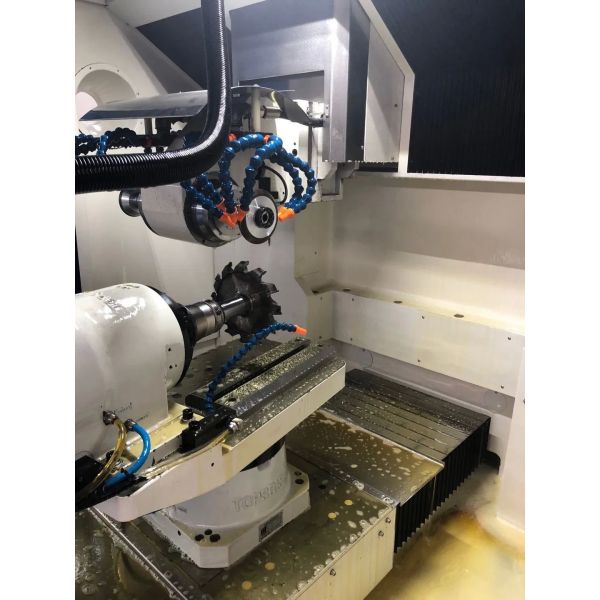

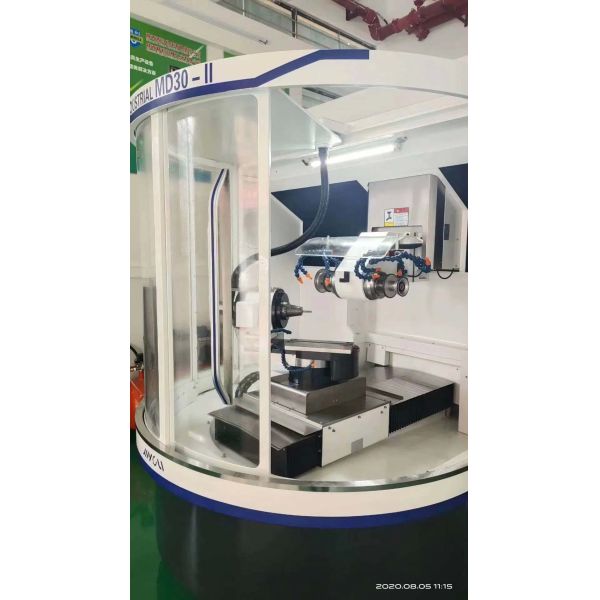

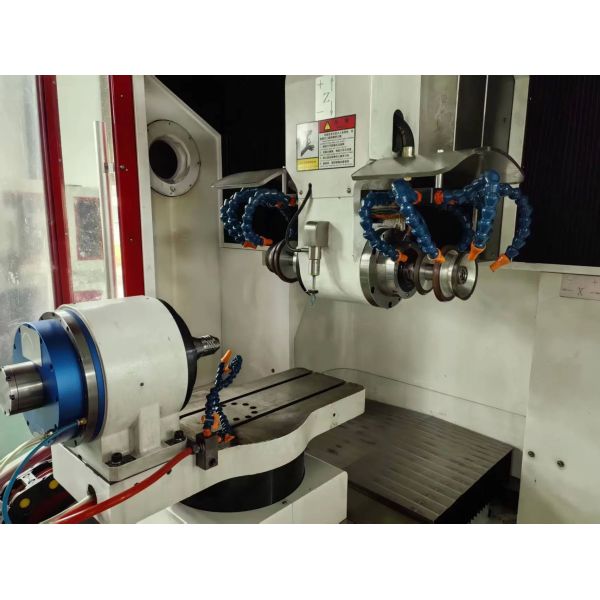

Detailed Photos


CNC 5-Axis Tool Grinding Machine IntroductionCNC 5-Axis Tool Grinding Machine IntroductionCNC 5-Axis Tool Grinding Machine Introduction
Core Applications

1. processing materials: high-speed steel, cemented carbide and stainless steel with the diameter of 3-32mm;

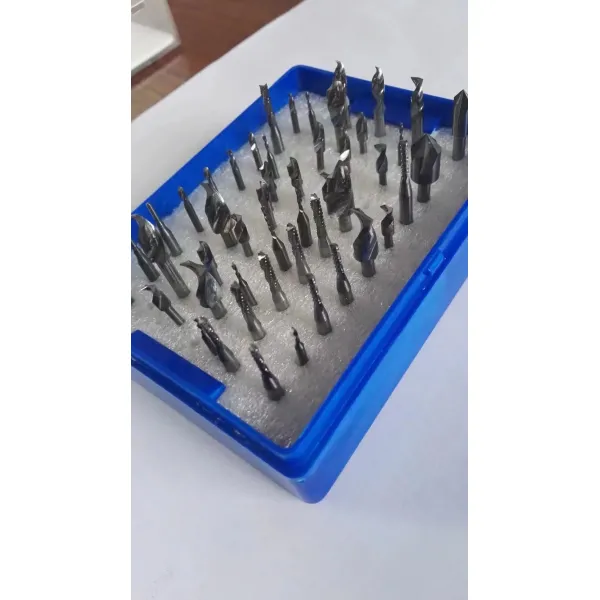

2. machinable tool category: milling cutter: cylindrical end tooth milling cutter, cylindrical end tooth milling cutter, cylindrical R milling cutter, conical end tooth milling cutter, conical end tooth milling cutter, multi-edge milling cutter, left and right spiral cutter, welding milling cutter, non-standard cutter, molding cutter, custom cutter.
3. bit, reamer: all kinds of left and right spiral blade, straight groove edge, standard, non- standard bit, reamer.
4. parts: five-axis grinding in product parts.
