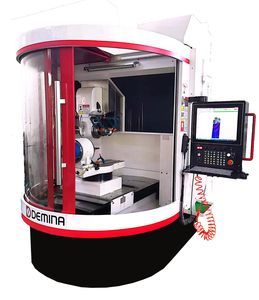

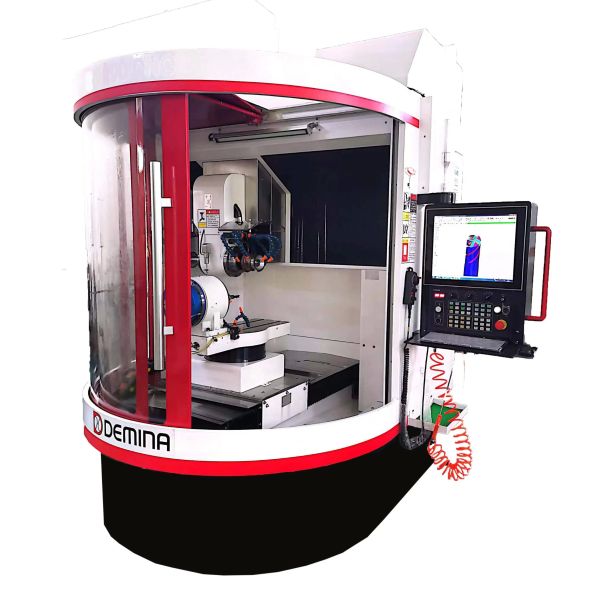

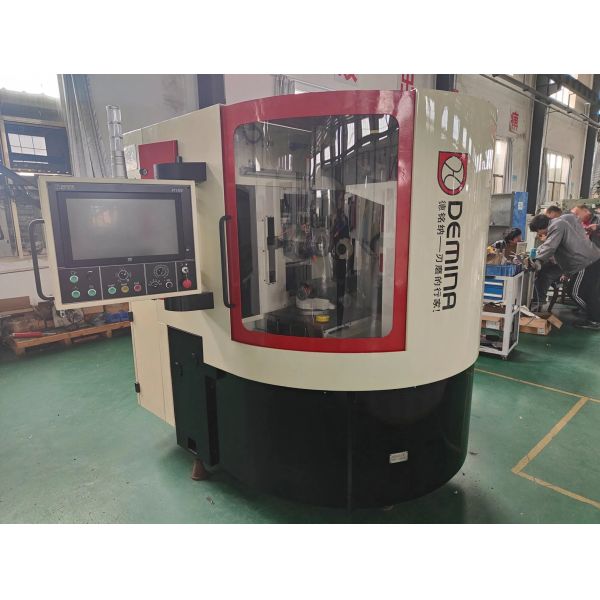

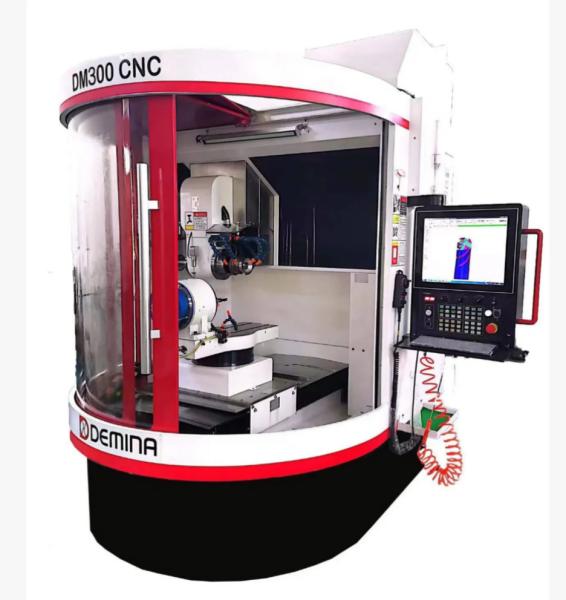

Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Dm300 5 Axis CNC Tool Grinder
Specifications
Certification :
ISO 9001
MOQ :
1 Piece
Brand Name :
DEMINA
Model Number :
DM-300
Place of Origin :
CHINA
Payment Terms :
T/T
Supply Ability :
50 SETS PER YEAR
Delivery Time :
60 DAYS
Packaging Details :
Pallet
Model NO. :
DM300
Type :
Tool Grinding Machine
Processing Object :
Carbirde Tools
Abrasives :
Grinding Wheel
Controlling Mode :
CNC
Automatic Grade :
Automatic
Cylindrical Grinder Type :
Cutting Tool Grinder
Precision :
High Precision
Condition :
New
Transport Package :
Pallet
Specification :
2500mm*2250mm*2500mm
Trademark :
DEMINA
Origin :
China
HS Code :
8460310000
Production Capacity :
50 Sets Peryear
Description

Description

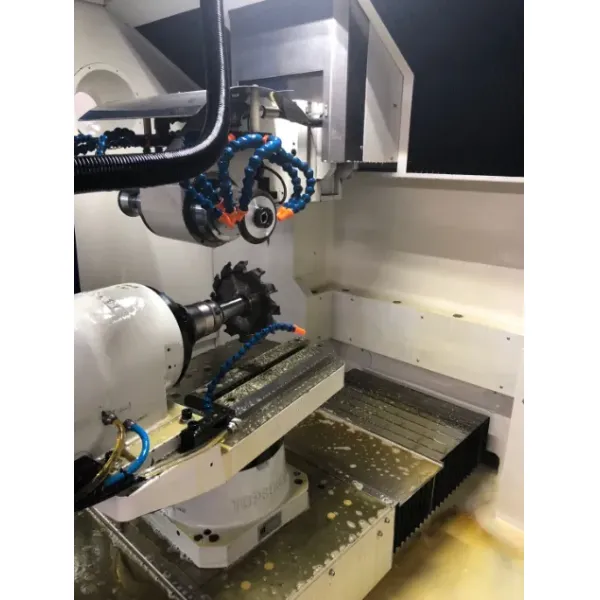

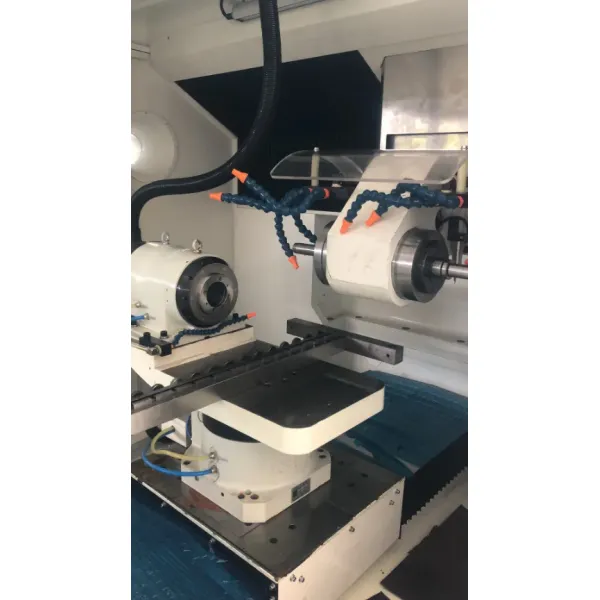

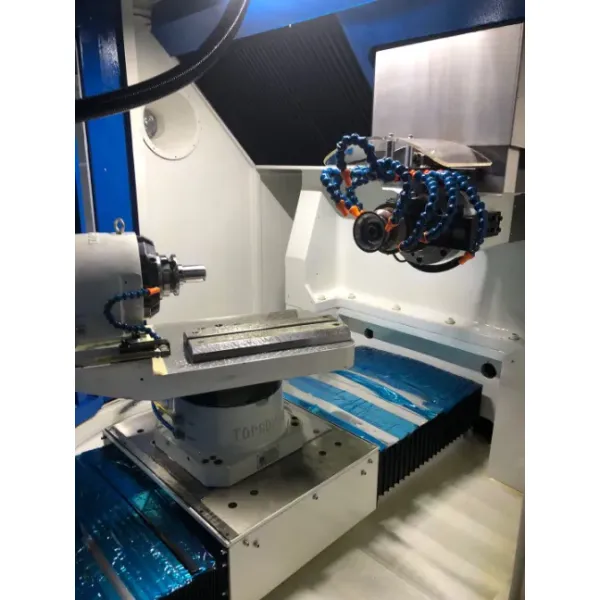

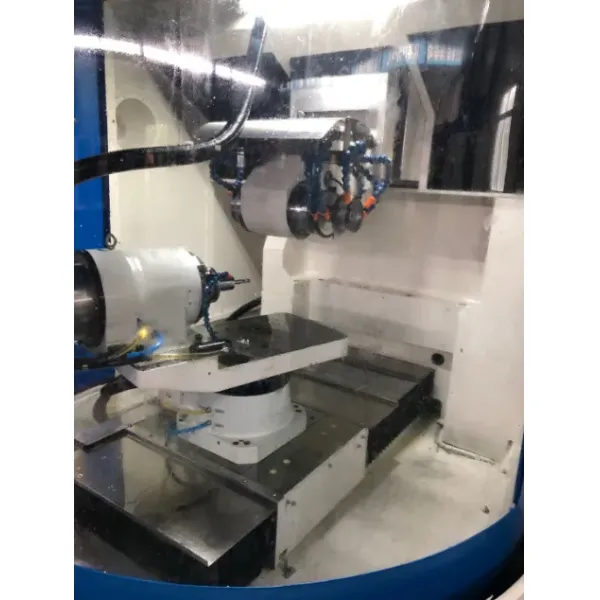

DM3 0 0 five- axis CNC tool grinder is a CNC tool production machine developed for full grinding tools. The machine tool is a five-axis and five-link machine tool, in which the X,Y,Z is a linear servo shaft and the A,C two axes are rotating shafts. With the application of GSYun, it is specialized in the production of standard milling cutters, drill bits, reamers, non- standard cutters, molding knives and other cutting tools, with low efficiency, high precision CNC tool production equipment. In high- speed steel, cemented carbide milling cutter manufacturing field has extraordinary advantages.


Main Parameters

Model

DM-300

X axis travel

950 mm

Y axis travel

520 mm

Z axis travel

280mm

A axis travel

Consecutive 3 6 0 °

C axis travel

220°

X axis positioning accuracy

0.005 mm

Y axis positioning accuracy

0.005mm

Z axi s positioning accuracy

0 005 mm

A axis positioning accuracy

0.005°

C axis positioning accuracy

0.005°

Repeat positioning accuracy

± 0. 002 mm

Minimum units

0.01°

Spindle rated power

1 8 KW; torque 3 0 NM; ( double

extension spindle)

Speed of main shaft

0- 10000 RPM/min

Number ofgrind wheels installed

6-8 pieces

Maximum wheel diameter

Φ150mm

Diameter of Grinding Wheel Rod

HSK50E

Taper ofworkpiece shank

BT50

Maximum grinding length

Blade length: 2 6 0 mm;

total Length: 3 0 0 mm

Minimum handle diameter

Φ3mm

Maximum workpiece shank diameter

Φ32mm

Maximum l ength o f workpiece

Φ200mm

Working pressure

0 6~0 8 MPa

Cooling fluid flow

85L/min

Total rated power of equipment

3 2 kw ( three- phase AC3 8 0 V)

Dimensions of equipment

2700*2300*2800

Total equipment weight

6000kg
