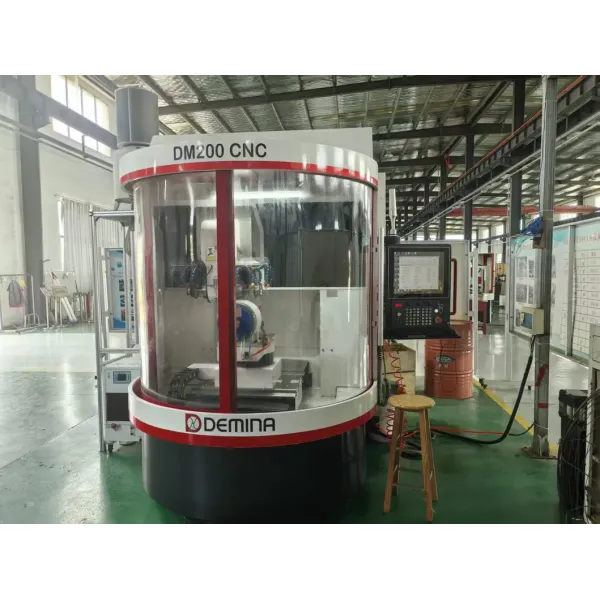

CNC Tool Grinding Machine Dm-200
CNC Tool Grinding Machine Dm-200
CNC Tool Grinding Machine Dm-200
CNC Tool Grinding Machine Dm-200
CNC Tool Grinding Machine Dm-200
CNC Tool Grinding Machine Dm-200
CNC Tool Grinding Machine Dm-200
CNC Tool Grinding Machine Dm-200
CNC Tool Grinding Machine Dm-200
CNC Tool Grinding Machine Dm-200
CNC Tool Grinding Machine Dm-200
CNC Tool Grinding Machine Dm-200
Specifications
Model NO. :
DM-200
Type :
Tool Grinding Machine
Processing Object :
Curve
Abrasives :
Grinding Wheel
Controlling Mode :
CNC
Automatic Grade :
Automatic
Cylindrical Grinder Type :
Universal Cylindrical Grinder
Precision :
High Precision
Certification :
CE, ISO 9001
Condition :
New
Transport Package :
Wooden Case
Specification :
2500mm*2250mm*2550mm
Trademark :
DEMINA
Origin :
China
HS Code :
8460390000
Production Capacity :
50 Sets Per Year
MOQ :
1 Piece
Price :
US $89,000 / Piece
Description
Product Description

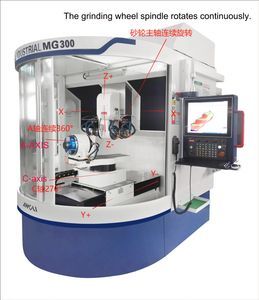

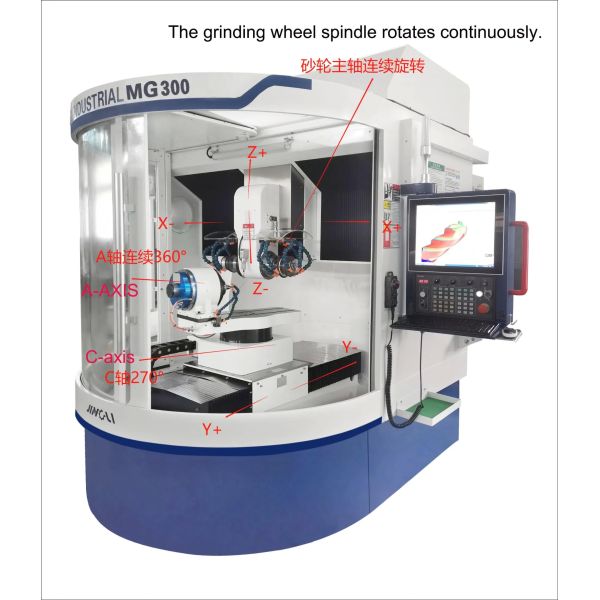

DM 200 five- axis CNC tool grinder is developed for tool production as well as resharpening. The machine tool is a iron casting based and rigid machine,in which the X ,Y ,Z is linear axis and the A ,C are rotating axis with the application of GSYun. It is specialized in the production of standard mills varied, drill bits, reamers, non- standard cutters, and other cutting tools, with high efficiency, high precision. In high- speed steel, cemented carbide tool manufacturing field it has extraordinary advantages.

Core Applications
  1. processing materials: high- speed steel, cemented carbide and stainless steel with the diameter of 3-20mm;
  2. Tool category: drill bit, reamer, tap and mill, include square and radius conner and ball nose. conicala mill, conical end mill, peofile cutter.
Product Parameters
Model DM-200
1 X axis travel 800mm
2 Y axis travel 400mm
3 Z axis travel 220mm
4 A axis travel Consecutive 3 6 0 °
5 C axis travel 220°
6 X axis positioning accuracy 0.005mm
7 Y axis positioning accuracy 0.005mm
8 Z axis positioning accuracy 0 005mm
9 A axis positioning accuracy 0.005°
10 C axis positioning accuracy 0.005°
11 Repeat positioning accuracy ± 0 . 00 2 mm
12 Minimum units 0.01°
13 Spindle rated power 1 2 KW; torque 2 0 NM; ( doubl e extension spindle)
14 Speed of main shaft 0 - 8000 RPM/min
15 Number ofgrind wheels installed 6-8 pieces
16 Maximum wheel diameter Φ150mm
17 Diameter of Grinding Wheel Rod HSK5 0 E
18 Taper ofworkpiece shank BT50
19 Maximum grinding length Blade length: 1 6 0 mm;
total Length: 2 0 0 mm
20 Minimum handle diameter Φ3mm
21 Maximum workpiece shank diameter Φ20mm
22 Maximum l ength of workpiece Φ200mm
23 Working pressure 0 6~0 8 MPa
24 Cooling fluid flow 85L/min
25 Total rated power of equipment 22 kw ( three- phase
AC3 8 0 V)
26 Total equipment weight 5000 kg

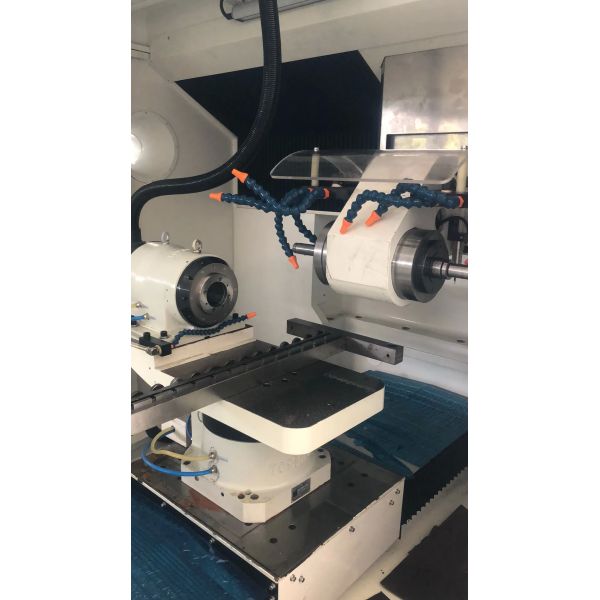

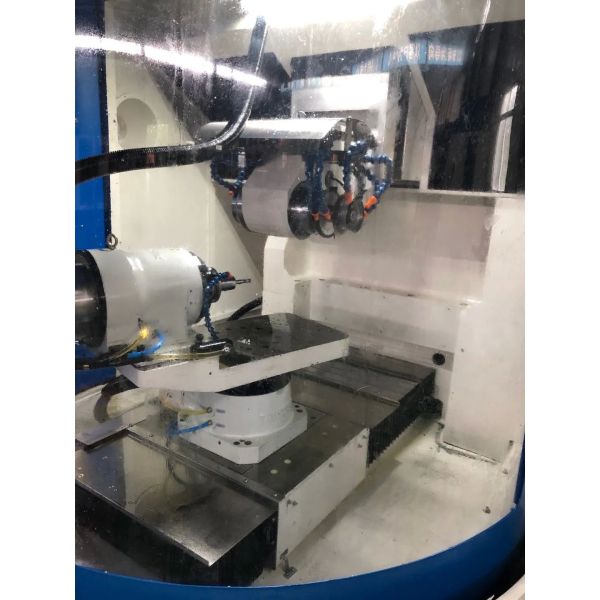

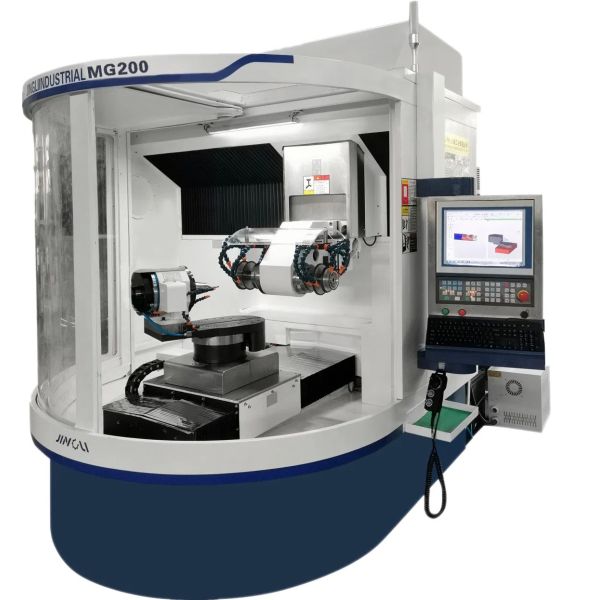

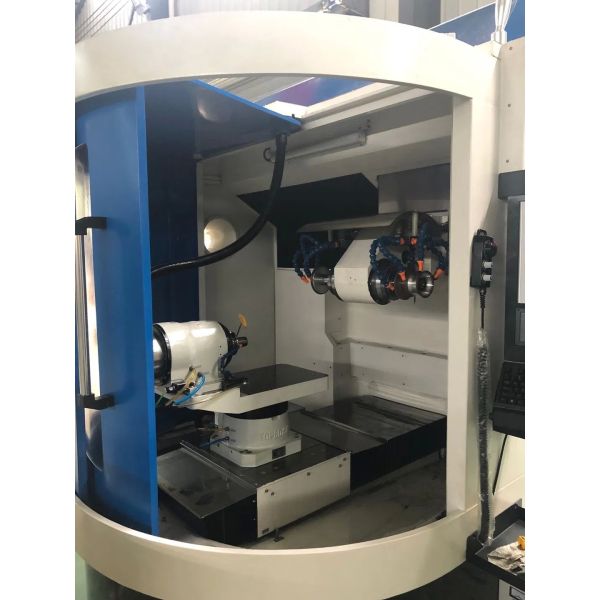

Detailed Photos

CNC Tool Grinding Machine Dm-200CNC Tool Grinding Machine Dm-200CNC Tool Grinding Machine Dm-200CNC Tool Grinding Machine Dm-200CNC Tool Grinding Machine Dm-200
